Merlo Turbofarmer P34.7, P38.10 Plus, Top Service Manual Set with Diagrams (German)
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Merlo Turbofarmer P34.7, P38.10 Plus, Top Service Manual Set with Diagrams (German) – digital service manual (825 pages in 38 PDF files, language: German, format: PDF, delivered as a ZIP archive). The files are available to download after purchase; nothing is shipped.
Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.

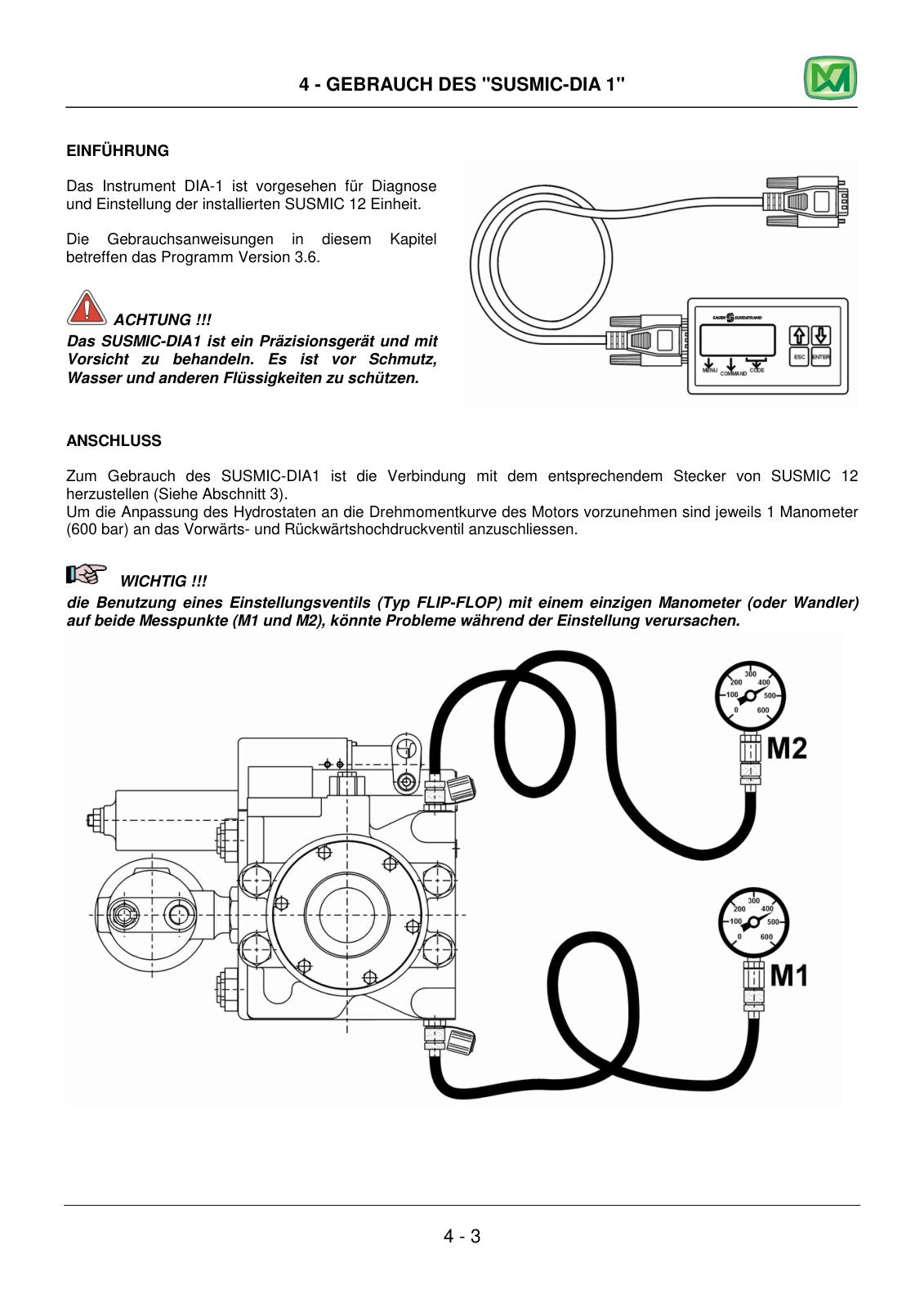

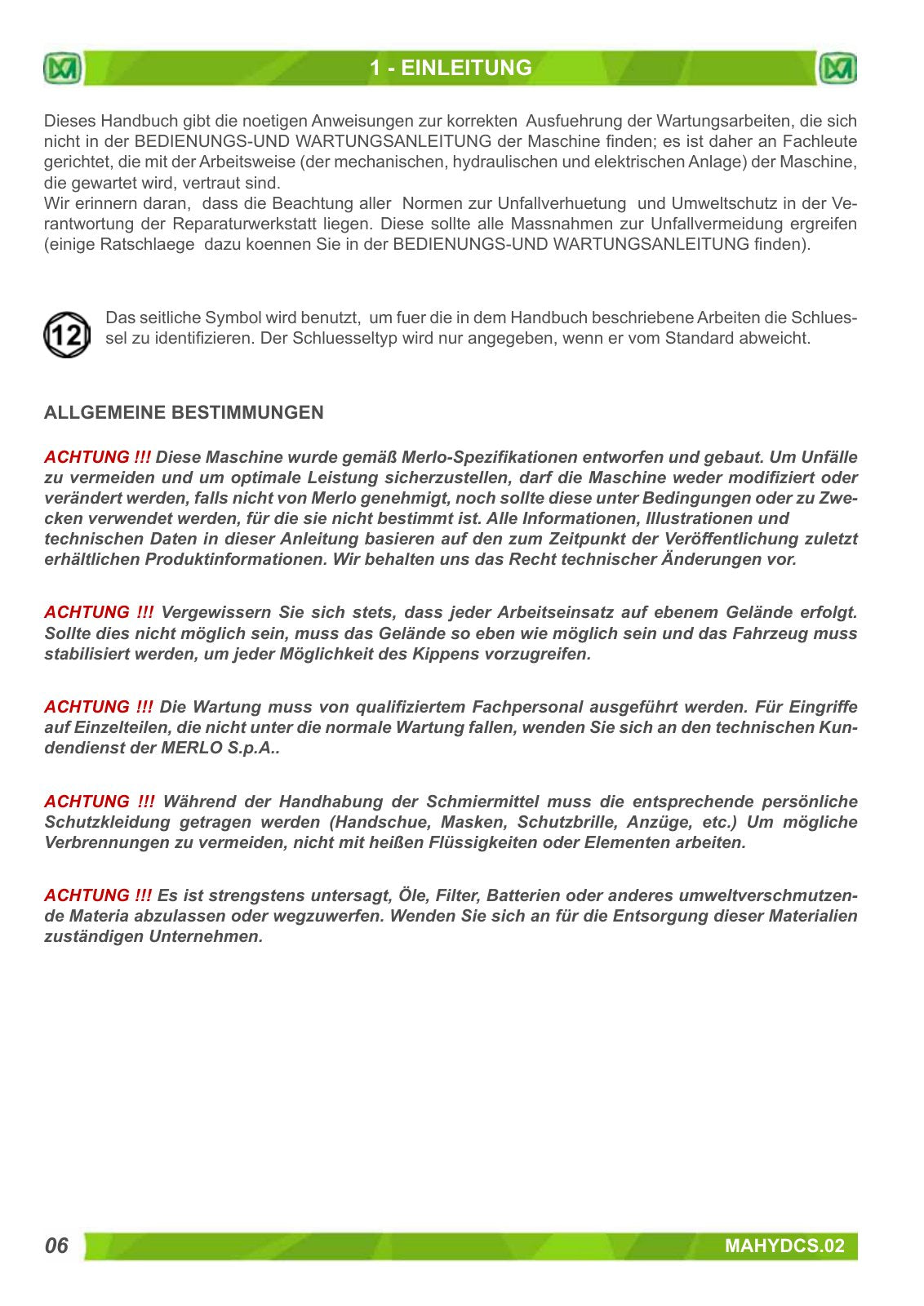

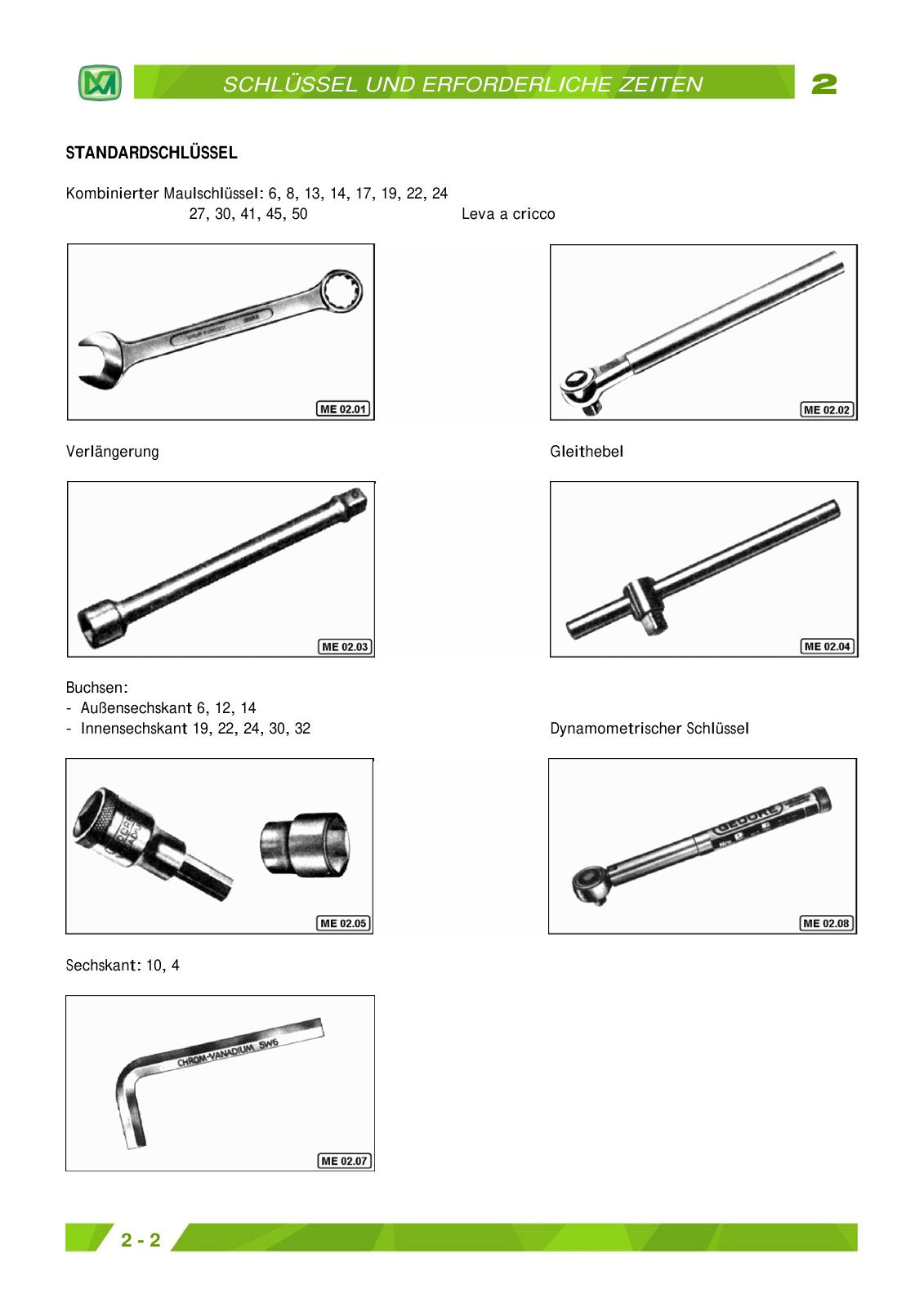

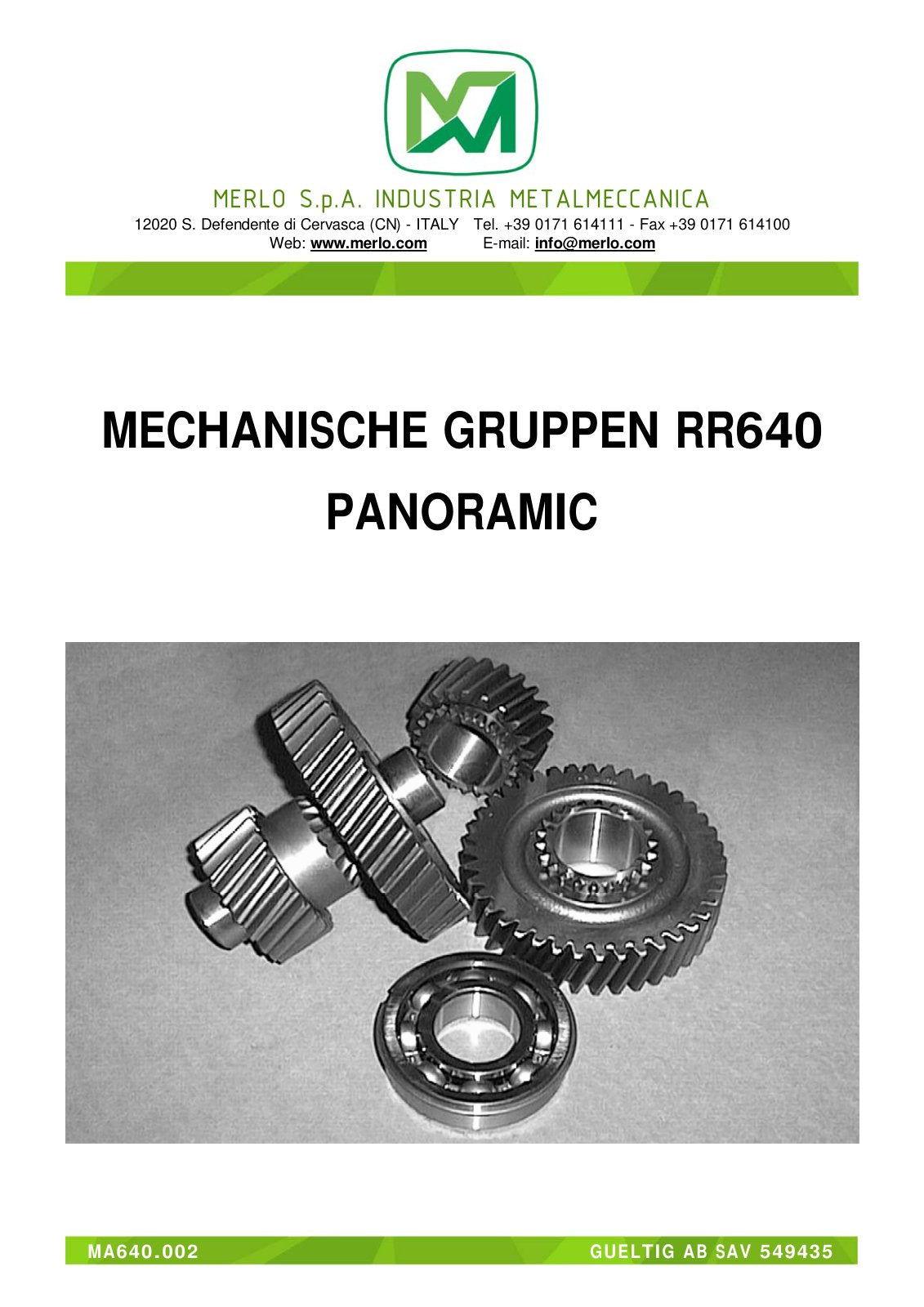

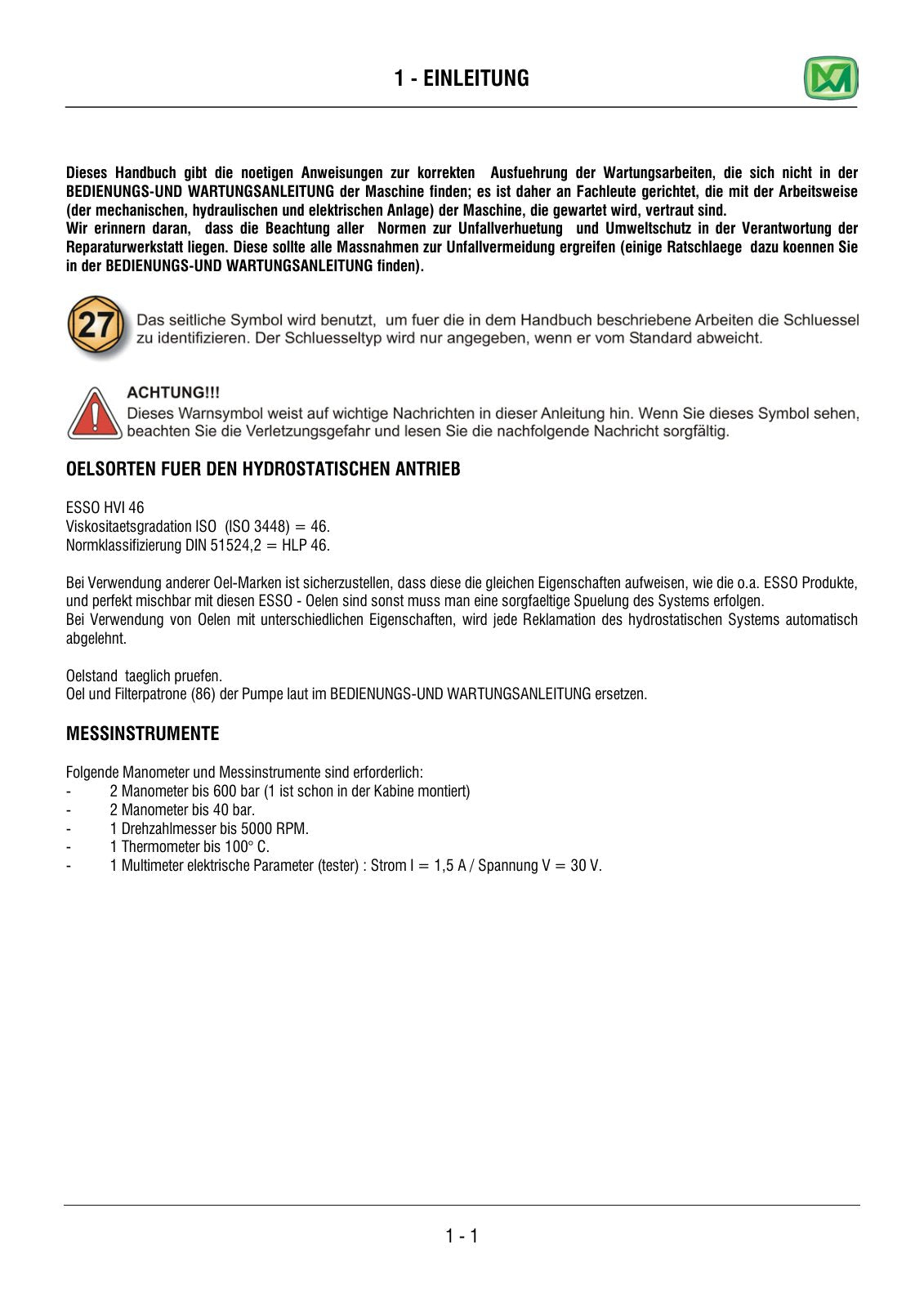

Merlo service documentation set in German for the Turbofarmer P34.7, P34.10, P37.10, P38.10, P40.7, P41.7 Plus / Top (before the CIT range): Turbofarmer electrical system, Tecnord servo control, joystick, Sauer and SOTG hydrostatic drive, flow-sharing and load-sensing hydraulics, Bucher HDS34 control valve, E.A.S. suspension, 7 m and 10 m booms and driveline, functional wiring diagrams 2005–2011 and hydraulic schematics. Supplied as a ZIP archive with the original Merlo documents arranged by topic (operation, electrics, drive, hydraulics, mechanics).
Models covered: Merlo Turbofarmer P34.7, P34.10, P37.10, P38.10, P40.7, P41.7 Plus / Top / CS
Contents
- Miscellaneous: Anleitung Austausch Roller KIT 104325(D1WWTE11IE) (2 pages)
- Miscellaneous: BSS Schwingungsdaempfung Teleskopausleger (12 pages)
- Miscellaneous: Fahrbetriebunterbrechung ueber Sitzkontakt (2 pages)
- Miscellaneous: Fahrtrichtungsschalter Joystick Turbofarmer (1 pages)

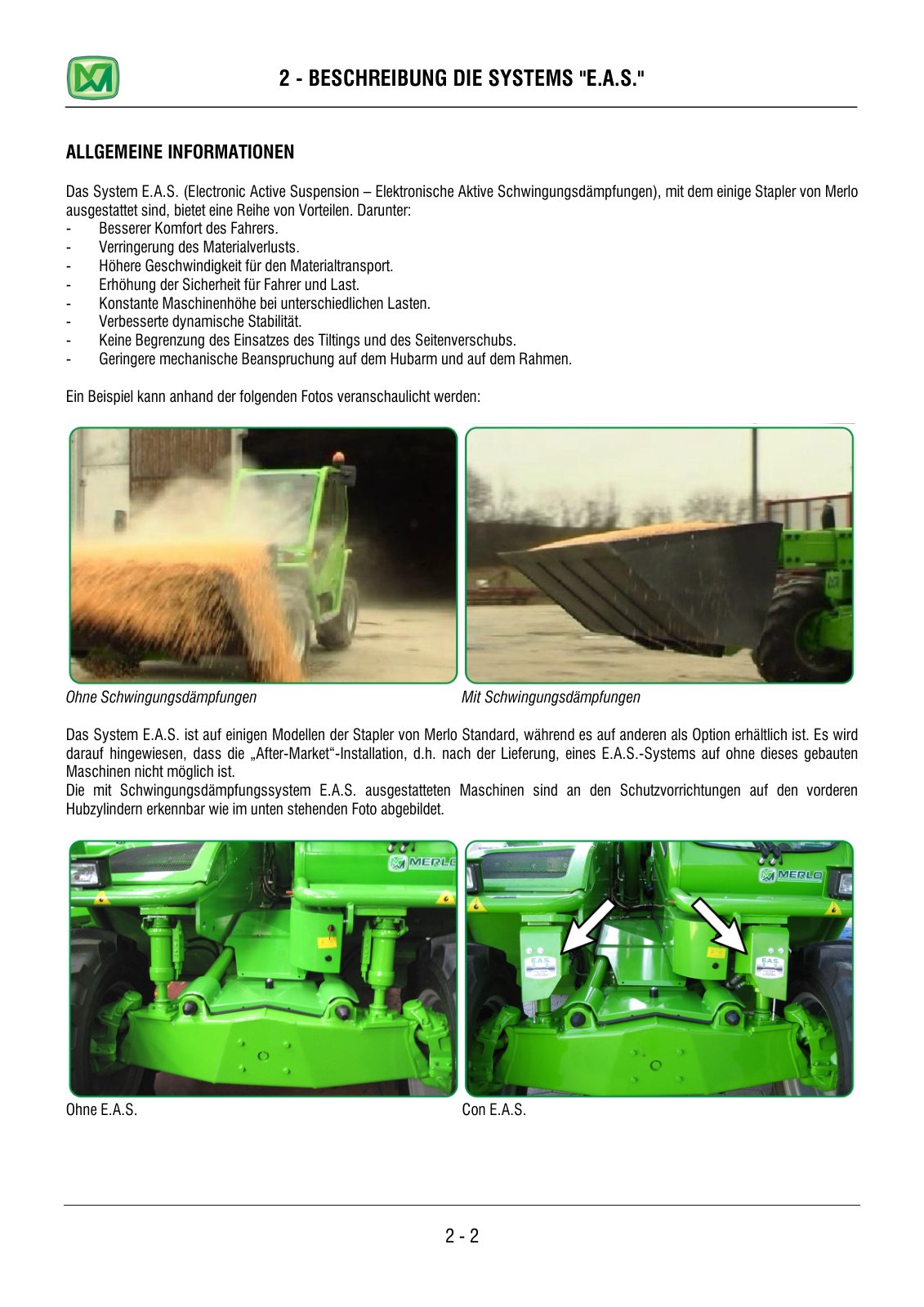

- Miscellaneous: Vorderachsfederung E.A.S. (MASOEAS-01) (47 pages)
- Miscellaneous: 054795 Relaiskasten Klimaanlage (35736 3) (1 pages)
- Electrical: Elektrische Anlage Servosteuerung Tecnord (SERVOTECNORD) (5 pages)
- Electrical: Elektrische Anlage Turbofarmer (14 pages)
- Electrical: Elektromechanischer Joystick (SISTJOY-04) (23 pages)
- Electrical schematic: Elektrofunktionsschema Buehne Turbofarmer (1 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2005 (37387E 3A) (21 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2005 (DE) (22 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2007 (37387E 3C) (22 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2008 (37387E 3E) (22 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2009 (37387 3F) (25 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2010 (37387 3G) (25 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2010 (37387 3I EN15000) (25 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2010 (37387 3I EN15000 DEUTSCH) (25 pages)
- Electrical schematic: Elektrofunktionsschema Turbofarmer 2011 (37387 3M - P34) (26 pages)
- Electrical: Fahrantrieb Sauer Elektrik (MAELSAU-02) (37 pages)
- Drive / transmission: Fahrantrieb Sauer Hydraulik (MAIDSAU-03N) (54 pages)
- Electrical: Fahrantrieb Sauer SOTG Elektrik (MASUS52-01) (30 pages)
- Drive / transmission: Fahrantrieb Sauer SOTG Systemerklaerung (SOTG) (22 pages)
- Hydraulics: Hydraulikschema P34.7TOP-34.10TOP -P40.7 ab SAV B837438 (2 pages)
- Hydraulics: Hydraulikschema P38.10-P41.7-TOP ab SAV B837438 (4 pages)
- Hydraulics: Hydraulikschema P40.7 - P37.10 CS (1 pages)
- Hydraulics: Hydraulikschemen Turbofarmer (17 pages)
- Hydraulics: Hydrostatschema P40.7 - P37.10 CS (1 pages)
- Hydraulics: Hydraulische Anlage Flow Sharing (MAFLOSH-03) (44 pages)
- … and 9 more documents
DETAILS
Size: 133 MB
Format: PDF; a ZIP archive
Language: German
Brand: Merlo
number of pages:825
Type of document: Service Manual
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
