Merlo Turbofarmer CIT P34.7, P38.10 Plus, Top Service Manual Set (from S/N C112138, German)

Name: Merlo Turbofarmer CIT P34.7, P38.10 Plus, Top Service Manual Set (from S/N C112138, German)
Brand: Merlo
SKU: MER-TVE698FQF
Price: 80.0 EUR
Availability: InStock

€80,00 EUR

Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product variants

Quantity

I agree to the Terms of Service.

Product description

Merlo Turbofarmer CIT P34.7, P38.10 Plus, Top Service Manual Set (from S/N C112138, German) – digital service manual (1901 pages in 42 PDF files, language: German (some documents in English), format: PDF, delivered as a ZIP archive). The files are available to download after purchase; nothing is shipped.

Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.

Merlo service documentation set in German for the Turbofarmer CIT 2011 range (P34.7, P36.7, P36.10, P37.10, P38.10, P40.7, P41.7 Plus / Top) from serial number C112138: CDC load control electrics (software 1.0, 2.3 and 3.0), Sauer S1X drive with fault codes and parameters, Bucher HDS34 load-sensing hydraulics, telescopic booms and driveline, functional wiring diagrams 2011–2013, hydraulic schematics and the Deutz TCD 2012 engine workshop manuals and EMR3 fault list. Supplied as a ZIP archive with the original Merlo documents arranged by topic (operation, electrics, drive, hydraulics, mechanics).

Models covered: Merlo Turbofarmer P34.7, P36.7, P36.10, P37.10, P38.10, P40.7, P41.7 Plus / Top (CIT, S/N C112138 and up)

Contents

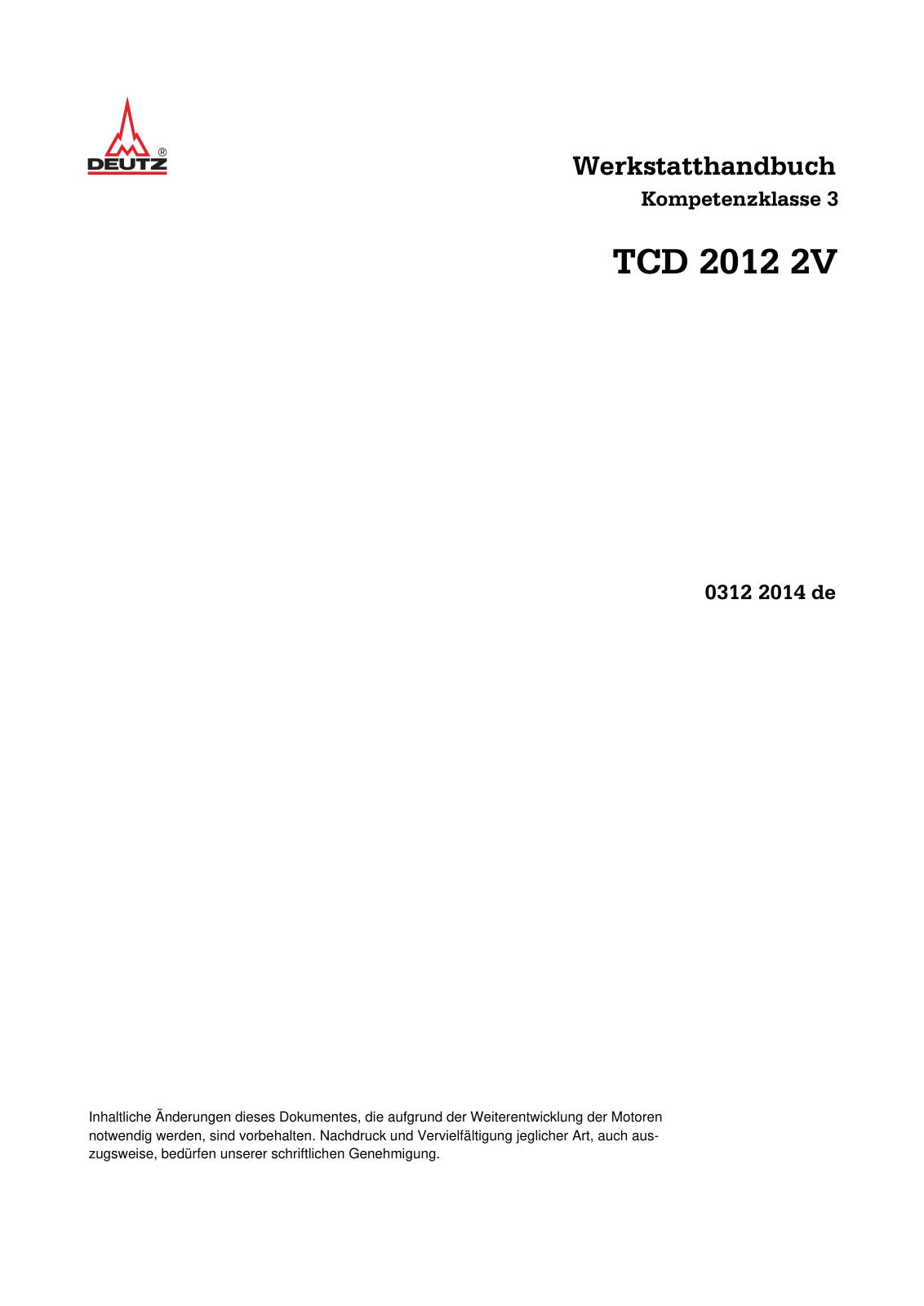

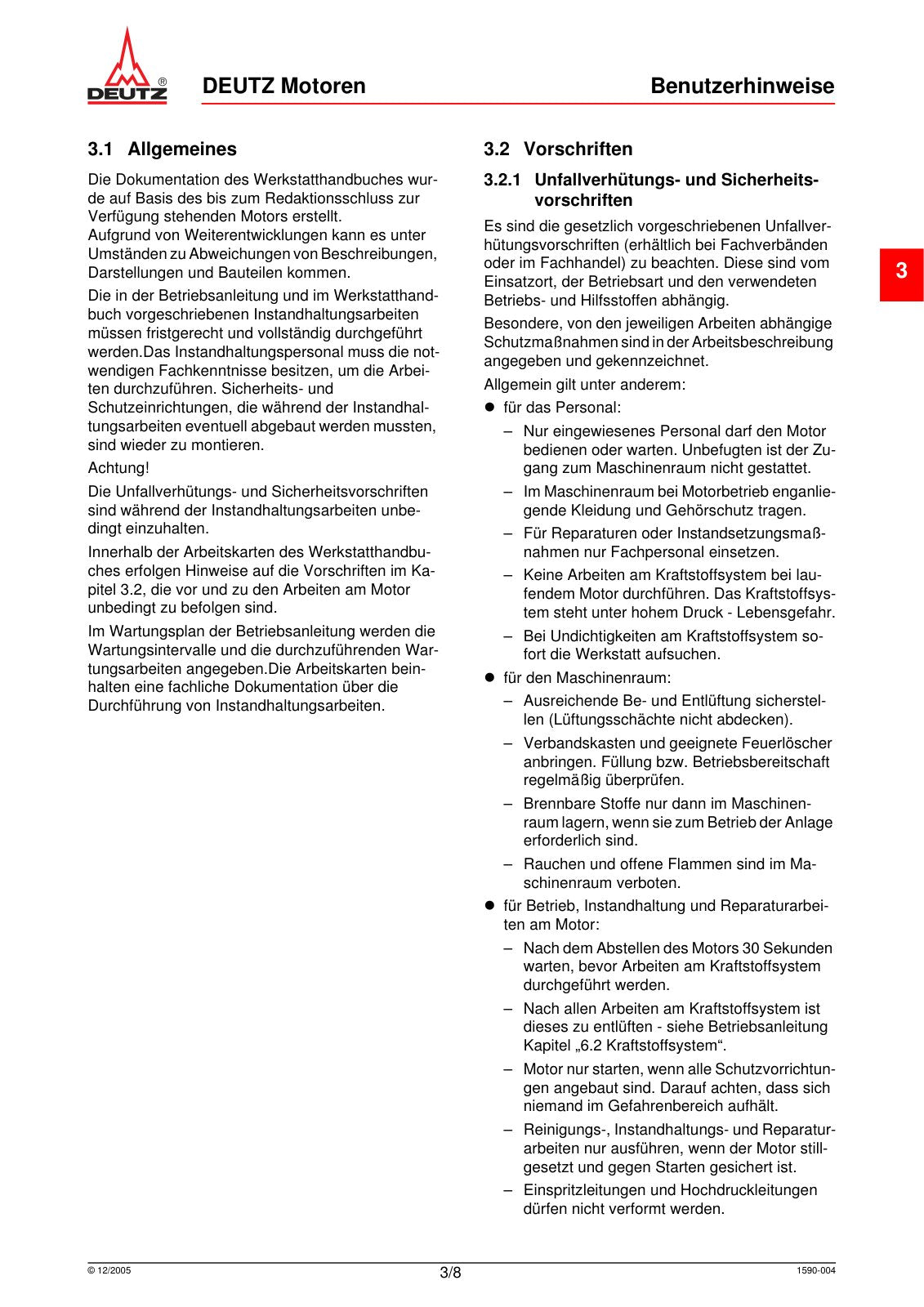

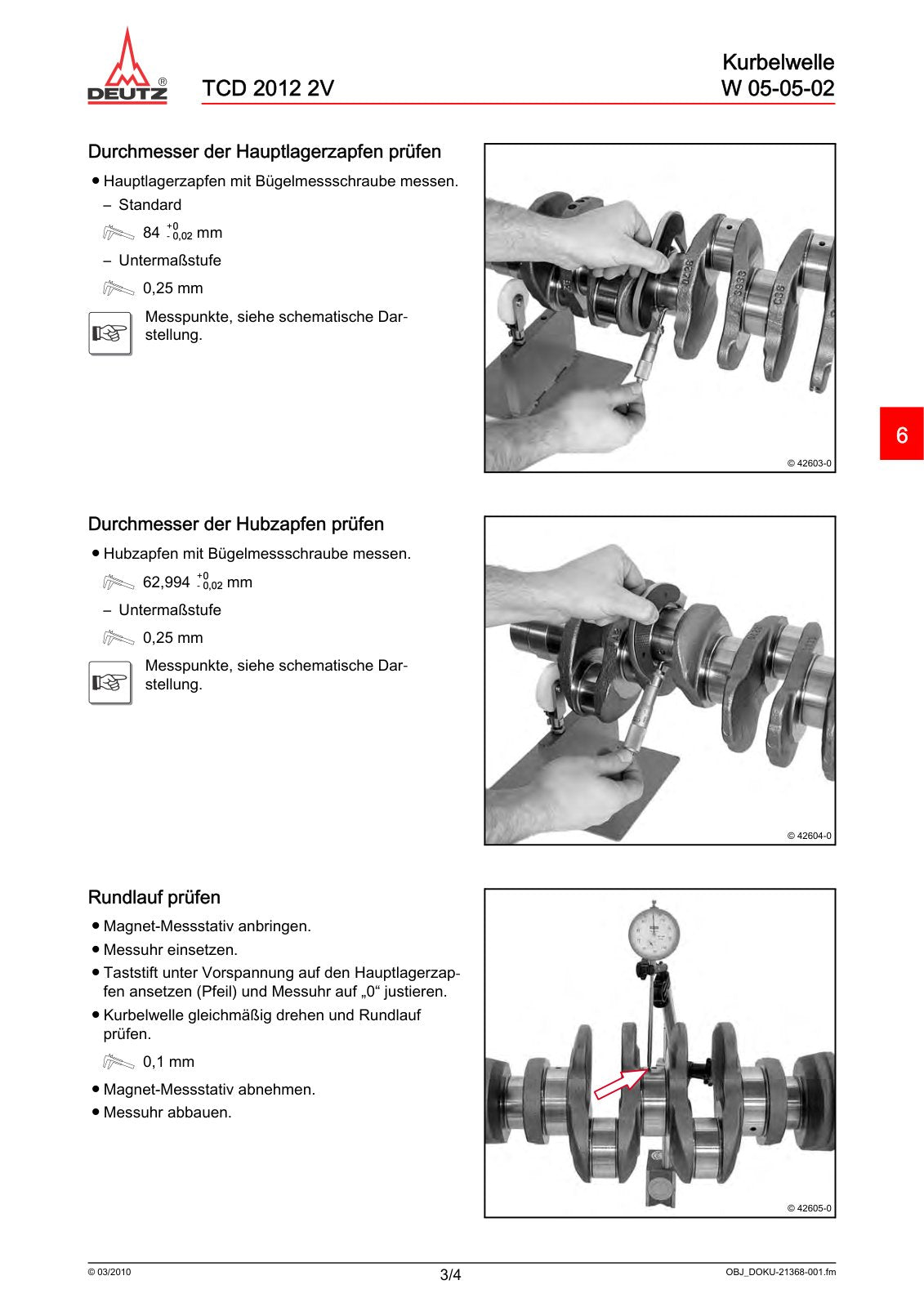

Operator's manual: BA DEUTZ TCD 2012 L04 2V 2009 (80 pages)
Miscellaneous: Anleitung Austausch Roller KIT 104325(D1WWTE11IE) (2 pages)
Miscellaneous: Anschluss Kamera an CDC-Display ohne Originalkabel (2 pages)
Electrical: CDC UGS Grenzwerte Längen- und Winkelmesser (3 pages)

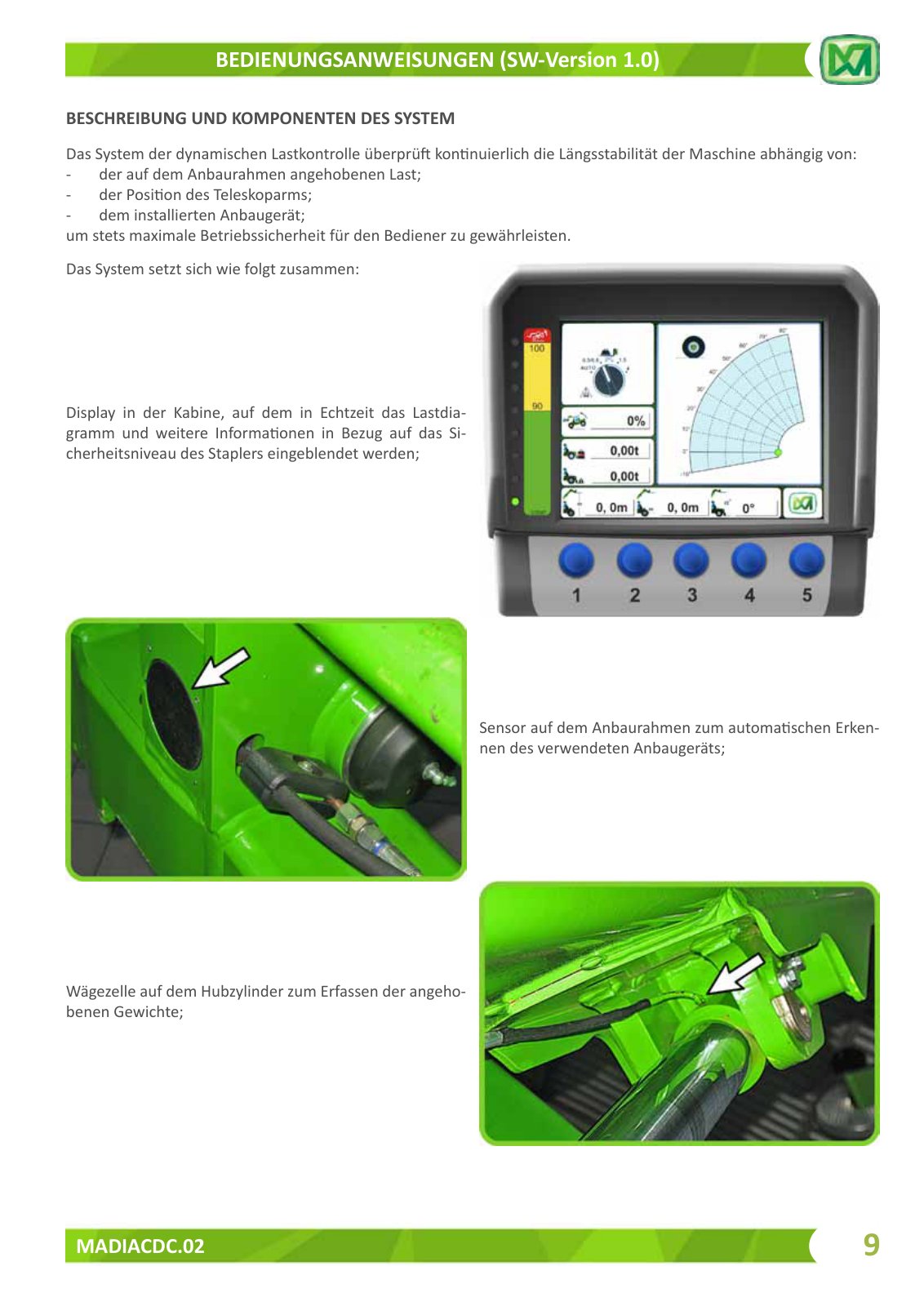

Electrical: Elektrische Anlage CDC Lastkontrolle ab SW Version 1.0 (MADIACDC.02) (117 pages)
Electrical: Elektrische Anlage CDC Lastkontrolle ab SW Version 2.3 (MADIACDC.02) (65 pages)
Electrical: Elektrische Anlage CDC Lastkontrolle ab SW Version 3.0 (TF-CDC.01) (62 pages)
Electrical: Elektromechanischer Joystick (SISTJOY-04) (23 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT 2011 (51730-3 DEUTSCH) (36 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT 2011 (51730-3) (37 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT+CDC 2012 (51730 3B) (39 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT+CDC 2012 (51730 3C) DEUTSCH (47 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT+CDC 2012 (51730 3C) (47 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT+CDC 2013 (51730 3D - TF + P32 CIT&CDC) (48 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT+CDC 2013 (51730 3E - TF + P32 CIT&CDC) (48 pages)
Electrical schematic: Elektrofunktionsschema Turbofarmer CIT+CDC 2013 (51730 3F) (48 pages)
Drive / transmission: Fahrantrieb SAUER S1X (MAN-S1X.04) (60 pages)
Drive / transmission: S1X Fehlermeldungen (1 pages)
Drive / transmission: S1X MACHINE SPEED (5 pages)
Drive / transmission: S1X Motordrückung (2 pages)
Drive / transmission: S1X Parameter Pumpe und Motor (4 pages)
Drive / transmission: S1X-46 Graphic Interface Extended NFPE Control UM 09-2008 C (120 pages)
Hydraulics: Hydraulikschema Hubarmfederung TF 2012 (55447 2) (1 pages)
Hydraulics: Hydraulikschema P36.7 - P41.7 TOP ab SAV C202134 (PAN36-41-01) (2 pages)
Hydraulics: Hydraulikschema P36.7-36.10PLUS ab SAV C112138 (2 pages)
Hydraulics: Hydraulikschema P36.7TOP-P36.10TOP-P38.10-P41.7 ab SAV C112138 (2 pages)
Hydraulics: Hydraulikschema P37.10-P40.7 ab SAV C112138 (2 pages)
Hydraulics: Hydraulikschema P38.10 CIT (2 pages)
Hydraulics: Hydraulikschema P40.7CS CDC (53028 2b) (1 pages)
… and 13 more documents

DETAILS
Size: 223 MB
Format: PDF; a ZIP archive
Language: German (some documents in English)
Brand: Merlo
number of pages:1901
Type of document: Service Manual

Before you buy

Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
