Merlo Treemme MM350X Service & Maintenance Manual, Parts Manual, Hydraulic & Electrical Diagrams
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Merlo Treemme MM350X Service & Maintenance Manual, Parts Manual, Hydraulic & Electrical Diagrams – digital service manual (2239 pages in 31 PDF files, language: German (some documents in English), format: PDF, delivered as a RAR archive (open with 7-Zip or WinRAR)). The files are available to download after purchase; nothing is shipped.
Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.
Merlo Treemme service documentation for the MM350X multi-purpose tracked carrier: operator and maintenance manual, parts lists (S/N C531A01 and C750A01), Deutz TCD 7.8 L6 operator manual, parts list and EMR4 fault codes, DANA Spicer axle service and parts, AHWI mulcher parts, Sauer PLUS1 hydrostatic drive, wiring diagrams, fuse and relay assignment and hydraulic schematics. Supplied as a RAR archive.
Models covered: Merlo Treemme MM350X
Contents
- APL-3072 - Drive Axle 223-066 Service Parts list - Treemme 112310 (VA) (26 pages)
- APL-3073 - Drive Axle 223-067 Service Parts list - Treemme 112210 (HA) (28 pages)

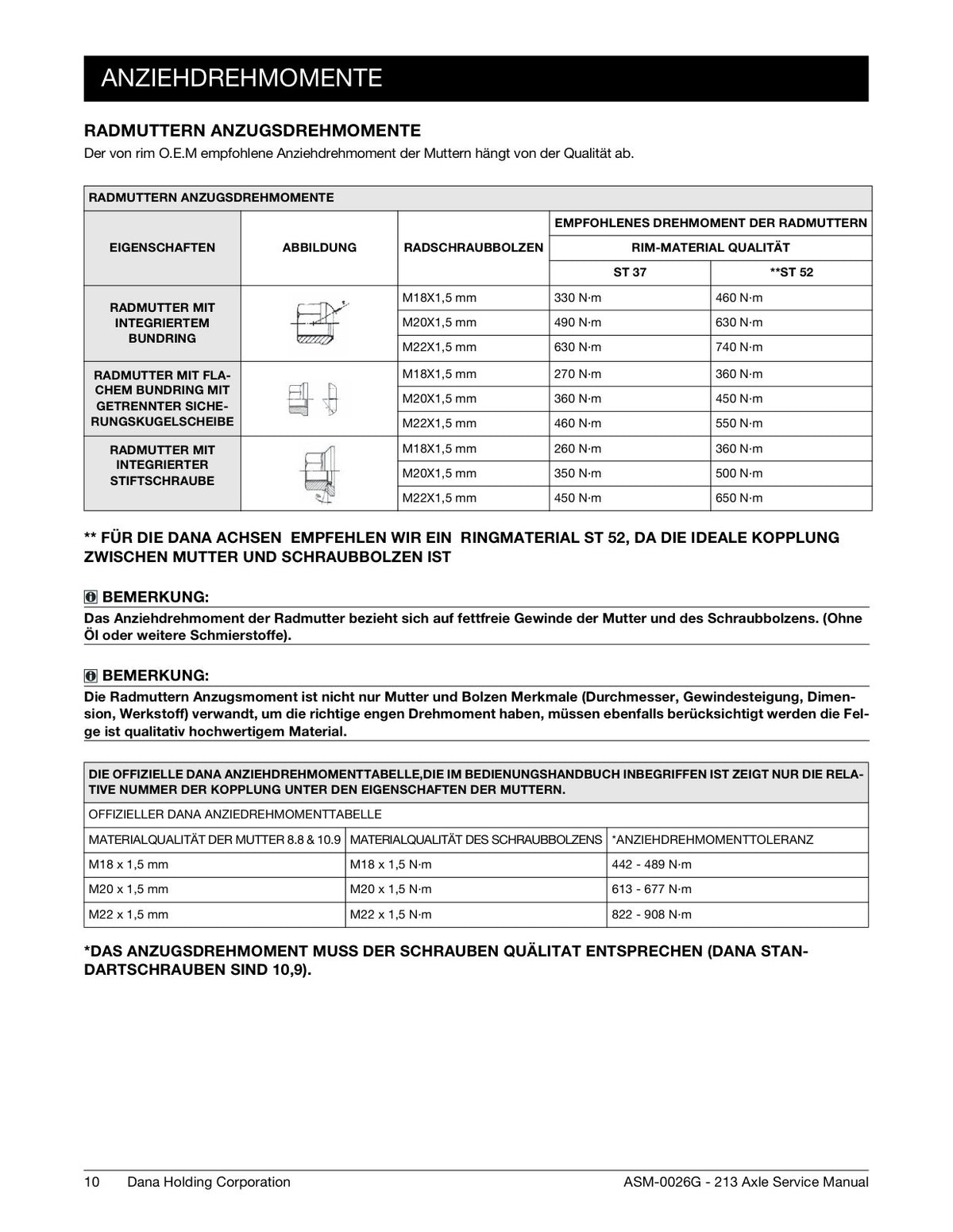

- Service Anleitung DANA SPICER Achse 213 (128 pages)

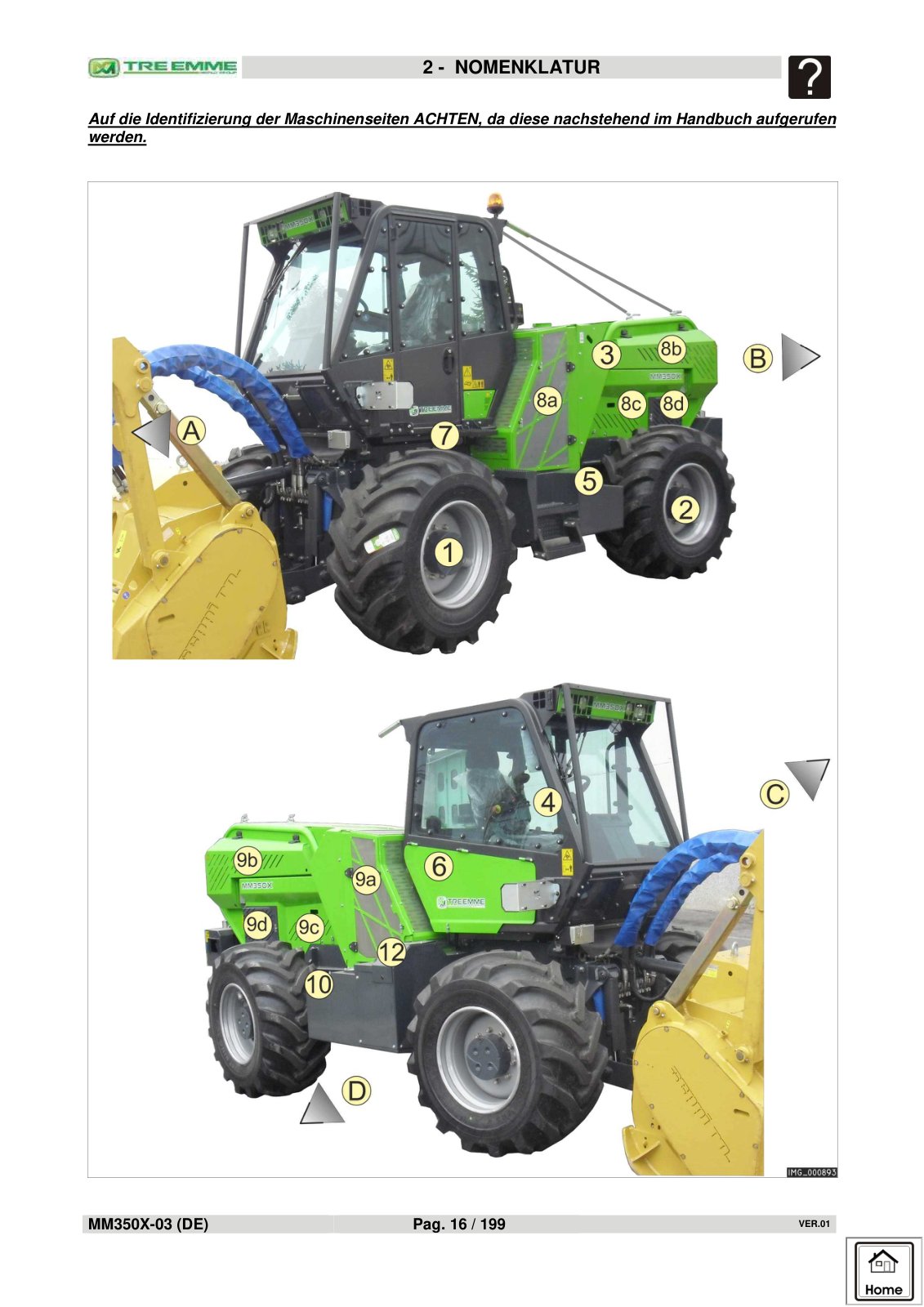

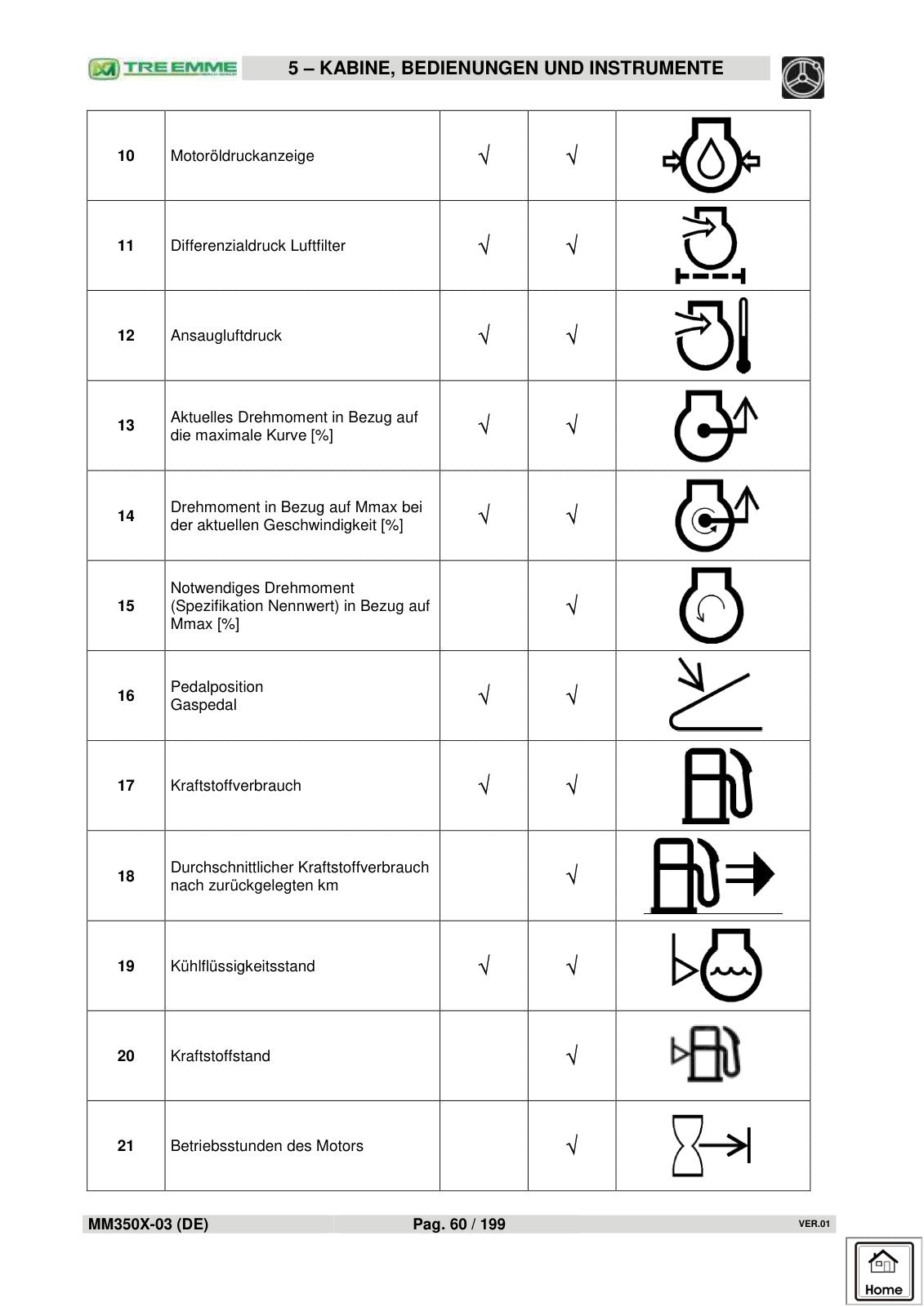

- Operator's manual: Bedienungs- und Wartungsanleitung MM350X (MM350X-01 DE) (198 pages)
- Parts: Ersatzteilliste MM350X SAV C531A01 (116 pages)
- Deutz Motor Info Display (03121998) (49 pages)
- Electrical schematic: Elektrofunktionsschema MM350X (X09987 3) (20 pages)
- Drive / transmission: Hydraulikschema Fahrantrieb MM350 PLUS1 (X07284 2) (1 pages)
- Hydraulics: Hydraulikschema Servicehydraulik MM350X (64446 2) (1 pages)
- Hydraulics: Hydraulikschema Werkzeugantrieb MM350X (64447 2) (1 pages)
- Drive / transmission: Hydrostatischer Fahrantrieb Typ Sauer mit Steuerung PLUS-1 (MANPLUS1.01) (54 pages)
- Klimaanlage 80817227-2 ITA-ING (24 pages)
- Drive / transmission: Sauer PLUS1 Fahrantrieb (MANPLUS1.02) (58 pages)
- Sicherungs- und Relaisbelegung MM350X-01 (4 pages)
- Betriebsanleitung DEUTZ TCD 7.8 L6 (DE 03123789) (80 pages)
- DEUTZ Trouble Code List EMR4 10.02.2015 (59 pages)
- Parts: Ersatzteilliste DEUTZ TCD 7.8 L6 (03123795) (88 pages)

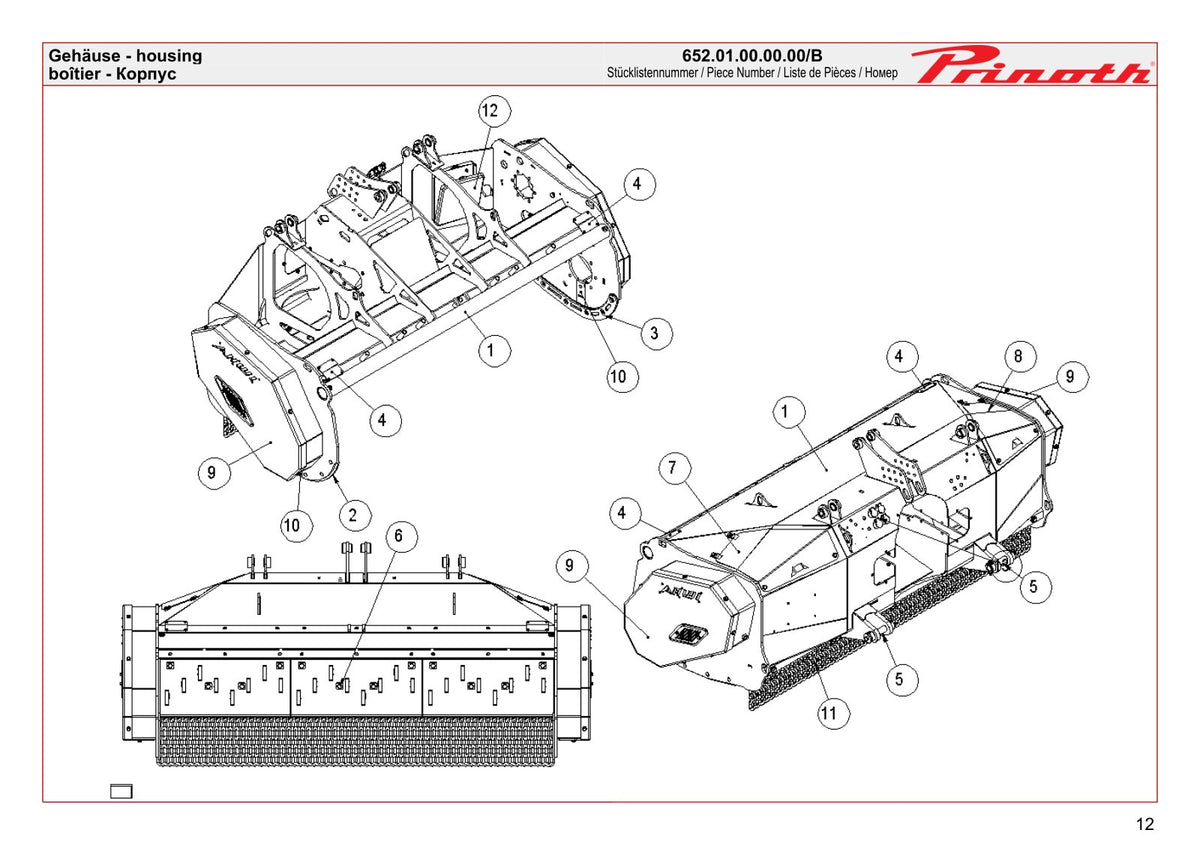

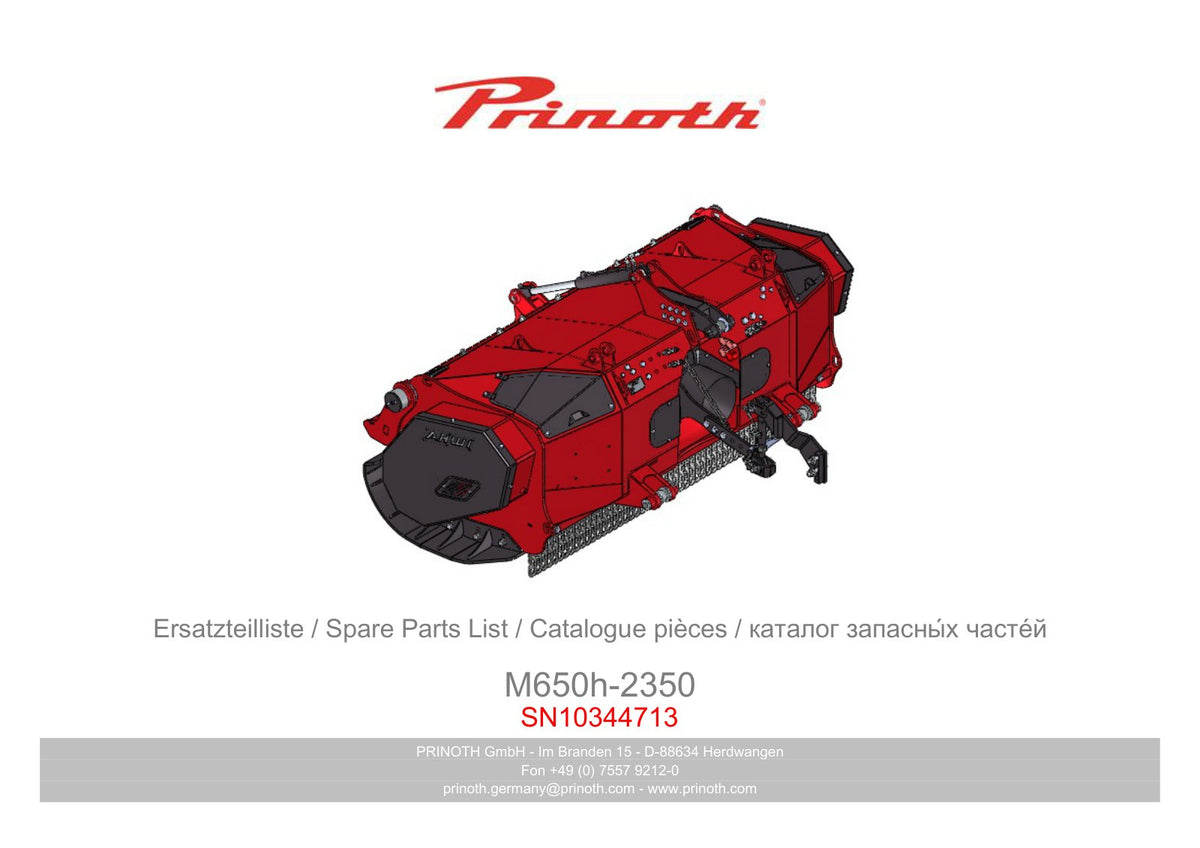

- Parts: Ersatzteilliste AHWI M650H-2350 (652.00.00.04.00) (162 pages)
- Operating Service and Maintenance Manual VIME EPH 100 122 EN 14492 Uk (49 pages)
- Operator's manual: Bedienungs- und Wartungsanleitung MM350X (MM350X-01 DE) (202 pages)
- Parts: Ersatzteilliste MM350X SAV C750A01 (136 pages)
- Electrical schematic: Elektrofunktionsschema MM350X (x10988 3a) (20 pages)
- Getriebe 2-Gang (MREVGBOX.04) (102 pages)

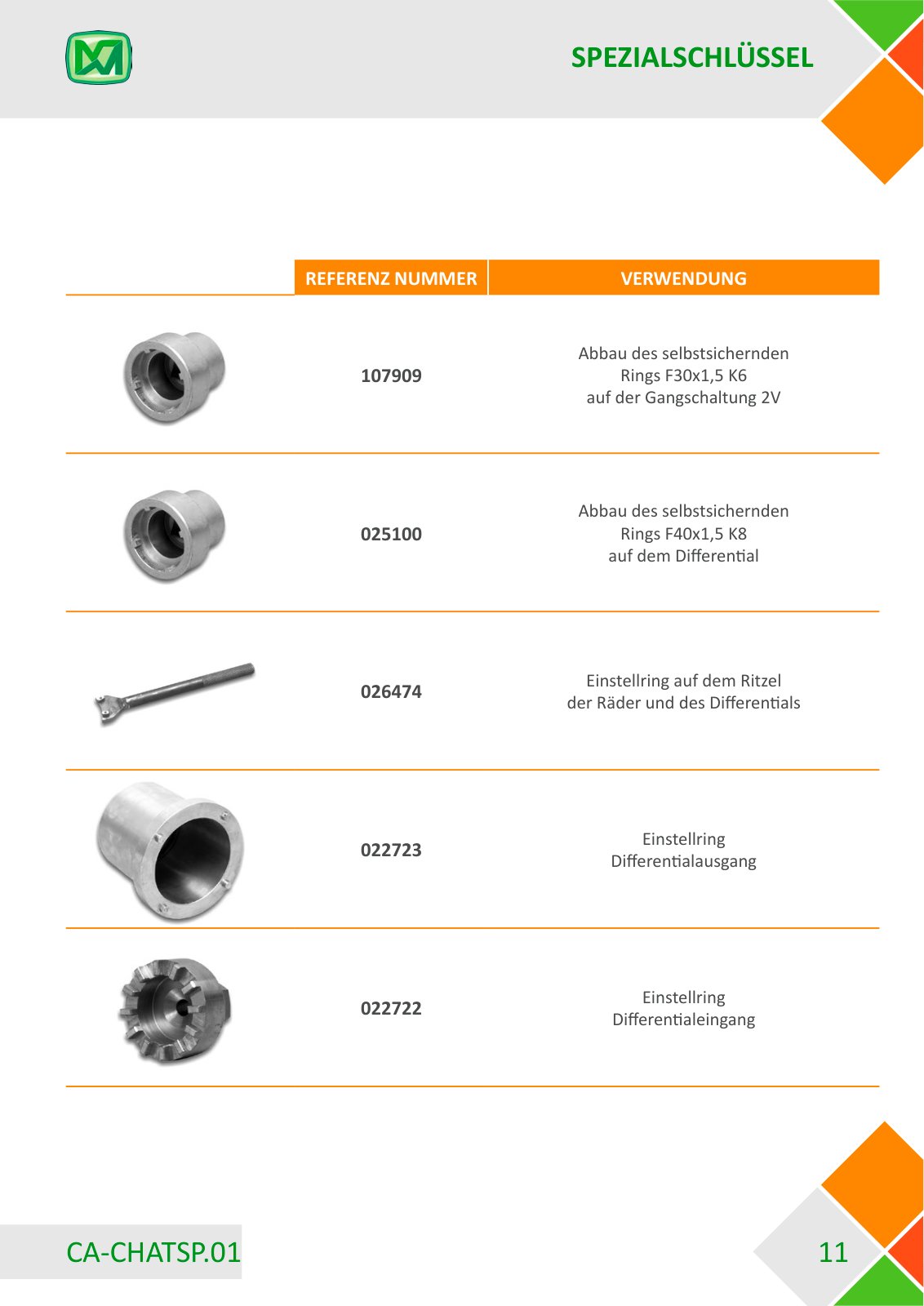

- Katalog Spezialwerkzeuge (CA-CHATSP.01) (106 pages)
