Merlo Roto SM 600° R45.19, R45.21 Service Manual Set with Diagrams (German)

Name: Merlo Roto SM 600° R45.19, R45.21 Service Manual Set with Diagrams (German)
Brand: Merlo
SKU: MER-24CY9G862
Price: 90.0 EUR
Availability: InStock

€90,00 EUR

Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product variants

Quantity

I agree to the Terms of Service.

Product description

Merlo Roto SM 600° R45.19, R45.21 Service Manual Set with Diagrams (German) – digital service manual (1790 pages in 31 PDF files, language: German (some documents in English), format: PDF, delivered as a ZIP archive). The files are available to download after purchase; nothing is shipped.

Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.

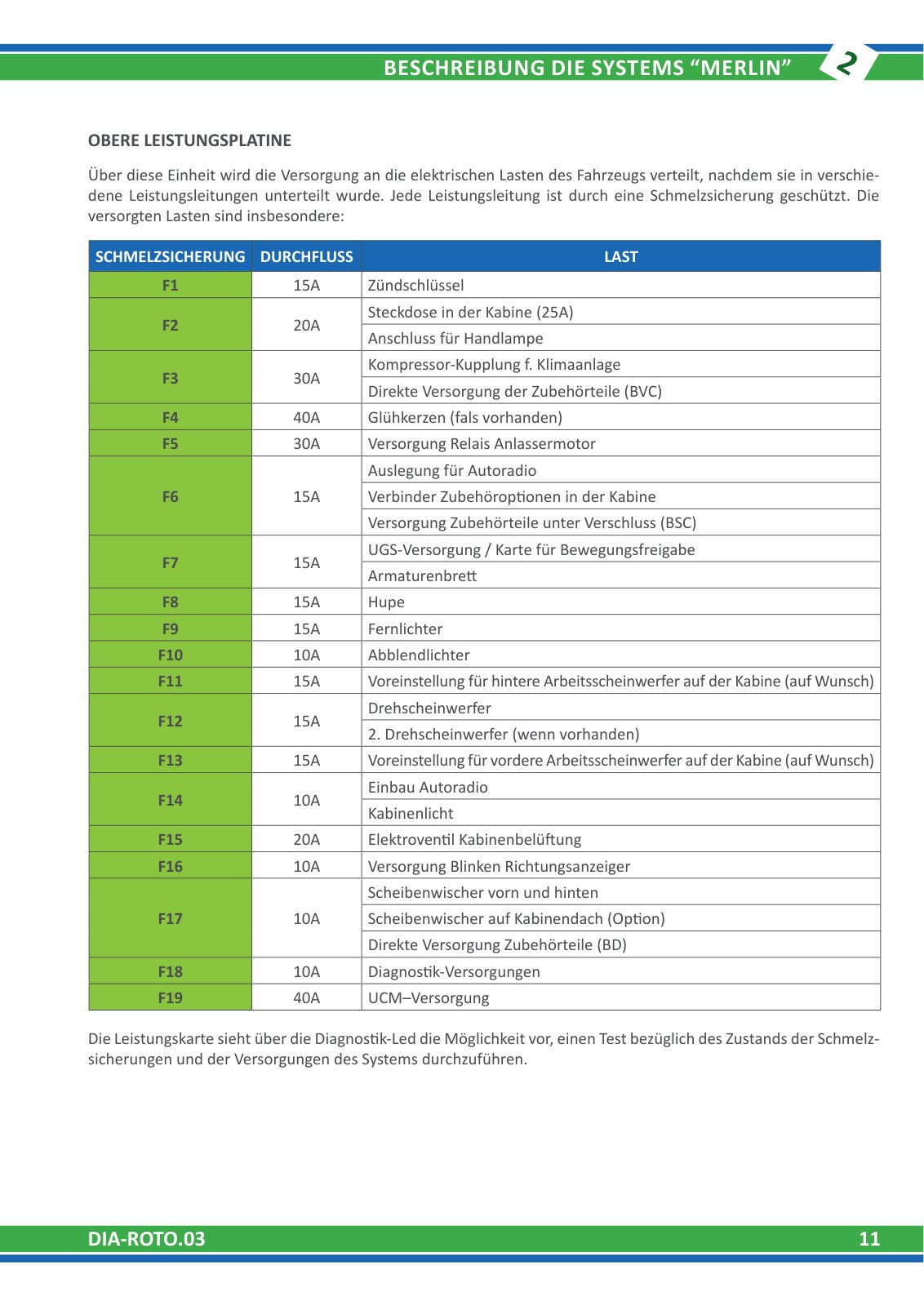

Merlo service documentation set in German for the Roto SM 600° rotating telehandlers R45.19 and R45.21: operator and maintenance manuals for two serial ranges, MERlin diagnostics and fault code list for Roto SM / SM 400°, microswitches before and after S/N C037142, radio remote control, Tecnord servo control, Rexroth drive with UCTI control and HydraTecno software, load-sensing hydraulics, outriggers and levelling, driveline, slew gear and boom with cables and wiring diagrams 2008–2017. Supplied as a ZIP archive with the original Merlo documents arranged by topic (operation, electrics, drive, hydraulics, mechanics).

Models covered: Merlo Roto R45.19 SM, R45.21 SM (600°)

Contents

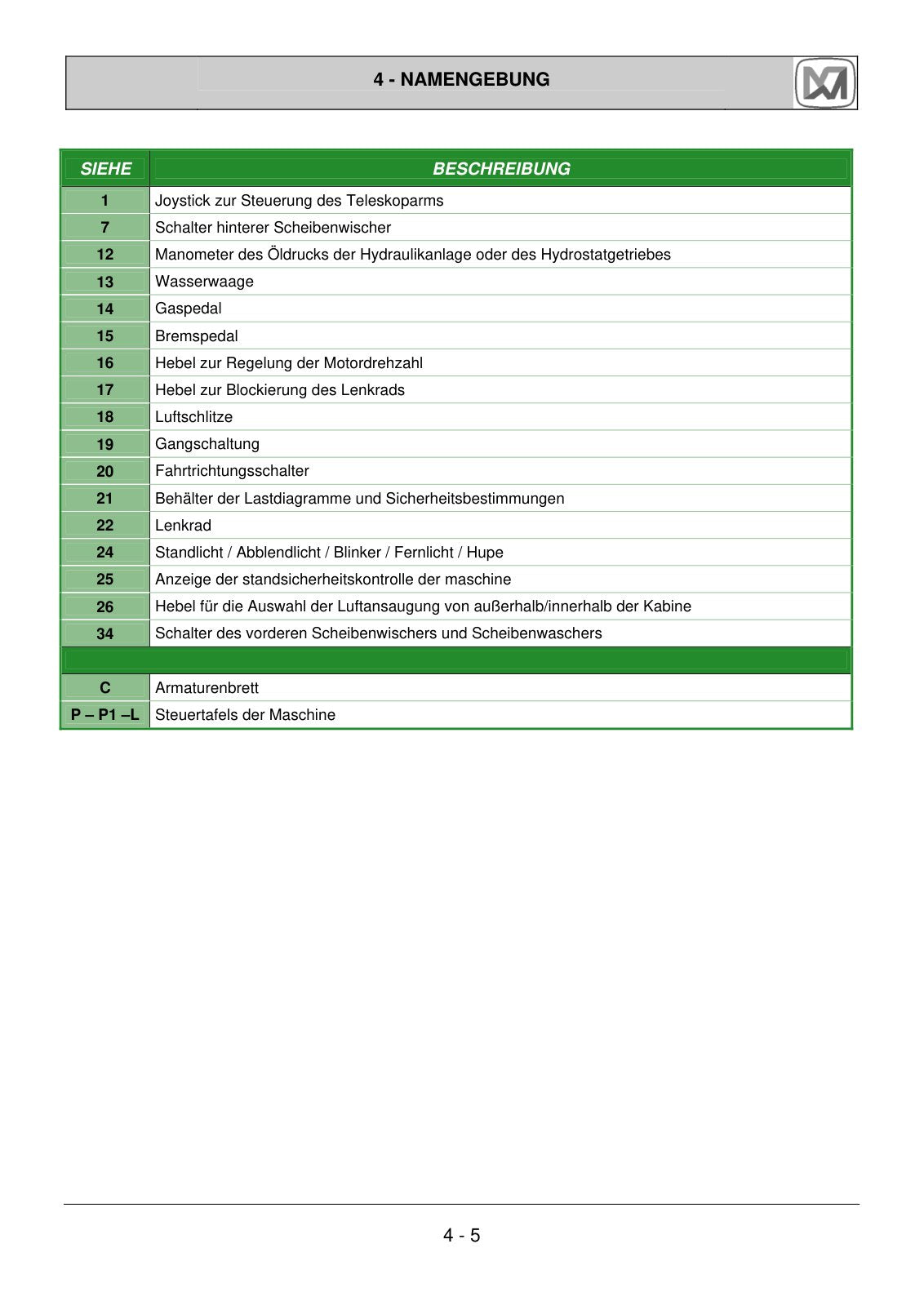

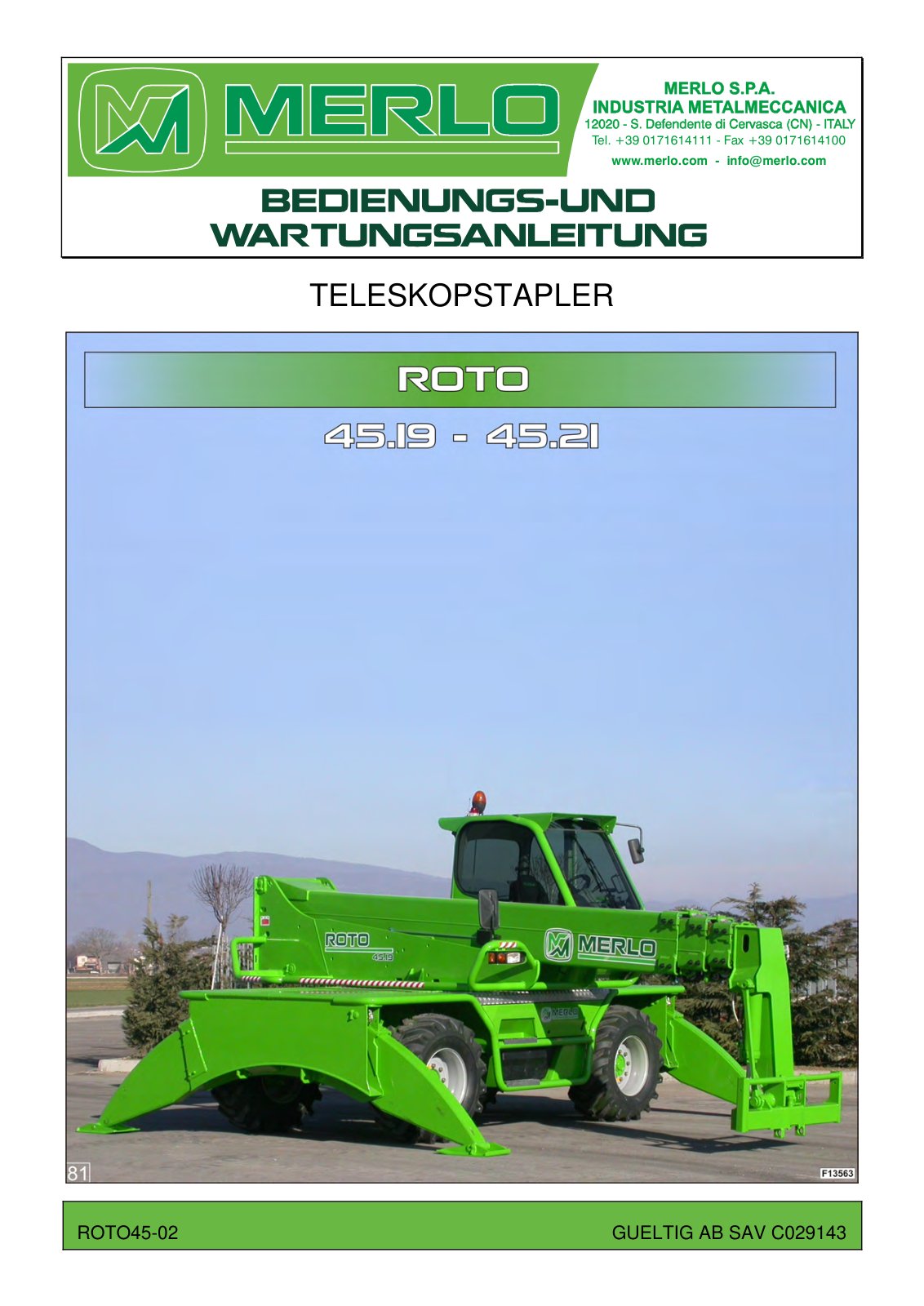

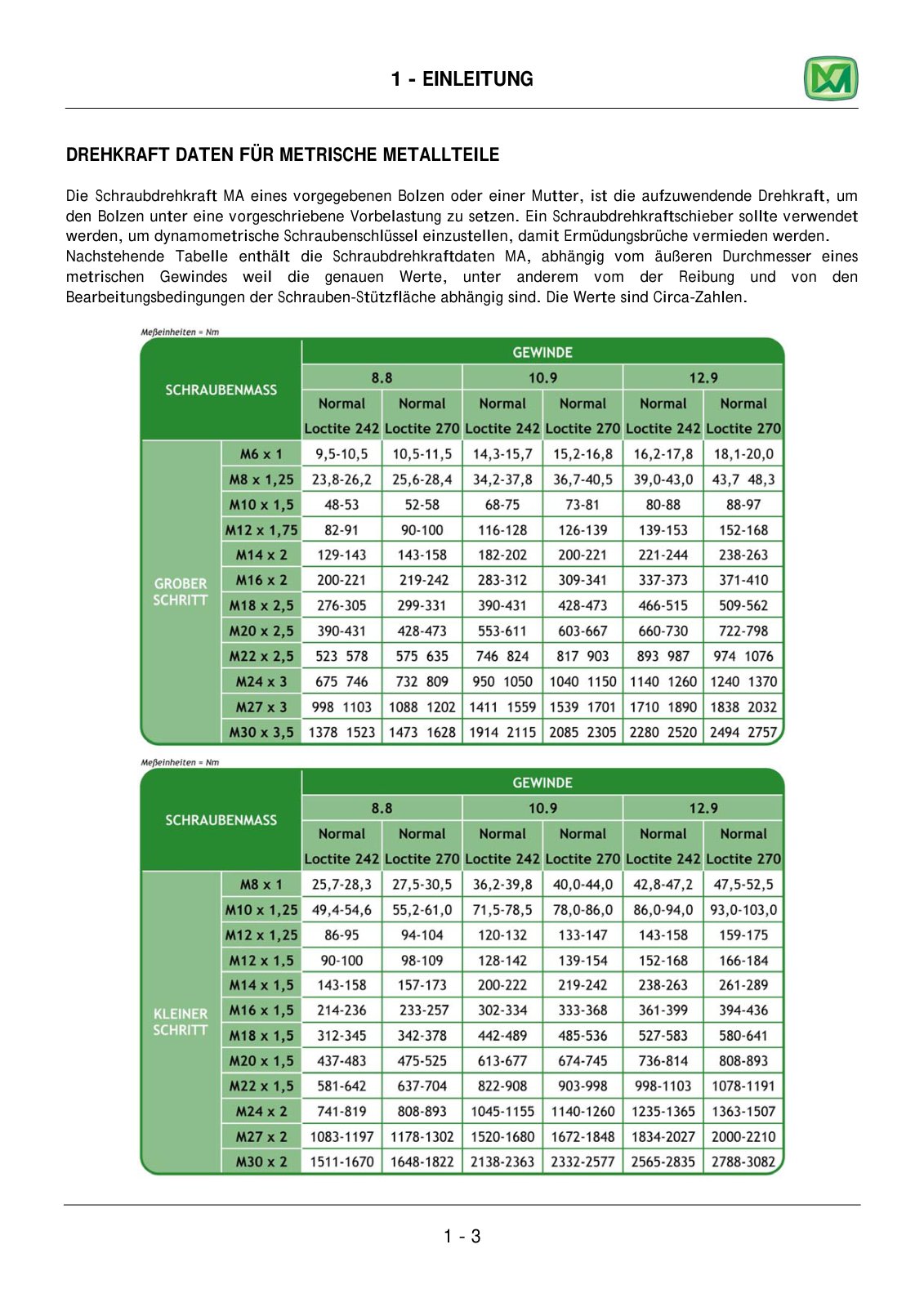

Operator's manual: Bedienungs- und Wartungsanleitung ROTO 45.19 - 45.21 SM ab SAV C029143 (ROTO45-02) (318 pages)
Operator's manual: Bedienungs- und Wartungsanleitung ROTO 45.19-45.21 SM ab SAV B841401 (ROTO45-01) (288 pages)
Miscellaneous: 048638 LBR (1 pages)
Electrical: Diagnose MERlin ROTO SM (M-RotoSM 01) (126 pages)
Electrical: Diagnose MERlin Roto SM 600° (DIA-ROTO.03) (132 pages)
Electrical: Elektrische Anlage Funkfernsteuerung (MARIRAD.03) (45 pages)
Electrical: Elektrische Anlage Mikroschalter ab SAV C037142 (MAMCRT.02) (19 pages)
Electrical: Elektrische Anlage Mikroschalter bis SAV C037142 (MAMCRT.01) (17 pages)
Electrical: Elektrische Anlage Servosteuerung Tecnord (SERVOTECNORD) (5 pages)
Electrical schematic: Elektrofunktionsschema ROTO SM 2008 (45959 3) (40 pages)
Electrical schematic: Elektrofunktionsschema ROTO SM 2009 (45959 3) (40 pages)
Electrical schematic: Elektrofunktionsschema ROTO SM 2010 (45959 3A EN13000) (40 pages)
Electrical schematic: Elektrofunktionsschema ROTO SM 2013 (45959 3E) (41 pages)
Electrical schematic: Elektrofunktionsschema ROTO SM 2013 (45959 3F) (41 pages)
Electrical schematic: Elektrofunktionsschema ROTO SM 2014 (55784 3 - ROTO 600° SM '14 TIER IV) (42 pages)
Electrical schematic: Elektrofunktionsschema ROTO SM 2017 (55784 3A -- ROTO 600° SM '17) (TIER IV) (42 pages)
Electrical schematic: Elektrofunktionsschema Roto SM 2008 (45959 3 DEUTSCH) (40 pages)
Electrical: Elektrische Anlage Fehlercodeliste ROTO SM und SM 400° (17 pages)
Drive / transmission: Diagnosesoftware HydraTecno V.2.6.0 (MD-HYDTEC.03) (72 pages)

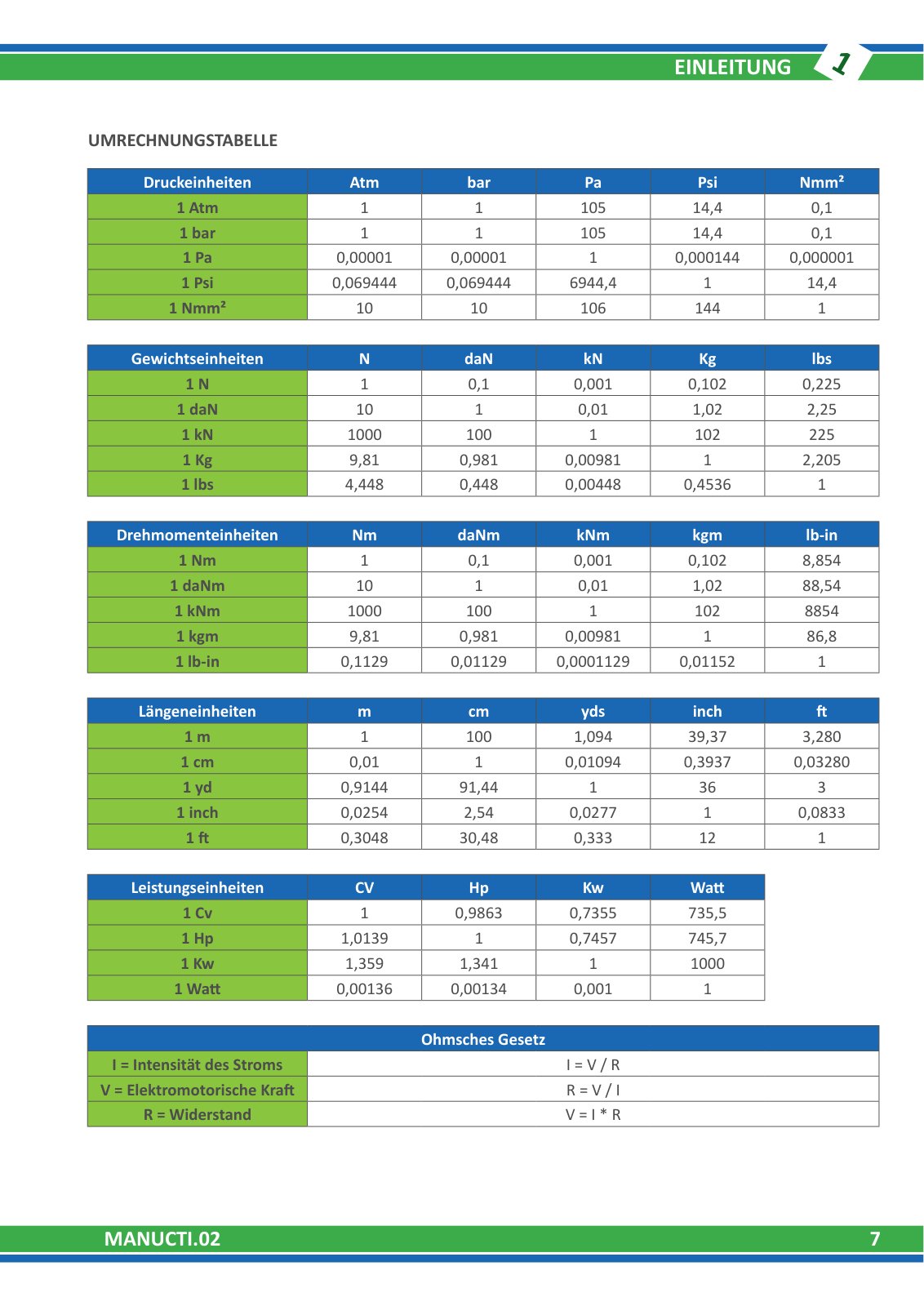

Drive / transmission: Hydrostatischer Antrieb mit Steuerung UCTI (MANUCTI.02) (82 pages)
Drive / transmission: Datenblatt Rexroth RC Microcontroller (20 pages)
Drive / transmission: Fehlerliste Rexroth (1 pages)
Drive / transmission: Rexroth Hydrostatischer Antrieb ROTO MCSS - ROTO SM (25 pages)
Hydraulics: 075179 Block Load Sensing Signal (51151 3) (1 pages)
Hydraulics: Hydraulikschema Roto SM (4 pages)
Hydraulics: Hydraulische Anlage Abstuetzungen und Niveau ROTO MCSS(SOSPMCSS.01) (42 pages)

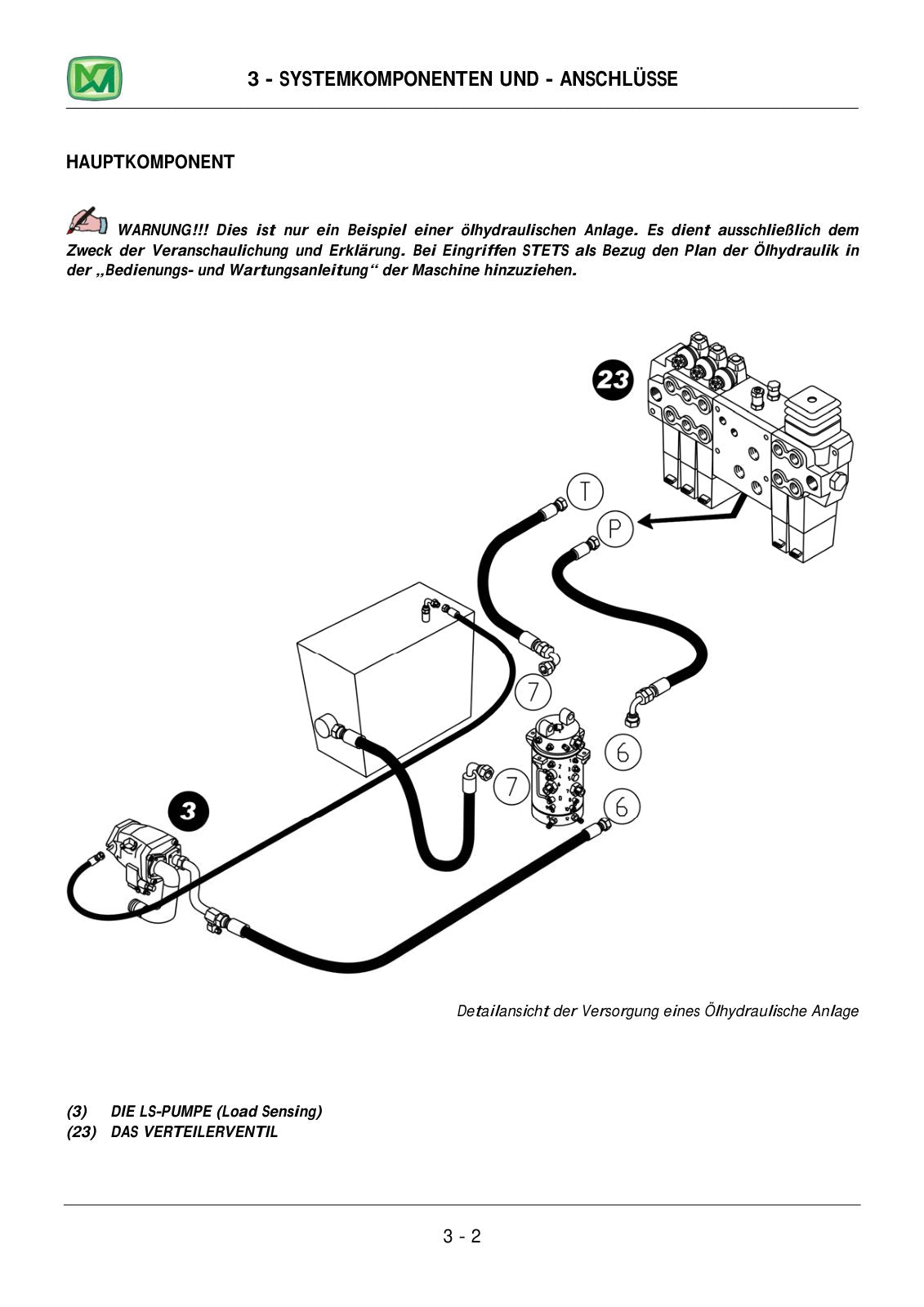

Hydraulics: Hydraulische Anlage Load Sensing ROTO (MAHYROTO-02) (47 pages)
Mechanical: Mechanischer Antriebsstrang ROTO ab SAV B818341(GRMECNW-01) (95 pages)
Mechanical: Oberwagengetriebe (RIDUSOM-02) (33 pages)
… and 2 more documents

DETAILS
Size: 139 MB
Format: PDF; a ZIP archive
Language: German (some documents in English)
Brand: Merlo
number of pages:1790
Type of document: Service Manual

Before you buy

Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
