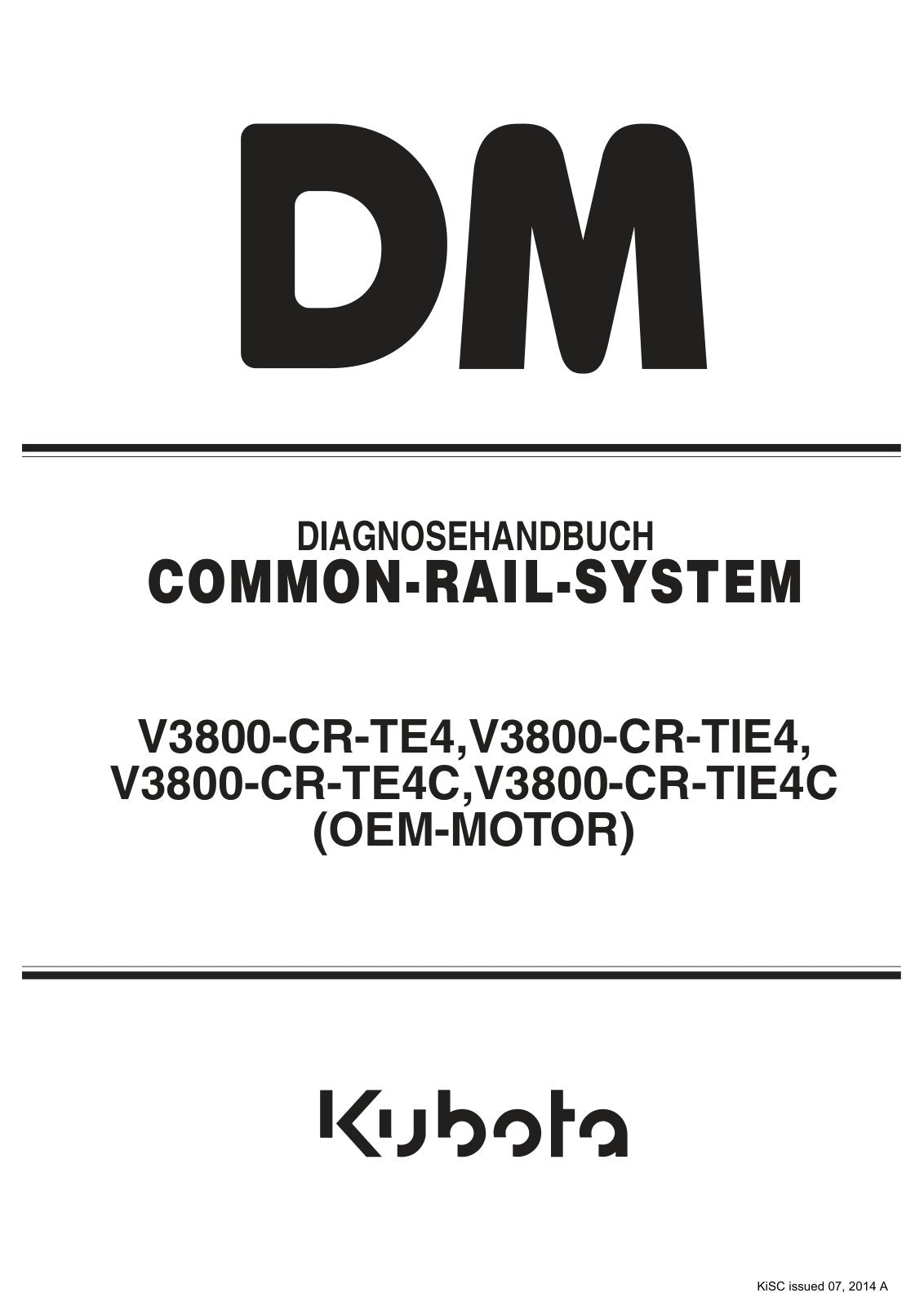

  • Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German) – cover

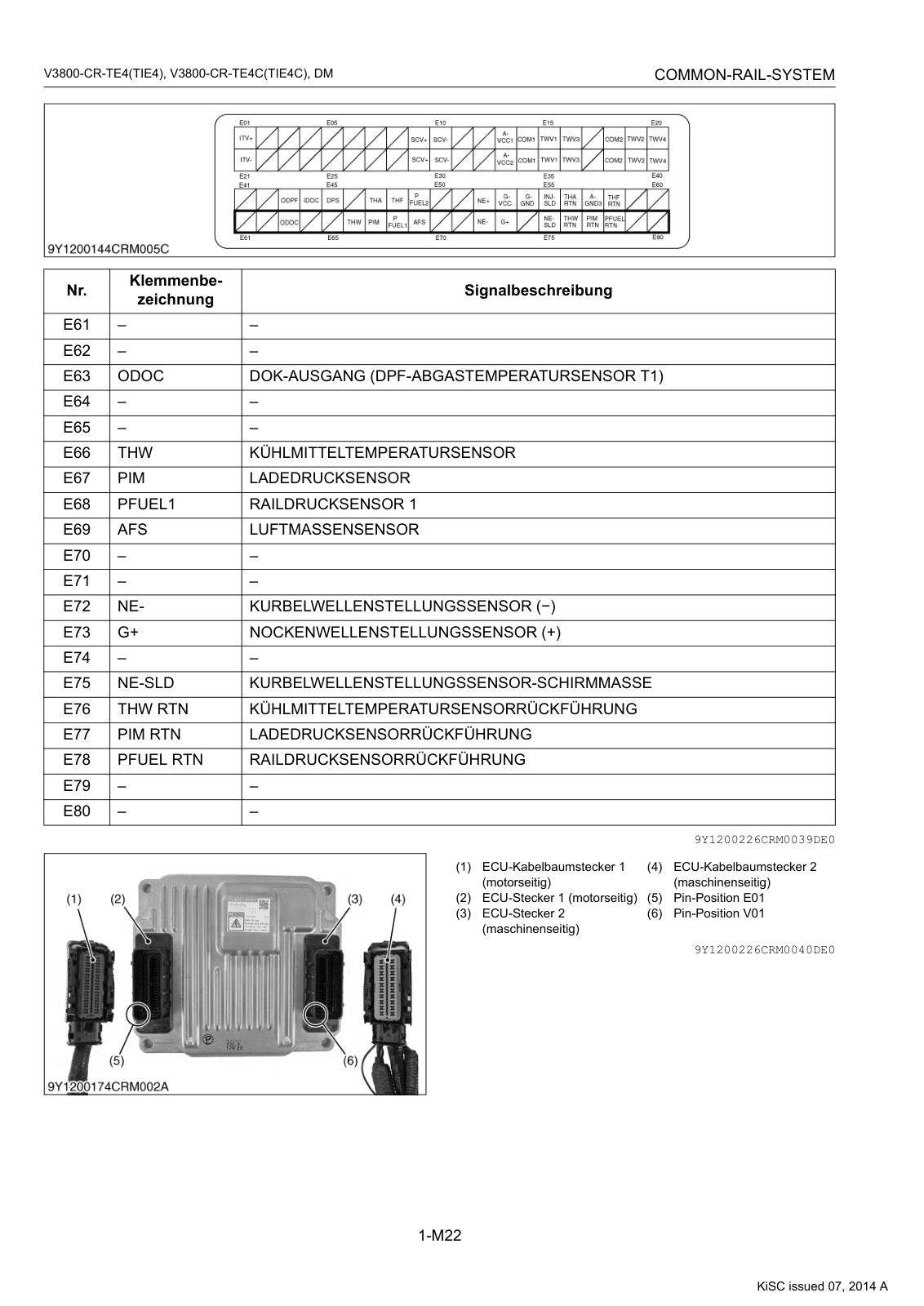

  • Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German) – sample page 1

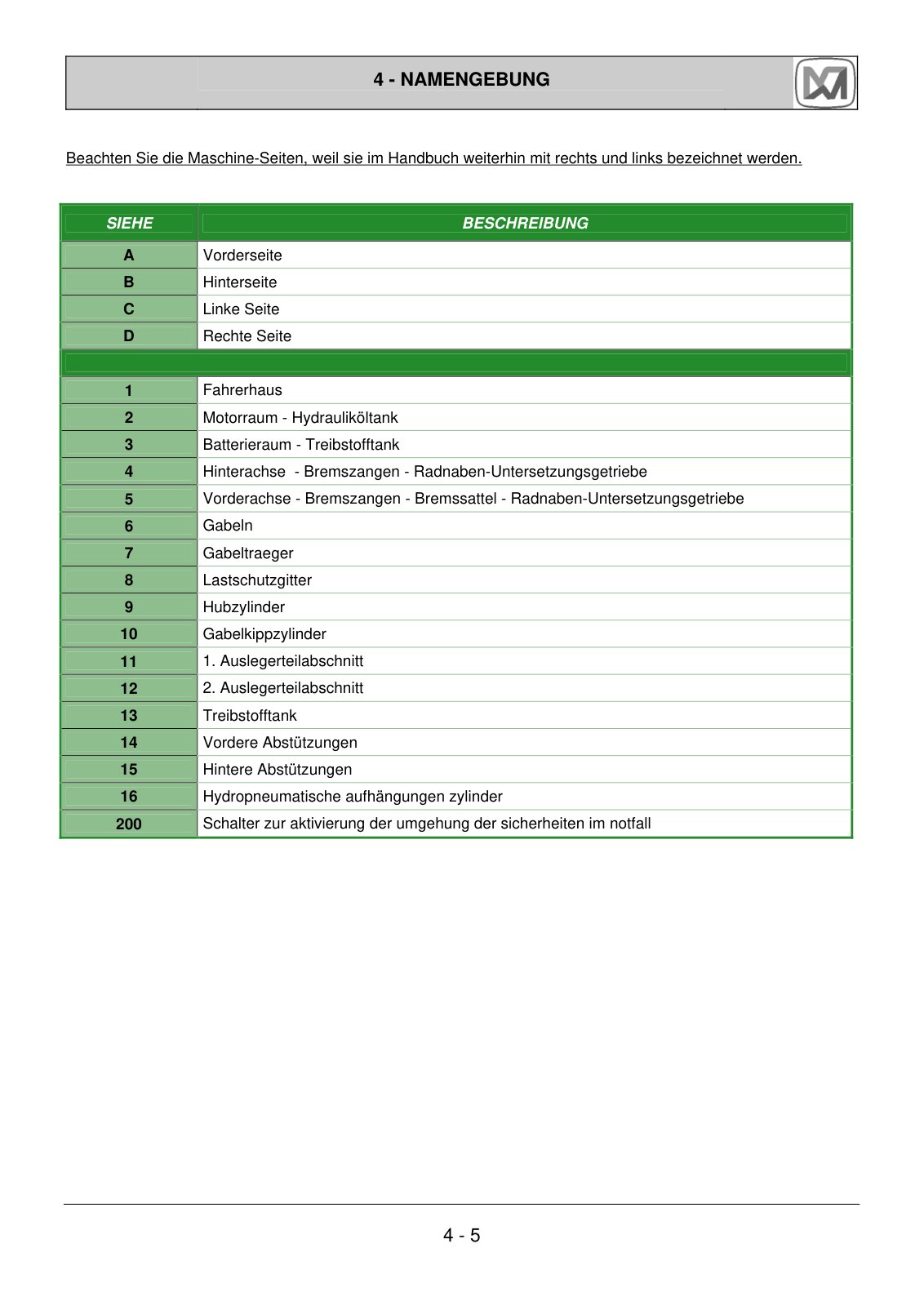

  • Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German) – sample page 2

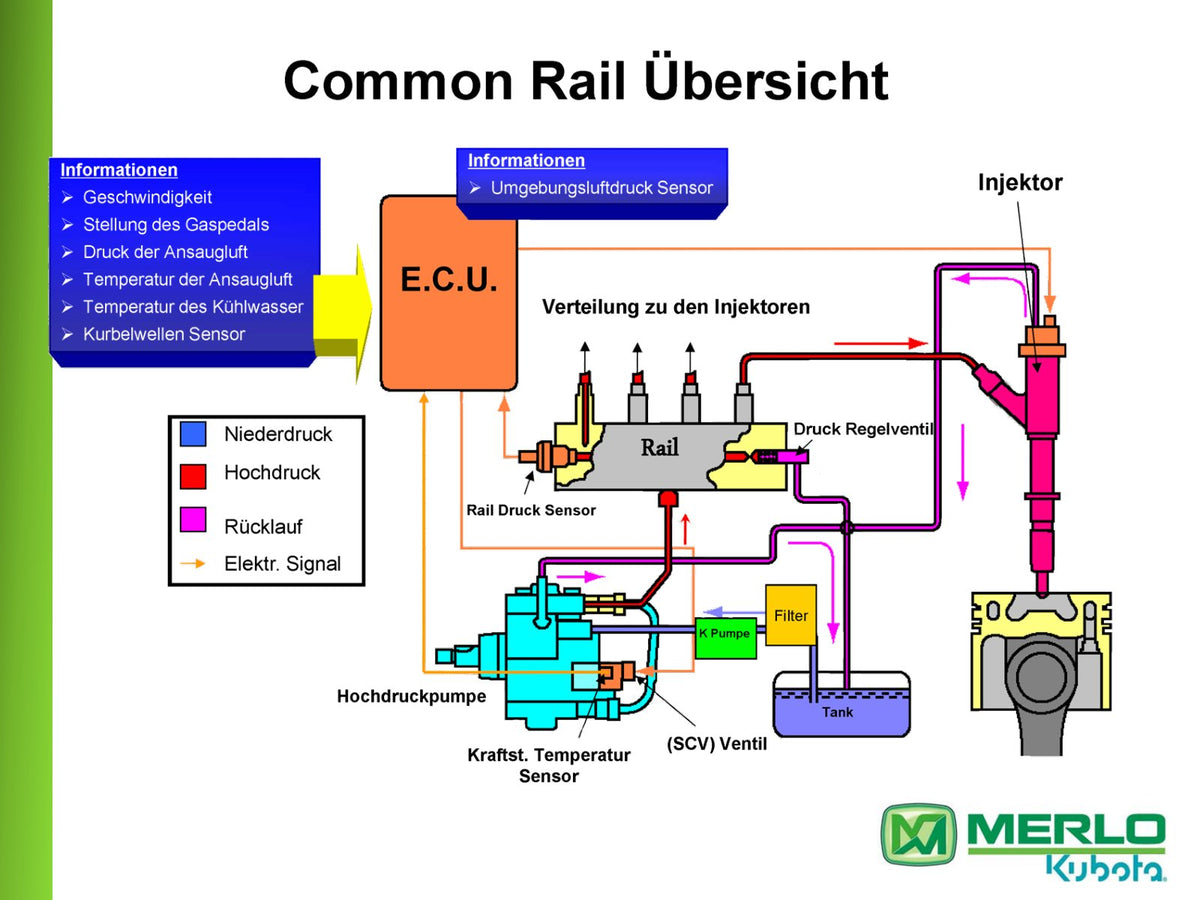

  • Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German) – sample page 3

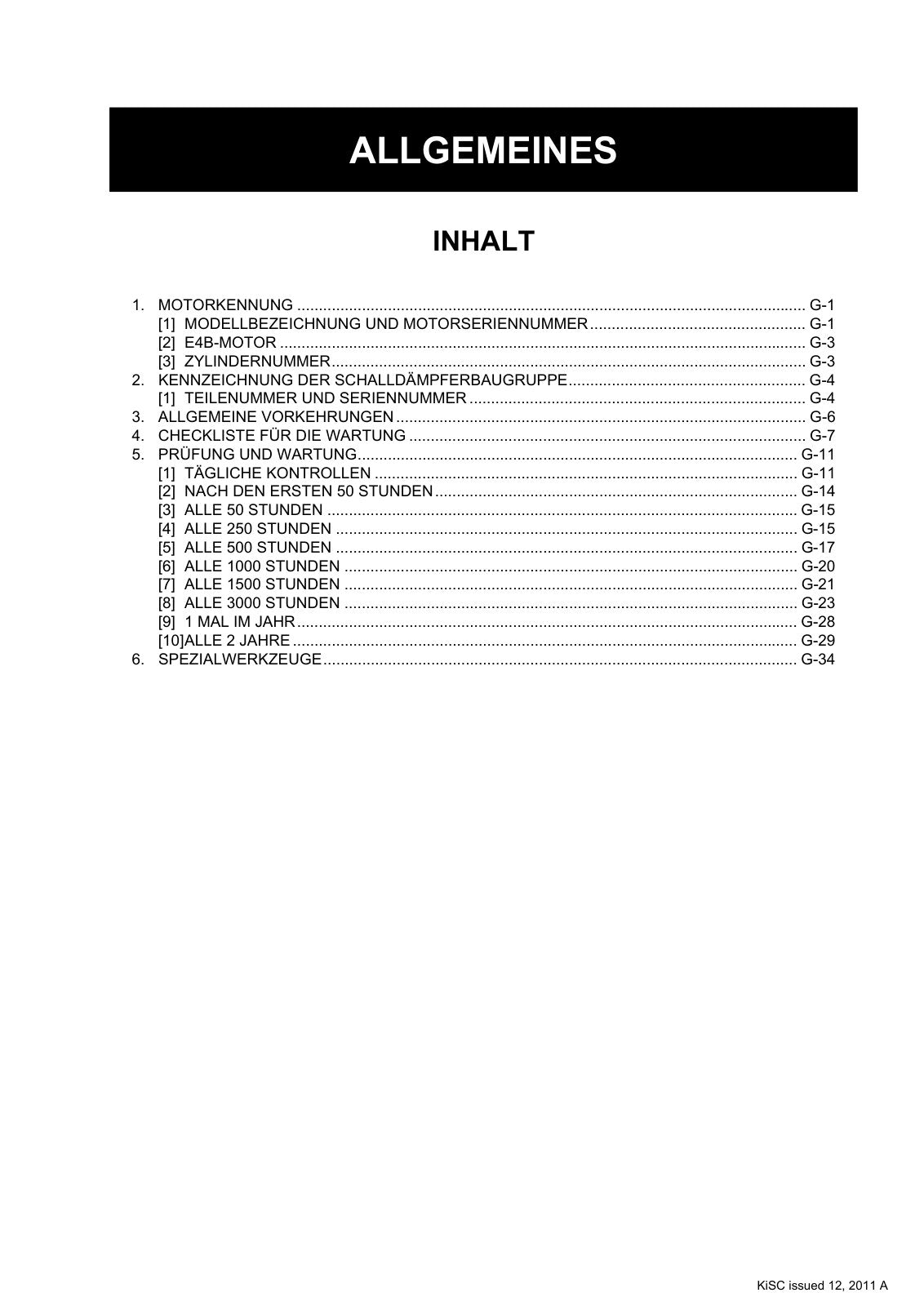

  • Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German) – sample page 4

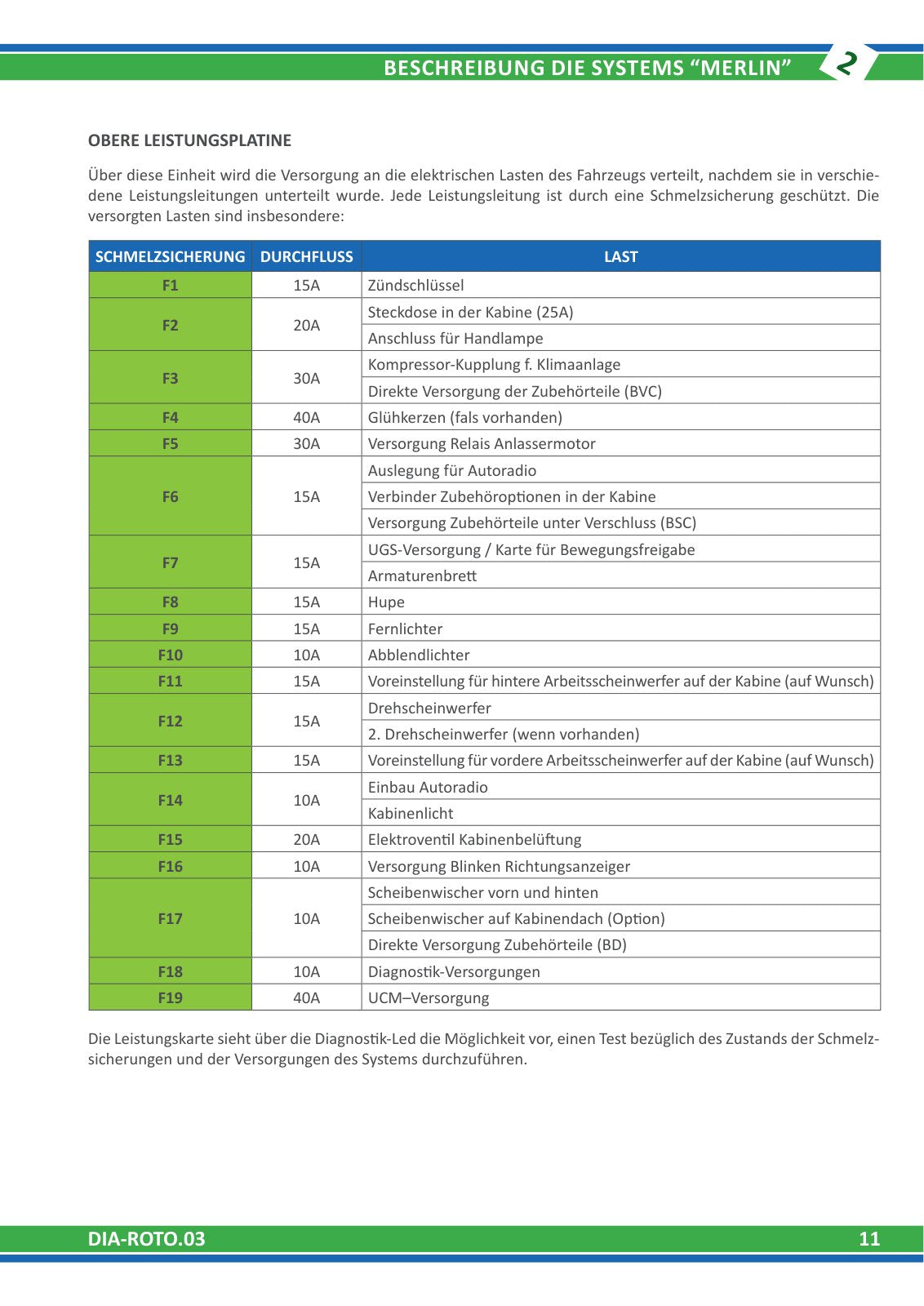

  • Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German) – sample page 5
  • Sku: MER-EH4D5BC35
  • Vendor: Merlo

Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German)

€90,00 EUR
Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product description

Merlo Roto SM 400° R38.14, R38.16, R40.18S, R50.10S Service Manual Set (from S/N C037142, German) – digital service manual (3308 pages in 48 PDF files, language: German (some documents in English), format: PDF, delivered as a ZIP archive). The files are available to download after purchase; nothing is shipped.

Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.

Merlo service documentation set in German for the Roto SM 400° rotating telehandlers R38.14, R38.16, R40.18S and R50.10S from serial number C037142: operator and maintenance manuals for five serial ranges, MERlin diagnostics and error messages for Roto SM 400°/600°, microswitches and Tecnord servo control, Rexroth drive with UCTI control and HydraTecno software, load-sensing hydraulics, outriggers and levelling, driveline, slew gear and telescopic booms, wiring diagrams 2010–2017, hydraulic schematics and Kubota V3800 CR / Perkins 1104D engine documents incl. DPF. Supplied as a ZIP archive with the original Merlo documents arranged by topic (operation, electrics, drive, hydraulics, mechanics).

Models covered: Merlo Roto 38.14, 38.16, 40.18S, 50.10S (SM 400°, S/N C037142 and up)

Contents

  • Operator's manual: BA ROTO 38.14 - 38.16 ab SAV C037142 (ROTO38-02) (299 pages)
  • Operator's manual: BA ROTO 38.14-38.16-40.18-50.10S ab SAV C324501 (ROTO38-05) (198 pages)
  • Operator's manual: BA ROTO 38.14-38.16-40.18-50.10S ab SAV C347442 (ROTO38-06) (214 pages)
  • Operator's manual: BA ROTO 38.14-38.16-40.18-50.10S ab SAV C428114 (ROTO38-07) (218 pages)
  • Operator's manual: BA ROTO 38.14S - 38.16S - 50.10S ab SAV C037142 (ROTO38S-02) (321 pages)
  • Operator's manual: BA V3800-CR-TE4 DEU (40 pages)
  • Operator's manual: BA Perkins 1104D NK-NL-NM (SGBU8325-01) (94 pages)
  • Miscellaneous: 048638 LBR (1 pages)
  • Electrical: Diagnose MERlin Roto SM 400° (DIA-ROTO.03) (132 pages)
  • Electrical: Elektrische Anlage Mikroschalter ab SAV C037142 (MAMCRT.02) (19 pages)
  • Electrical: Elektrische Anlage Servosteuerung Tecnord (SERVOTECNORD) (5 pages)
  • Electrical: Grenzwerte Kalibrierung Längenmesser (1 pages)
  • Electrical schematic: Elektrofunktionsschema ROTO SM 400° 2010 (49937 3 EN 13000 DEUTSCH) (43 pages)
  • Electrical schematic: Elektrofunktionsschema ROTO SM 400° 2010 (49937 3 EN13000) (40 pages)
  • Electrical schematic: Elektrofunktionsschema ROTO SM 400° 2011 (49937 3A EN13000 CLIII) (40 pages)
  • Electrical schematic: Elektrofunktionsschema ROTO SM 400° 2013 (49937 3D) (41 pages)
  • Electrical schematic: Elektrofunktionsschema ROTO SM 400° 2014 (56906 3 - ROTO 400° SM '14 (TIER IV)) (42 pages)
  • Electrical schematic: Elektrofunktionsschema ROTO SM 400° 2017 (56906 3b - ROTO 400° SM '17) (TIER IV) (42 pages)
  • Electrical: Fehlermeldungen ROTO SM 400°-600° (DIA-ROTO.03) (27 pages)
  • Electrical: 079953 Kabel Stützenschalter ROTO 400° SM V2 (53155 3) (1 pages)
  • Drive / transmission: Diagnosesoftware HydraTecno V.2.6.0 (MD-HYDTEC.03) (72 pages)
  • Drive / transmission: Hydrostatischer Antrieb mit Steuerung UCTI (MANUCTI.02) (82 pages)
  • Drive / transmission: Datenblatt Rexroth RC Microcontroller (20 pages)
  • Drive / transmission: Fahrantrieb Rexroth (REXIDREL-02) (61 pages)
  • Drive / transmission: Fehlerliste Rexroth (1 pages)
  • Hydraulics: Hydraulikschema ROTO 38.14 - 38.16 ab SAV C037142 (7 pages)
  • Hydraulics: Hydraulikschema ROTO 38.14S - 50.10S ab SAV C117541 (7 pages)
  • Hydraulics: Hydraulikschema ROTO 38.14S - 50.10S ab SAV C211443 (5 pages)
  • Hydraulics: Hydraulikschema ROTO 38.14S - 50.10S ab SAV C428114 (17 pages)
  • … and 19 more documents

DETAILS
Size: 368 MB
Format: PDF; a ZIP archive
Language: German (some documents in English)
Brand: Merlo
number of pages:3308
Type of document: Service Manual

Before you buy

Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
