Merlo Roto K, KS R30.16, R33.16, R33.13, R35.13 Service Manual Set with Diagrams (German)
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Merlo Roto K, KS R30.16, R33.16, R33.13, R35.13 Service Manual Set with Diagrams (German) – digital service manual (832 pages in 33 PDF files, language: German, format: PDF, delivered as a ZIP archive). The files are available to download after purchase; nothing is shipped.
Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.
Merlo service documentation set in German for the Roto K and KS rotating telehandlers R30.16, R33.16, R33.13 and R35.13: operator and maintenance manual (Roto 33.16KS from S/N B424241), electrical systems (joystick, platform, levelling and load limiter, emergency stop, overload indicator) with harness drawings, Rexroth hydrostatic drive with fault list, hydropneumatic levelling, driveline, slew gear and telescopic booms, wiring diagrams 2001 and 2003 and hydraulic schematics. Supplied as a ZIP archive with the original Merlo documents arranged by topic (operation, electrics, drive, hydraulics, mechanics).
Models covered: Merlo Roto R30.16, R33.16, R33.13, R35.13 (K, KS)
Contents

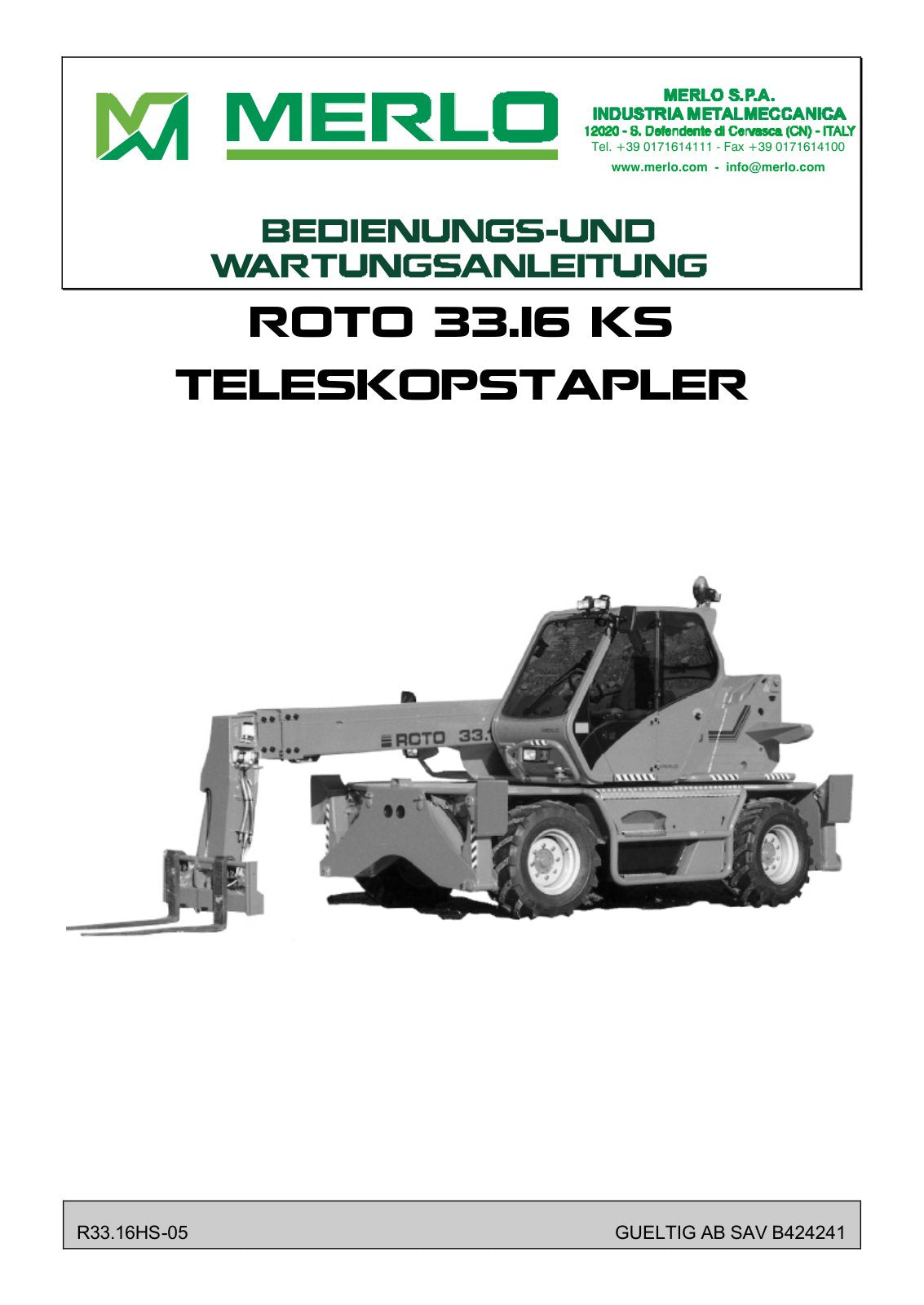

- Operator's manual: Bedienungs- und Wartungsanleitung ROTO 3316KS ab SAV B424241 (R33.16HS-05) (183 pages)
- Electrical: Elektrische Anlage Armlehnenjoystick (MARJOY-03) (31 pages)
- Electrical: Elektrische Anlage Buehne (MARNAS.05) (73 pages)
- Electrical: Elektrische Anlage Niveau- und Belastungsbegrenzung Arbeitsbuehne (MDNIVBEL.03) (11 pages)
- Electrical: Elektrische Anlage Not-Aus (3 pages)
- Electrical: Elektrische Anlage Ueberlastanzeige (MATISTA-02) neu (11 pages)
- Electrical: Elektrische Anlage Ueberlastanzeige (MATISTA-02) (9 pages)
- Electrical schematic: Elektrofunktionsschema ROTO K - KS 2001+2003 (DEUTSCH) (25 pages)
- Electrical schematic: Elektrofunktionsschema ROTO K 2001 (30477E 3) (23 pages)
- Electrical schematic: Elektrofunktionsschema ROTO K 2003 (35869E 3A) (24 pages)
- Electrical schematic: Elektrofunktionsschema ROTO KS 2001 (31038E 3) (22 pages)
- Electrical schematic: Elektrofunktionsschema ROTO KS 2003 (35870E 3A) (23 pages)
- Electrical: 036237 Drehzahlsensor (25023 4c) (1 pages)
- Electrical: 042811 Drehzahlsensor Kardanwelle (26290 4c) (1 pages)
- Electrical: 048472 Kabel Magnetventile Unterwagen (30550 3A) (1 pages)
- Electrical: 048473 Hauptkabel Oberwagen ROTO KS (30552 3g) (1 pages)
- Electrical: 048499 Hauptkabel Unterwagen ROTO KS (30608 3) (1 pages)
- Electrical: 048500 Seitenbedientafel ROTO KS (30553-3) (1 pages)
- Electrical: 050848 Kabel Deutz ROTO KS (32362 3b) (1 pages)
- Electrical: 051145 Kabel Service Kabine ROTO KS (32610 3B) (1 pages)
- Electrical: 055592 Kabel Anlasswiederholsperre (36448 4) (1 pages)
- Electrical: 055797 Kabel Rexroth RC4-4 ROTO KS (36594 3) (1 pages)
- Drive / transmission: Datenblatt Rexroth RC Microcontroller (20 pages)
- Drive / transmission: Fahrantrieb Rexroth (REXIDREL-02) (61 pages)
- Drive / transmission: Fehlerliste Rexroth (1 pages)
- Hydraulics: Hydraulikschema ROTO 33.16KS ab SAV B424241 (3 pages)
- Hydraulics: Hydraulikschema Roto K-KS-KSC (10 pages)
- Hydraulics: Hydropneumatischer Niveauausgleich (MASOSP.002) (50 pages)
- Mechanical: Mechanischer Antriebsstrang (MA640-02) (83 pages)
- … and 4 more documents
DETAILS
Size: 150 MB
Format: PDF; a ZIP archive
Language: German
Brand: Merlo
number of pages:832
Type of document: Service Manual
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
