Merlo Roto 40.26, 40.30, 50.16, 60.24 MCSS 360° Overhaul & Diagnostic Manual (from S/N C242441)
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Merlo Roto 40.26, 40.30, 50.16, 60.24 MCSS 360° Overhaul & Diagnostic Manual (from S/N C242441) – digital service manual (1074 pages in 2 PDF files, language: English, format: PDF, 2 download files). The files are available to download after purchase; nothing is shipped.
Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.
Original Merlo S.A.V. workshop documentation for the Roto MCSS 360° rotating telehandlers built from 2013, serial number C242441 onwards, as issued by Merlo for its service network (pub. no. 083395). Volume 1 is the overhaul manual – mechanical components such as reducers, differentials, gearbox and boom; Volume 2 is the diagnostic manual – hydrostatic transmission, hydraulic circuits, joysticks, electronics and calibration procedures, with electrical schematics.
Models covered: Merlo Roto 40.26 MCSS 360°, 40.30 MCSS 360°, 50.16 MCSS 360°, 60.24 MCSS 360° (S/N C242441 and up, 2013 onwards)
Contents

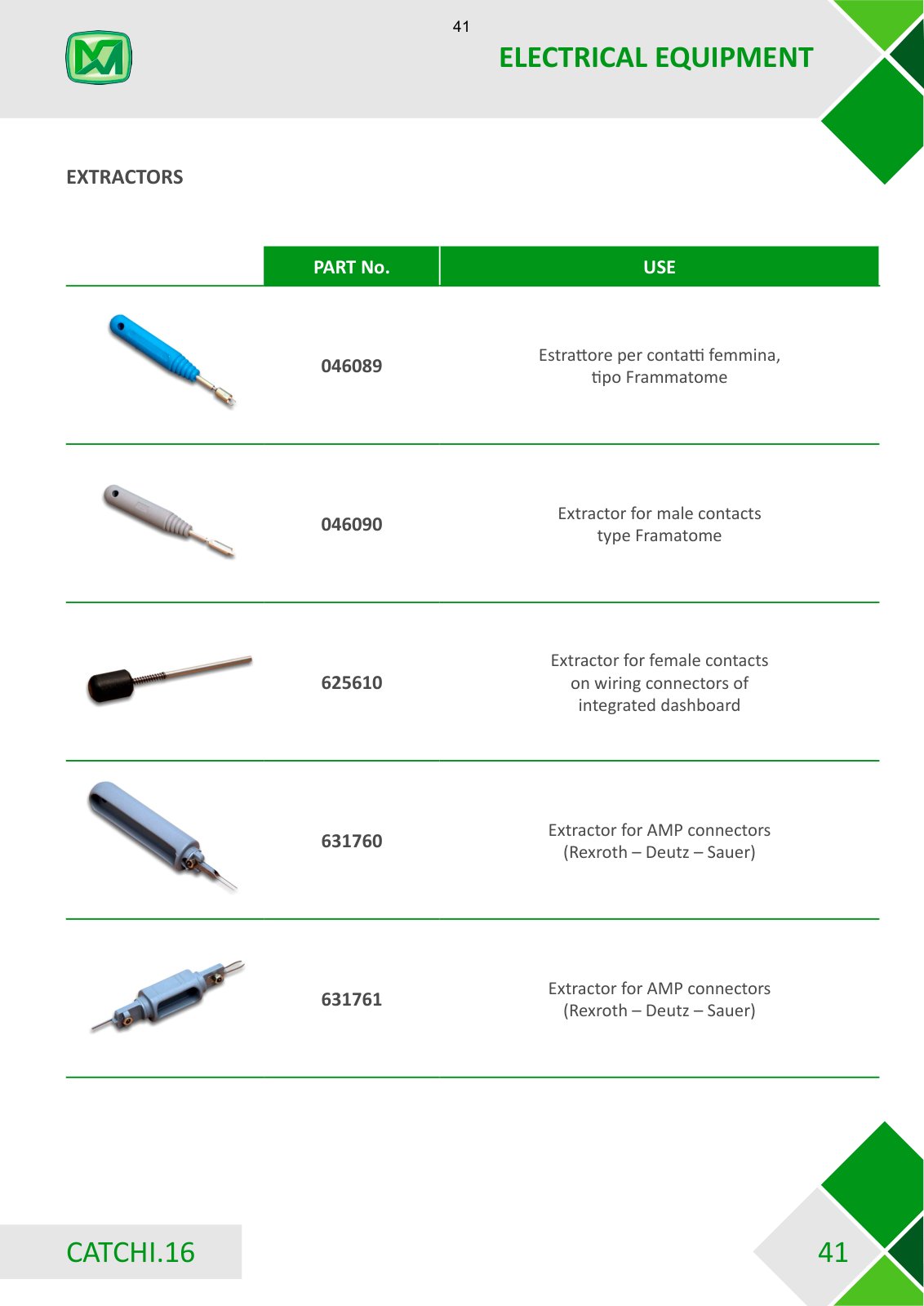

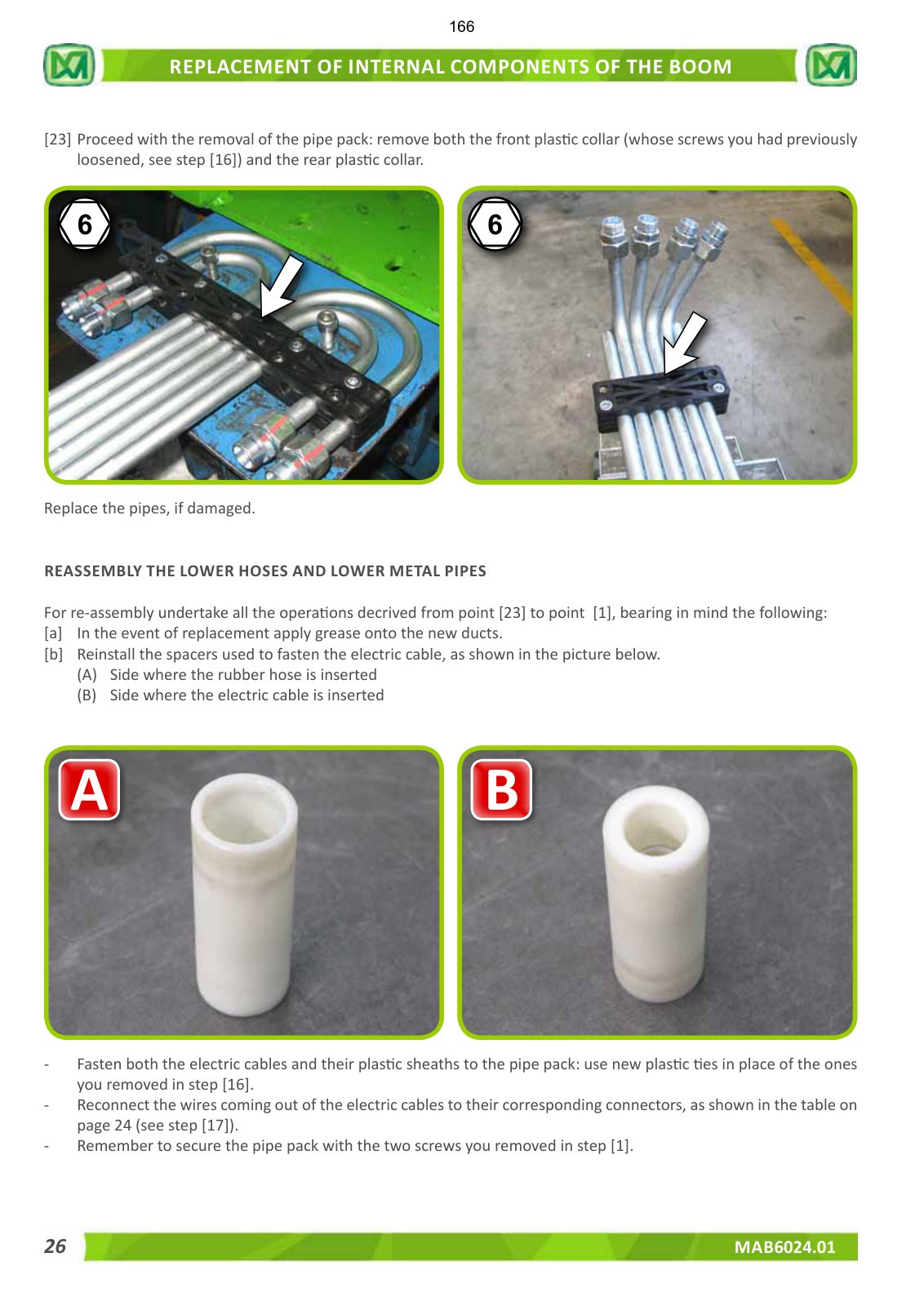

- Volume 1 (567 pages): Special tools, attachments; Internal operations to the telescopic boom; Calibration of tip-over prevention system on Merlo telehandlers; Epicyclic reduction gear; Dismounting and overhaul of the slew reduction gear box on Roto mcs; Differentials type DBNP 9/37 and DBNP 10/41; 2VM - 2VM synchronised and T2M CVTRONIC gearboxes; Maintenance and overhaul reducers ED RR640; Dismounting and overhaul of the reducer for the turret rotation on ro

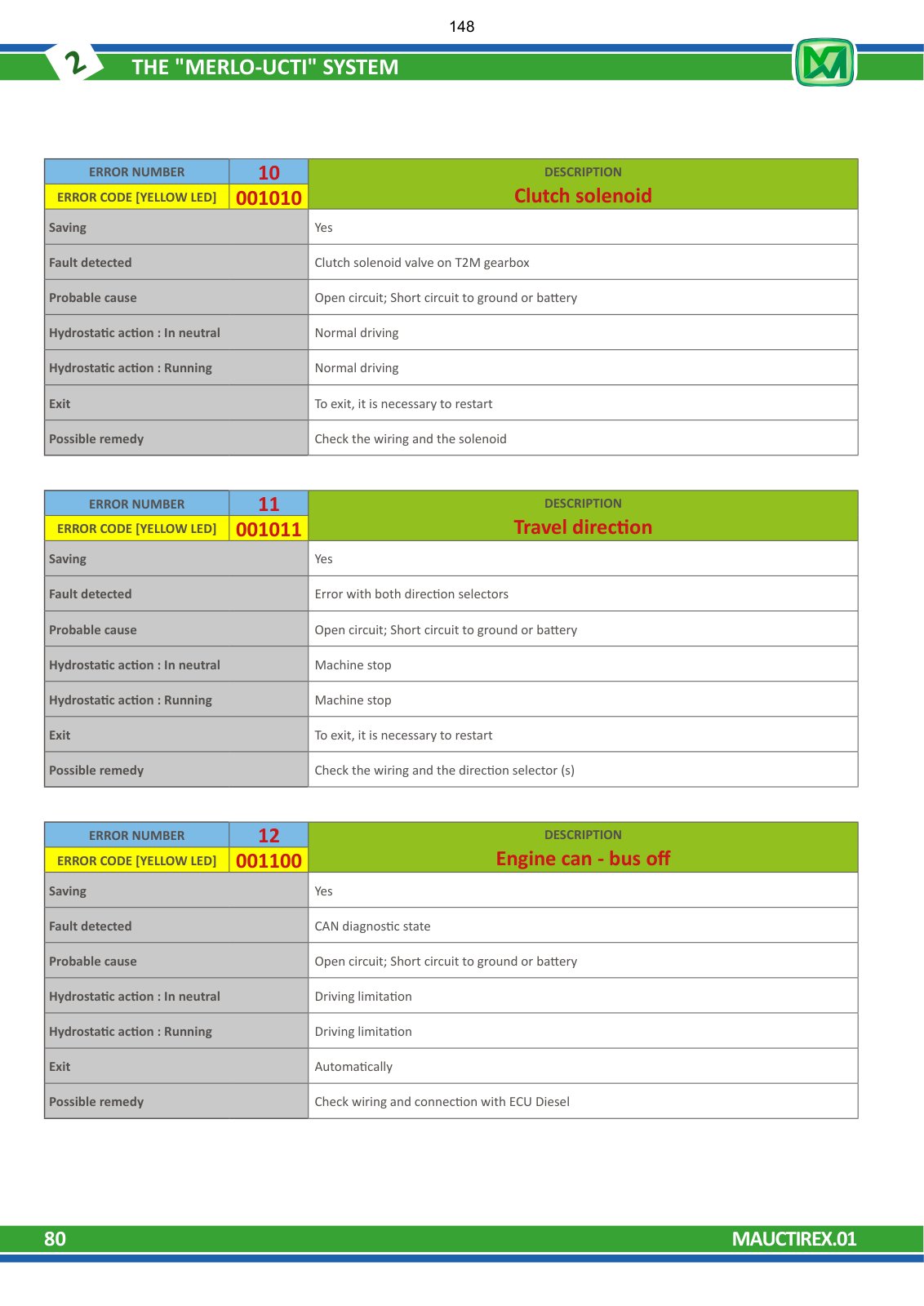

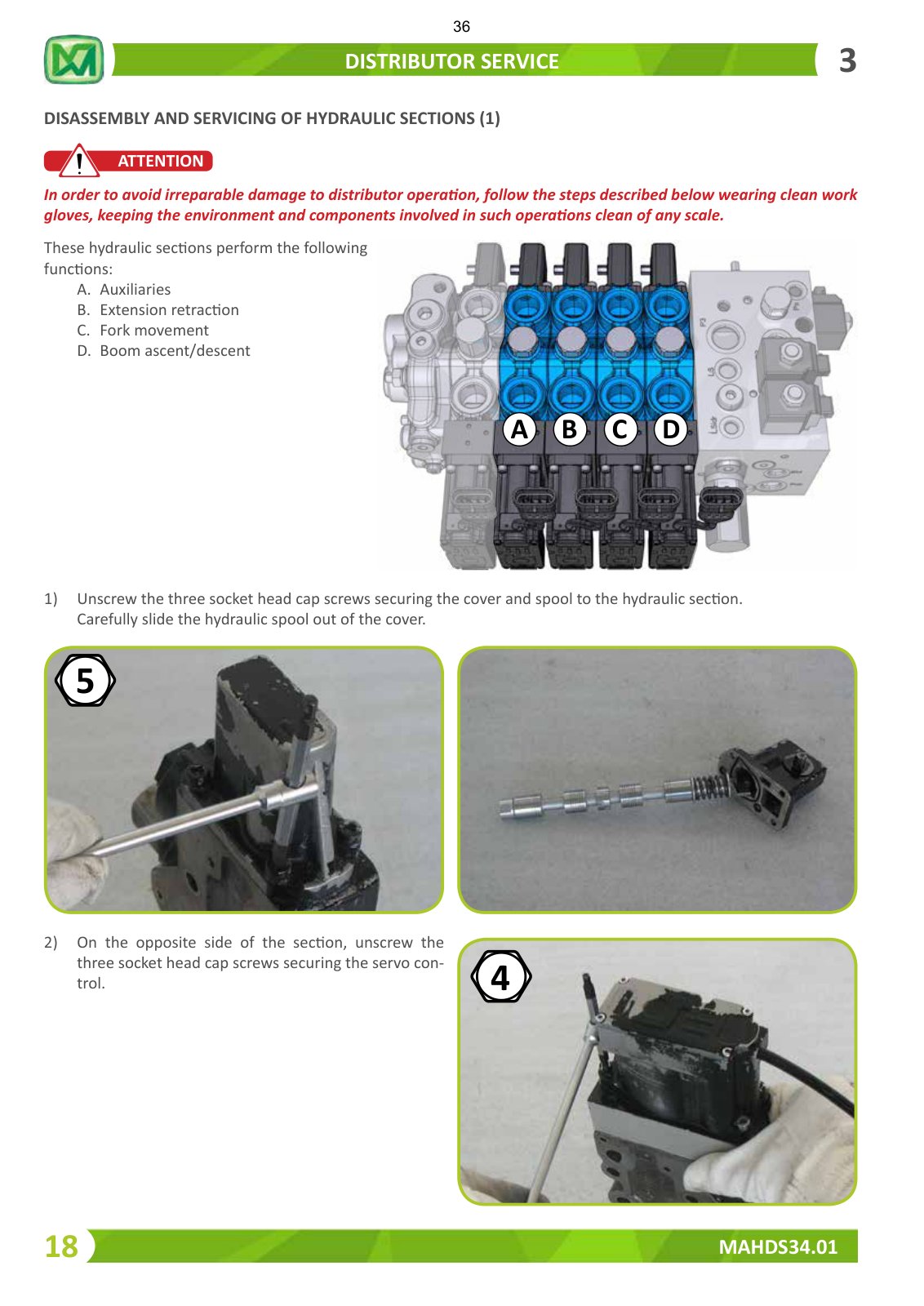

- Volume 2 (507 pages): Diagnostic analysis of the "UGS" board on Roto MCSS; Hydraulic Distributor Bucher; Hydrostatic transmission “Rexroth” with “Merlo - UCTI” unit; Basket error code; Diagnostic case for Merlo telescopic handlers; Stsbiliser control solenoid valve on MCSS; Hydra tecno for EPD; Electrical scheme Roto mscc 2014 (Tier iv)
DETAILS
Size: 150 MB
Format: PDF, 2 download files
Language: English
Brand: Merlo
number of pages:1074
Type of document: Service Manual
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
