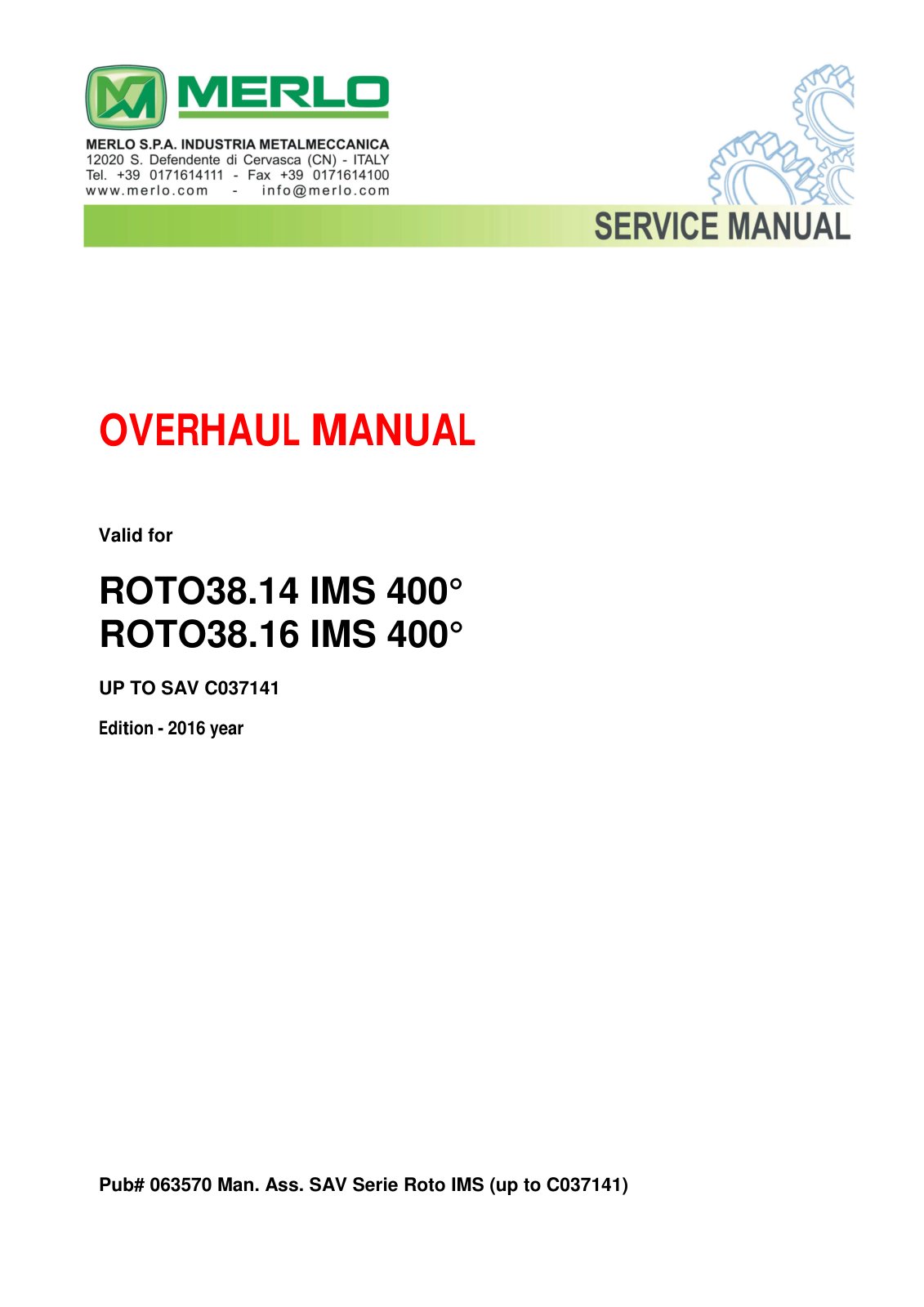

Merlo Roto 38.14, 38.16 IMS 400° Overhaul & Diagnostic Manual (up to S/N C037141)
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Merlo Roto 38.14, 38.16 IMS 400° Overhaul & Diagnostic Manual (up to S/N C037141) – digital service manual (698 pages in 2 PDF files, language: English, format: PDF, 2 download files). The files are available to download after purchase; nothing is shipped.
Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.
Original Merlo S.A.V. workshop documentation for the Roto 38.14 and 38.16 IMS 400° rotating telehandlers up to serial number C037141, as issued by Merlo for its service network (pub. no. 063570). Volume 1 is the overhaul manual – mechanical components such as reducers, differentials, gearbox and boom; Volume 2 is the diagnostic manual – hydrostatic transmission, hydraulic circuits, joysticks, electronics and calibration procedures, with electrical schematics.
Models covered: Merlo Roto 38.14 IMS 400°, Roto 38.16 IMS 400° (up to S/N C037141)
Contents

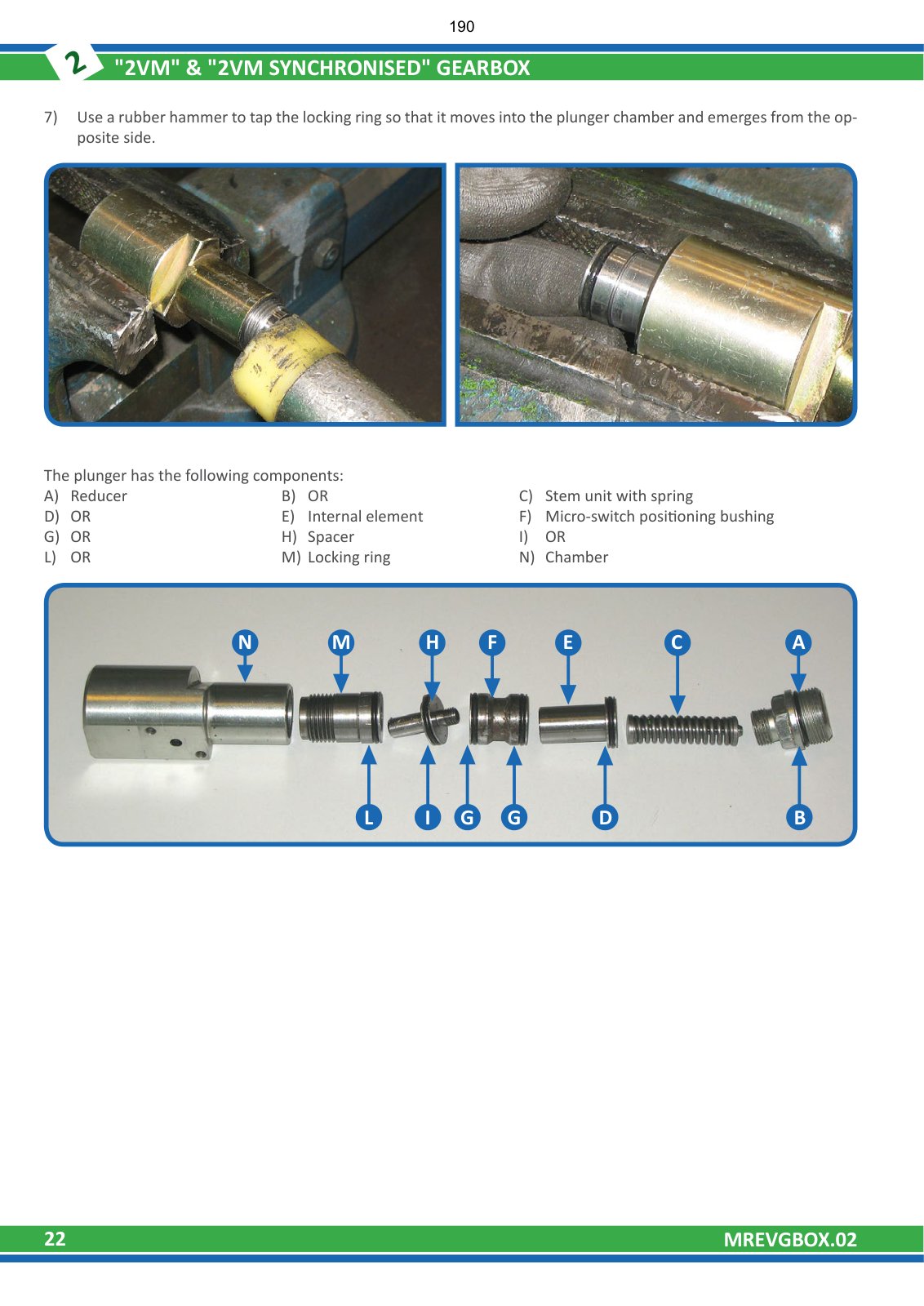

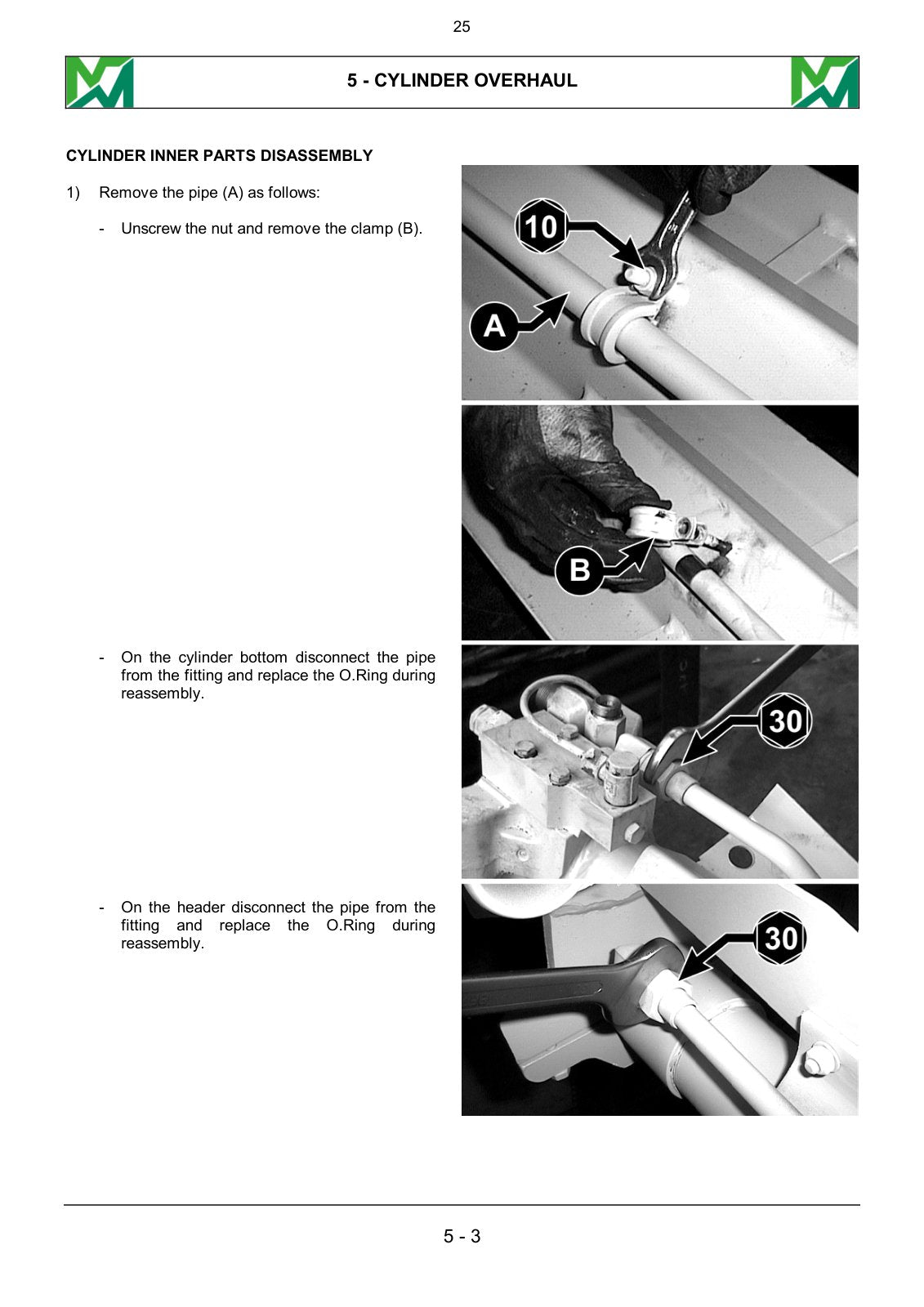

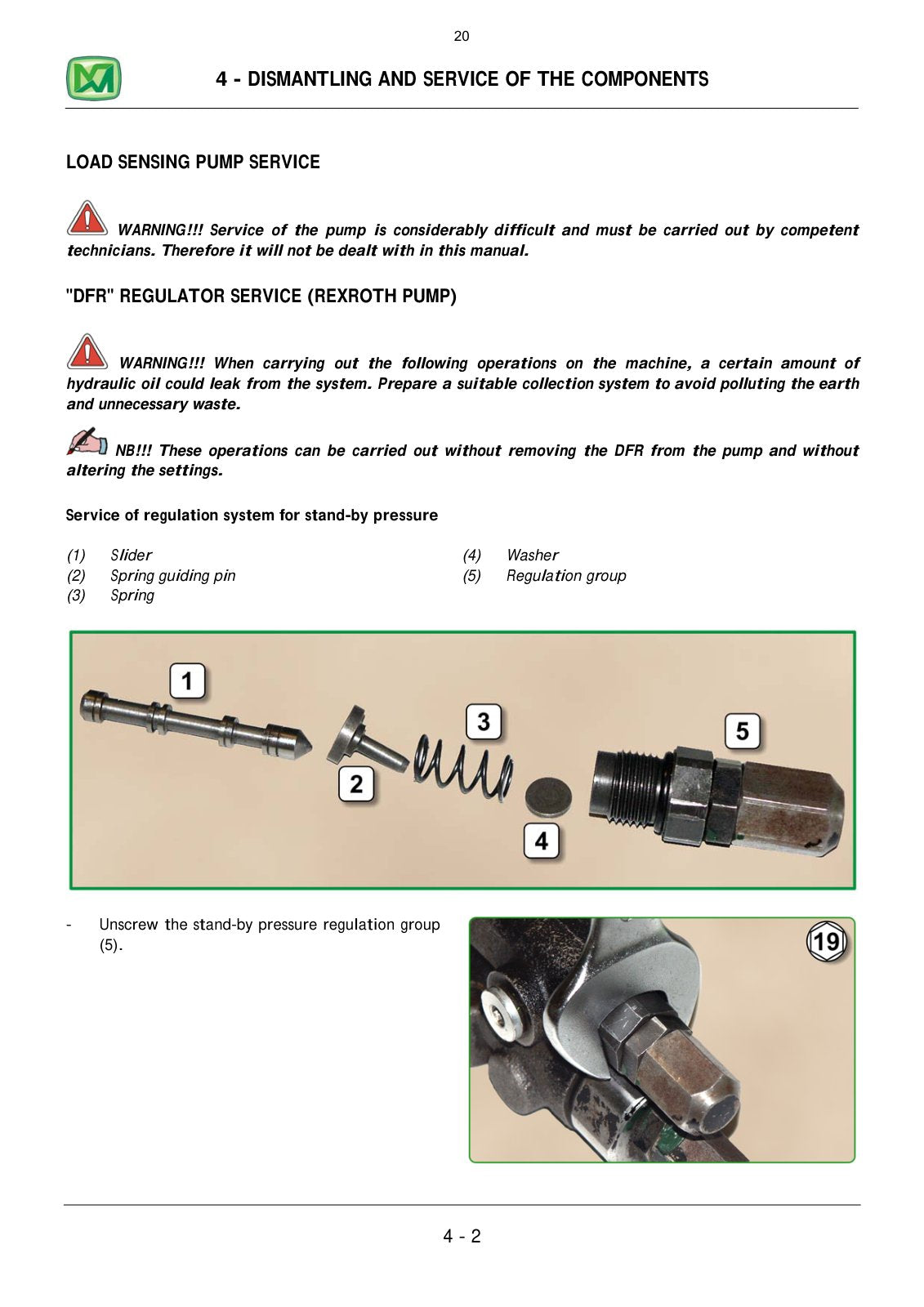

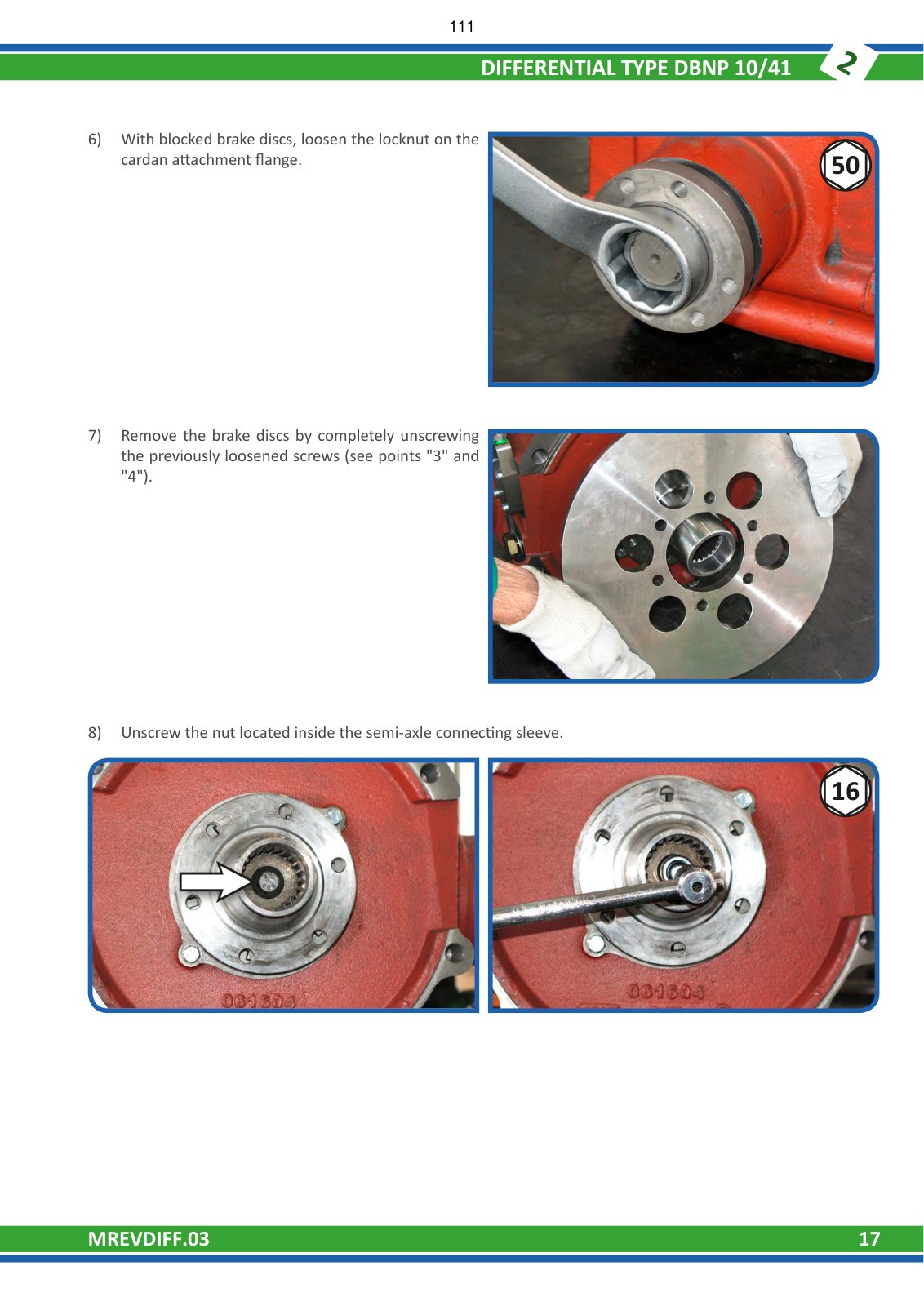

- Vol 1 (392 pages): Special tools, attachments; Maintenance and overhaul reducers ED RR640; Differentials type DBNP 9/37 and DBNP 10/41; 2VM - 2VM synchronised and T2M CVTRONIC gearboxes; Scheduled maintenance intervention; Internal operation to the two section boom; Pto unit inspection

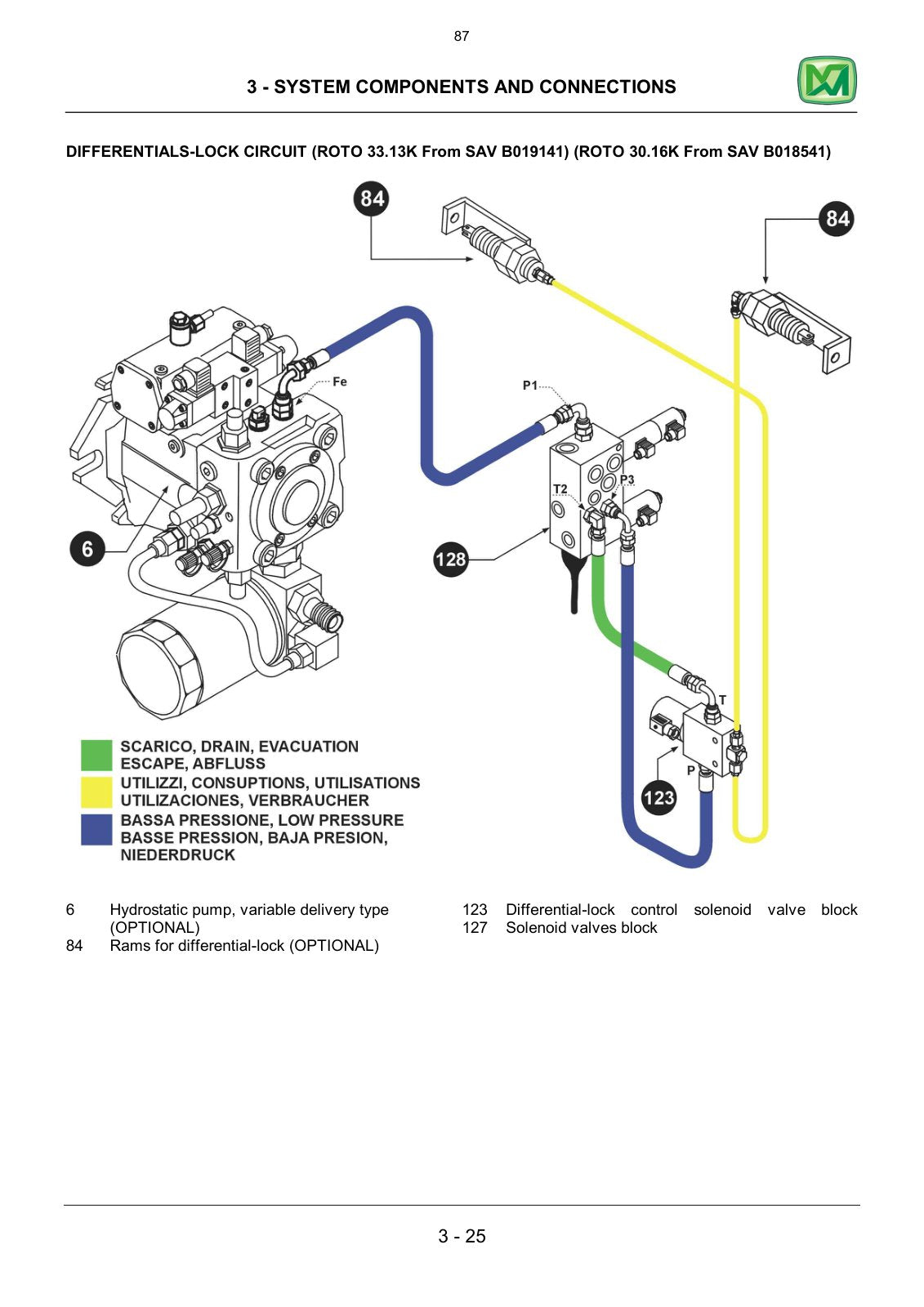

- Vol 2 (306 pages): Diagnostic case for Merlo telescopic handlers; Basket error code; Suspensions hydraulic system
DETAILS
Size: 171 MB
Format: PDF, 2 download files
Language: English
Brand: Merlo
number of pages:698
Type of document: Service Manual
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
