Merlo P32.6 Top Overhaul & Diagnostic Manual (from S/N C350116)
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Merlo P32.6 Top Overhaul & Diagnostic Manual (from S/N C350116) – digital service manual (810 pages in 2 PDF files, language: English, format: PDF, 2 download files). The files are available to download after purchase; nothing is shipped.
Before ordering, compare the model and serial number in the title with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.

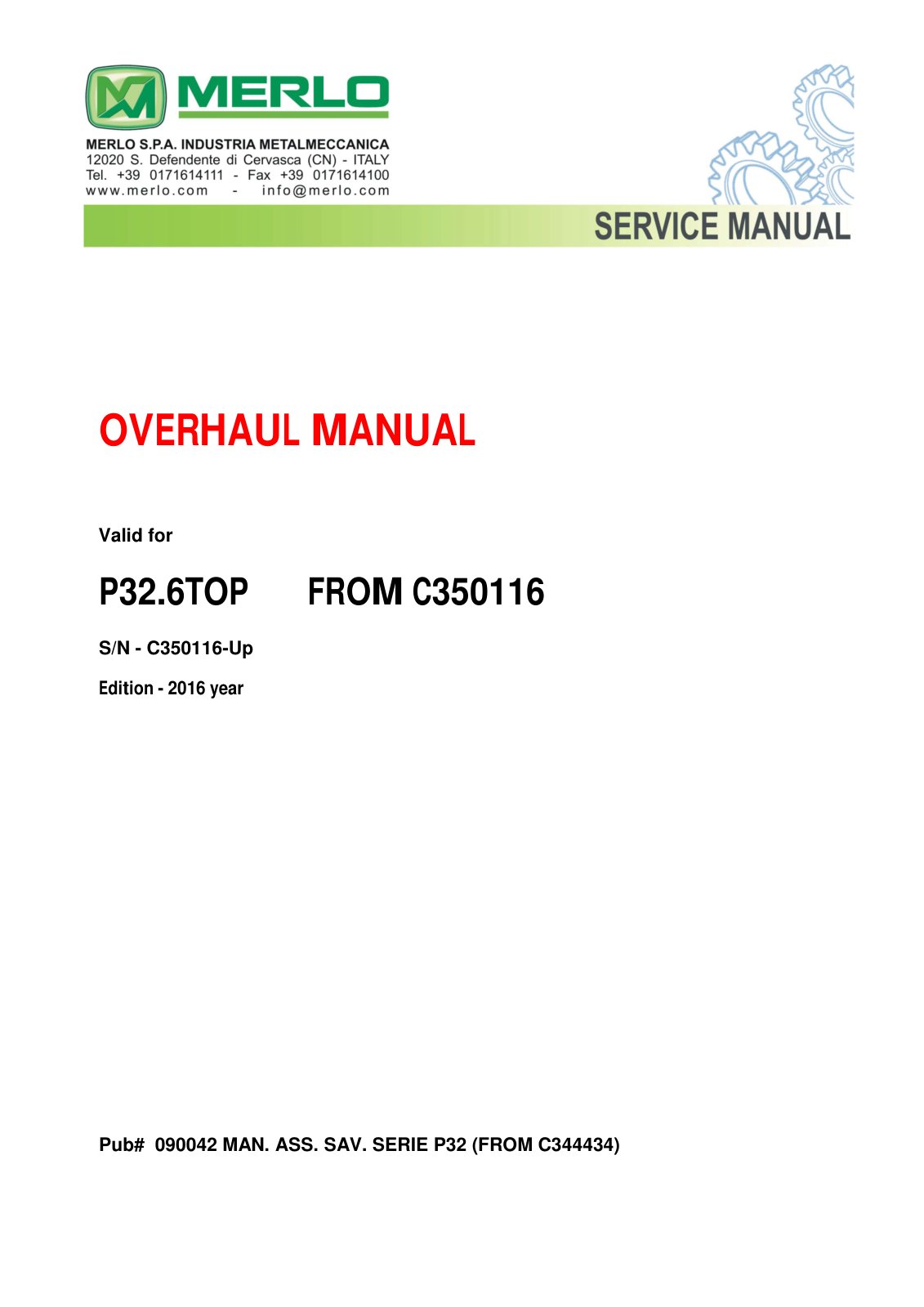

Original Merlo S.A.V. workshop documentation for the Merlo Panoramic P32.6 Top (P32 series from C344434), serial number C350116 onwards, as issued by Merlo for its service network (pub. no. 090042, 2016 edition). Volume 1 is the overhaul manual – mechanical components such as reducers, differentials, gearbox and boom; Volume 2 is the diagnostic manual – hydrostatic transmission, hydraulic circuits, joysticks, electronics and calibration procedures, with electrical schematics.
Models covered: Merlo Panoramic P32.6 Top (S/N C350116 and up)
Contents

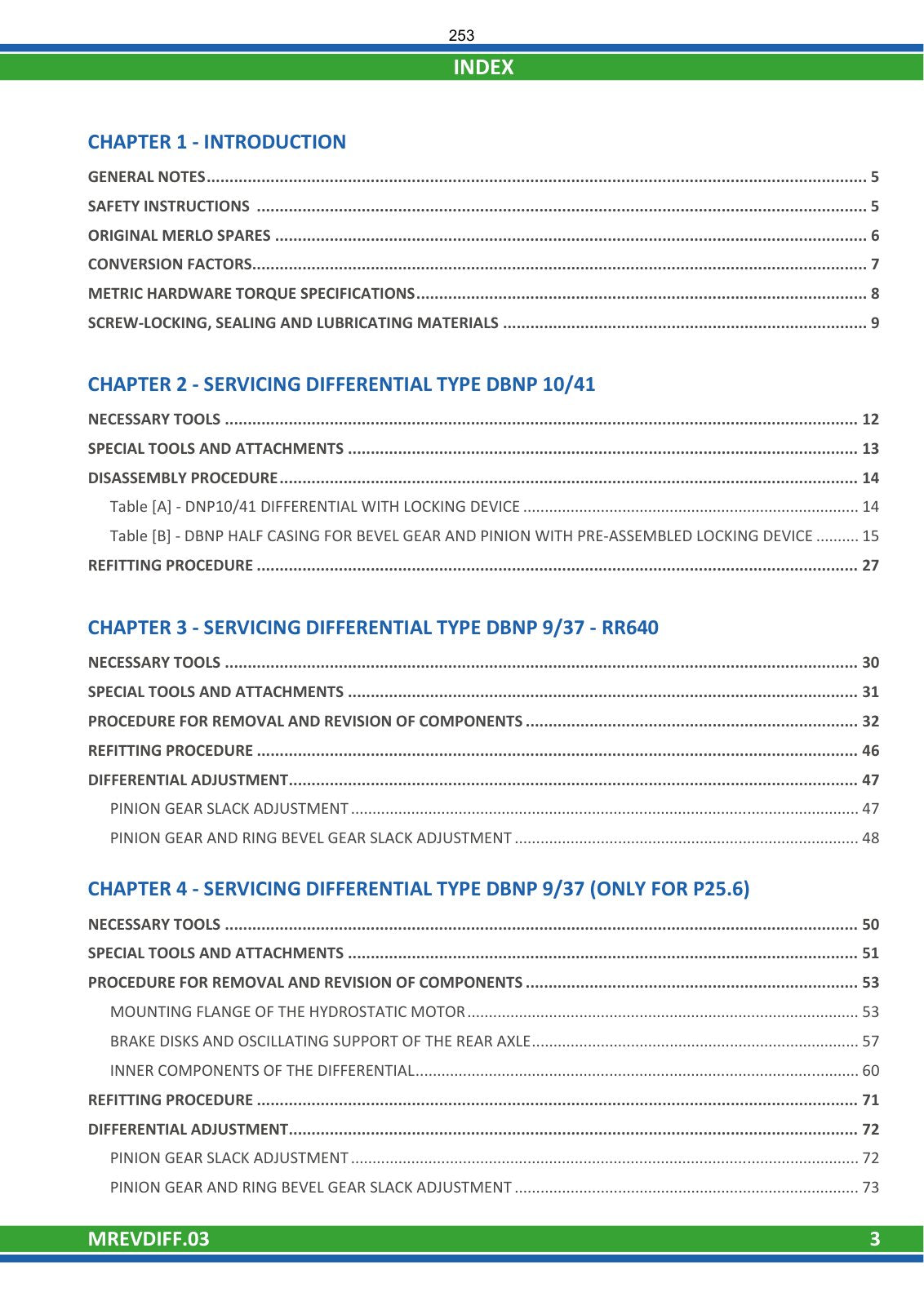

- Volume 1 (512 pages): Special tools, attachments; Calibration of tip-over prevention system on Merlo telehandlers; Internal operation to the two section boom; DISASSSEMBLY AND OVERHAUL OF THE CHAIN TORQUE TRANSFER UNIT (Tier 4I); Maintenance and overhaul reducers ED RR640; Differentials type DBNP 9/37 and DBNP 10/41; 2VM - 2VM synchronised and T2M CVTRONIC gearboxes
- Volume 2 (298 pages): The Sauer S1X system; Basket error code; Diagnostic case for Merlo telescopic handlers; Joystick sistems for telescopic handlers; Electrical Schematic TF + P32 + P25 +CDC + EE'14 + KUBOTA; Hydrostatschema P28.8-P32.6 SAUER EVO
DETAILS
Size: 146 MB
Format: PDF, 2 download files
Language: English
Brand: Merlo
number of pages:810
Type of document: Service Manual
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
