Laverda SisuDiesel 74 CTA 4V, 84 CTA 4V Tier 3 Engine Workshop Manual

Name: Laverda SisuDiesel 74 CTA 4V, 84 CTA 4V Tier 3 Engine Workshop Manual
Brand: Laverda
SKU: 327242010
Price: 50.0 EUR
Availability: InStock

€50,00 EUR

Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product variants

Quantity

I agree to the Terms of Service.

Product description

Laverda SisuDiesel 74 CTA 4V, 84 CTA 4V Tier 3 Engine Workshop Manual – digital engine workshop manual (125 pages, language: English, format: PDF). The file is available to download after purchase; nothing is shipped.

Before ordering, compare the models in the title and the serial number range with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.

Laverda workshop manual (ref. 327242010, December 2007) for the SisuDiesel 74 CTA 4V and 84 CTA 4V Tier 3 common-rail engines fitted to Laverda M SP, LCS and AL combines. Step-by-step overhaul instructions, special tools, and fault diagnosis with flash codes and the WinMM3s service tool.

Models covered: SisuDiesel 74 CTA 4V, 84 CTA 4V in Laverda AL, LCS and M SP combines

Applies to

AL quattro from frame 552000001
296 LCS from frame 318200001, 296 LCS-LS from frame 565800001
M 304 SP, M 304 LS / LSI 4WD SP, M 305 SP, M 306 SP, M 306 LS 4WD SP

Contents

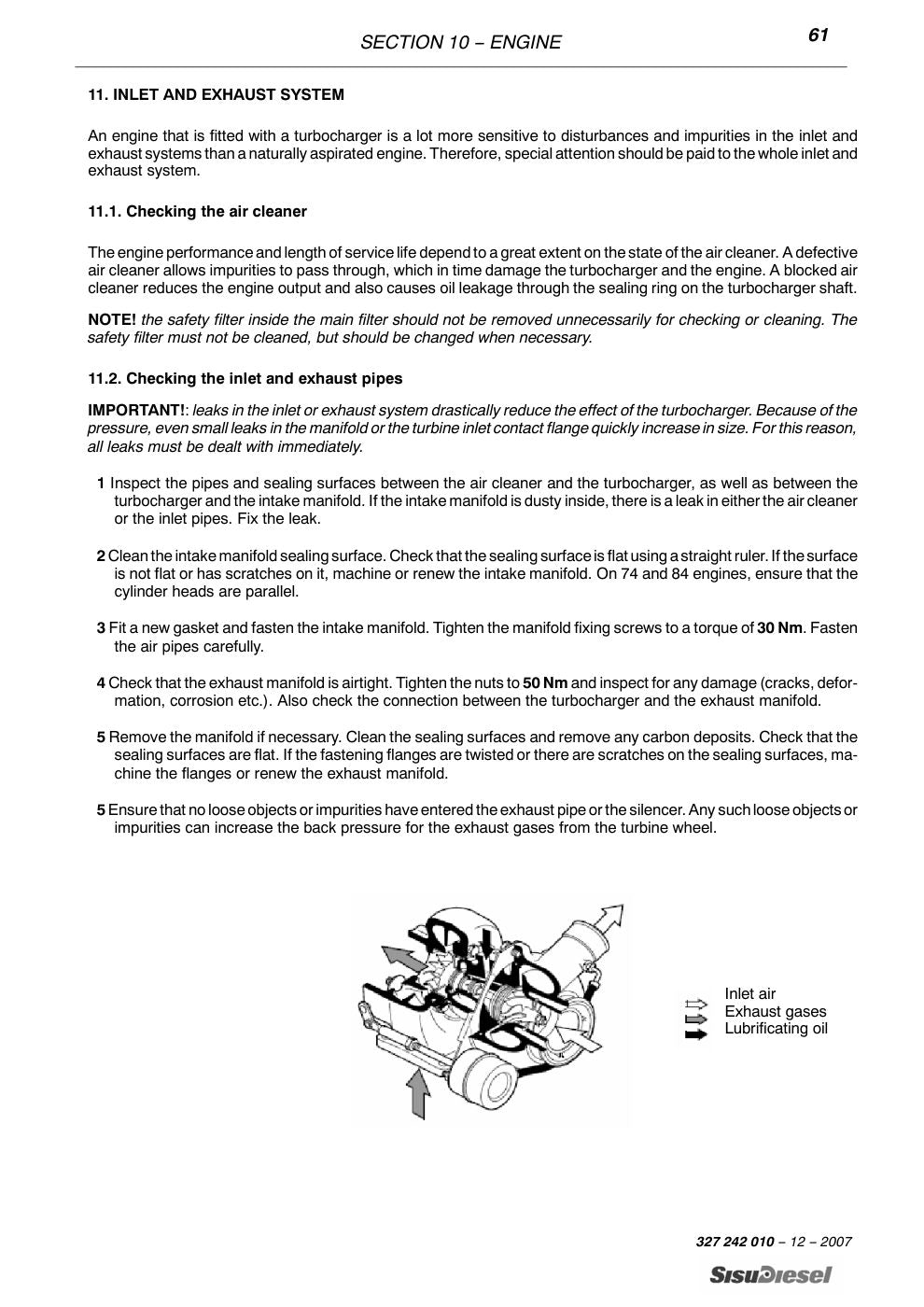

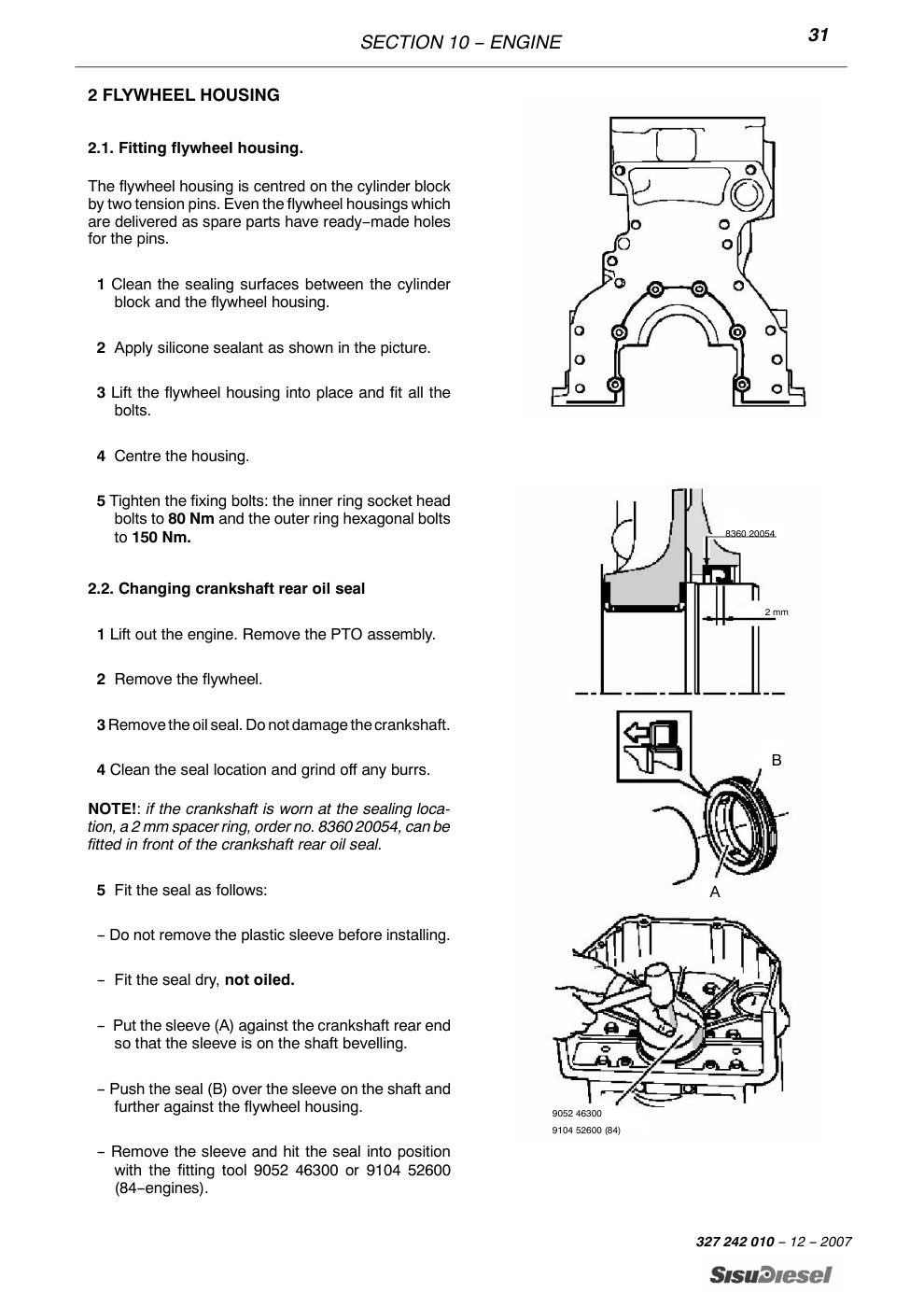

10 Engine – general data, thermostats, special tools, cylinder liners, cylinder head, valve mechanism and tappet adjustment, crankshaft and rear oil seal, connecting rods and pistons, flywheel, timing gears, lubrication, cooling, turbocharger, fuel system, injectors, high-pressure pump, rail, fuel quality, maintenance

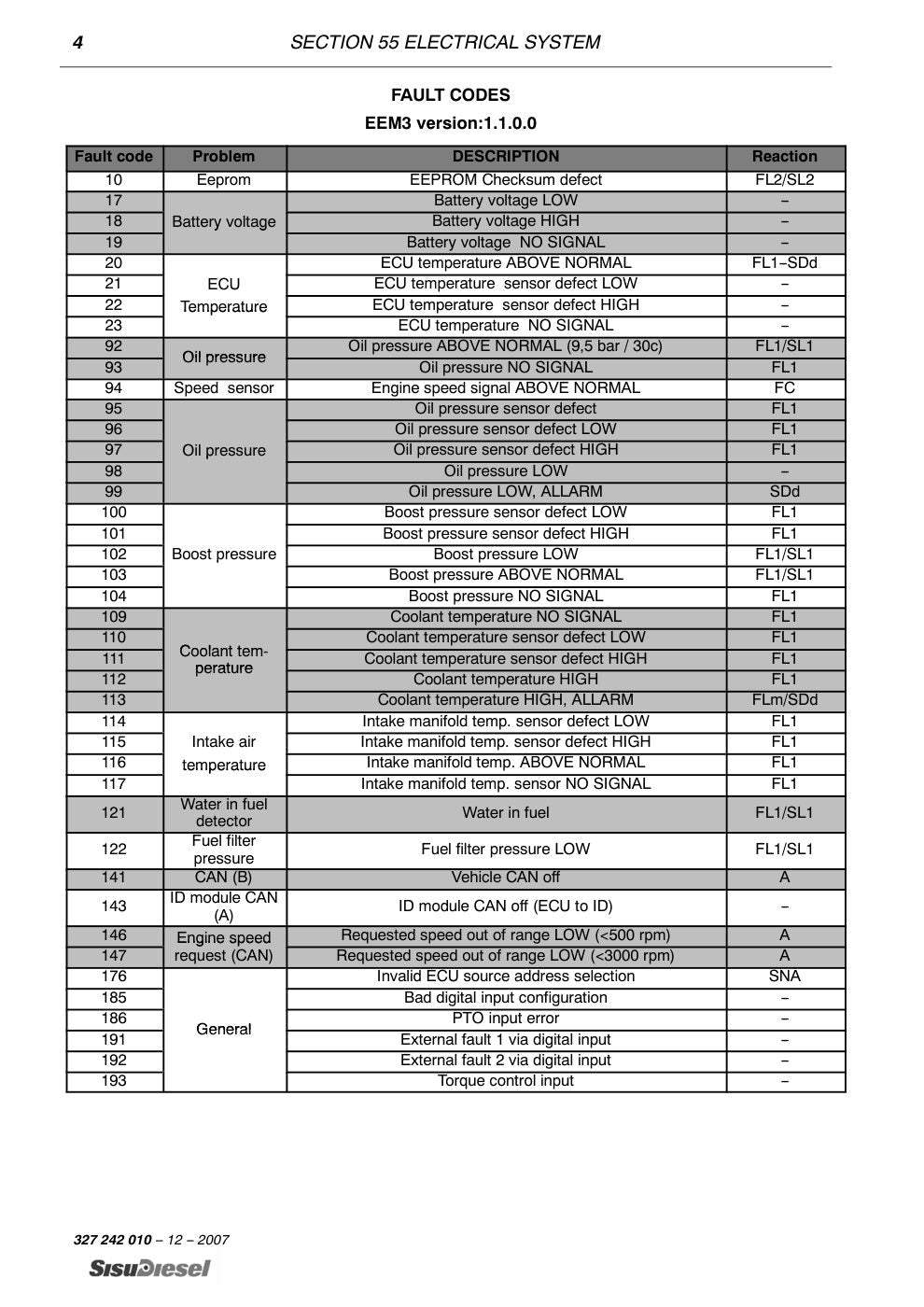

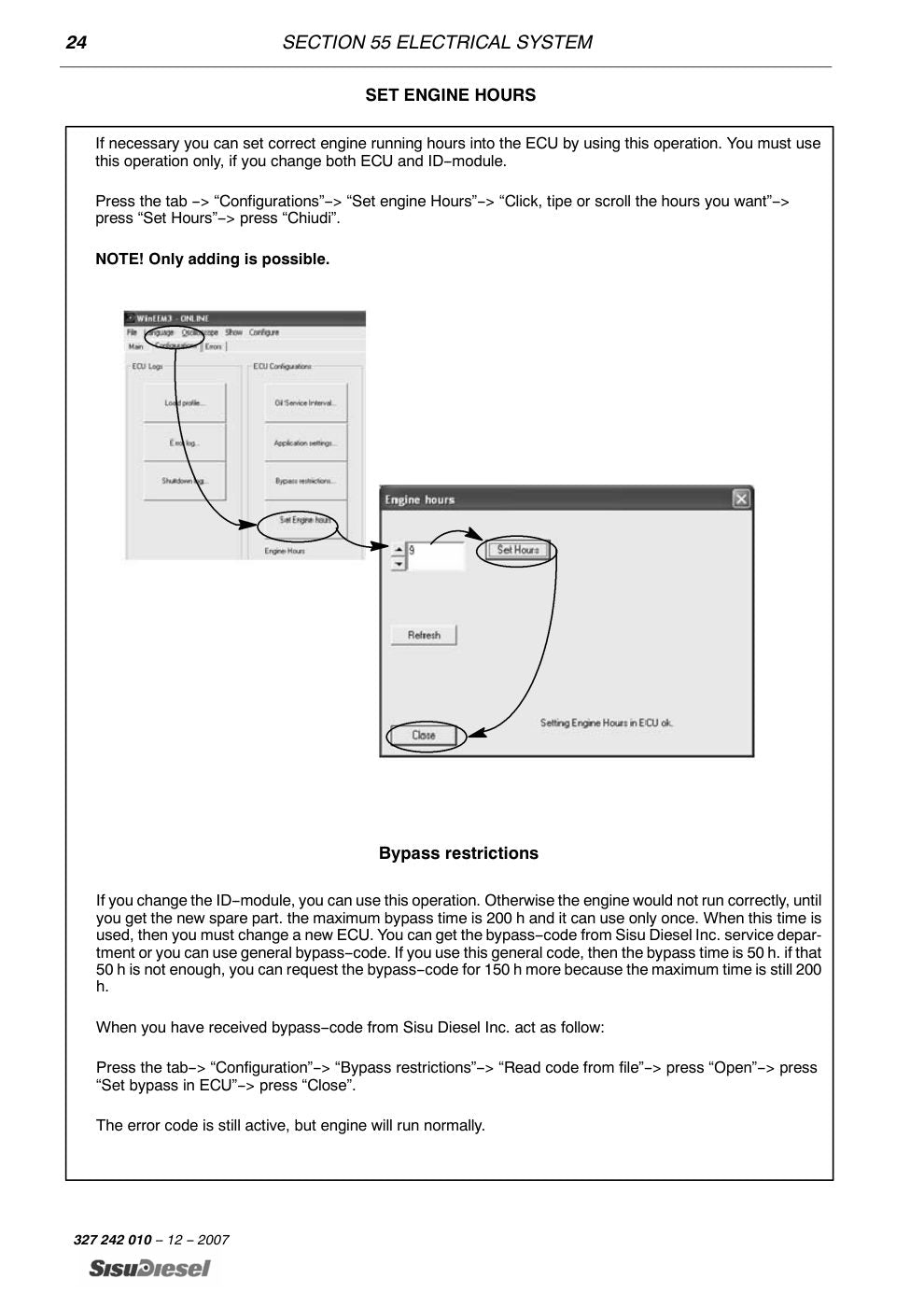

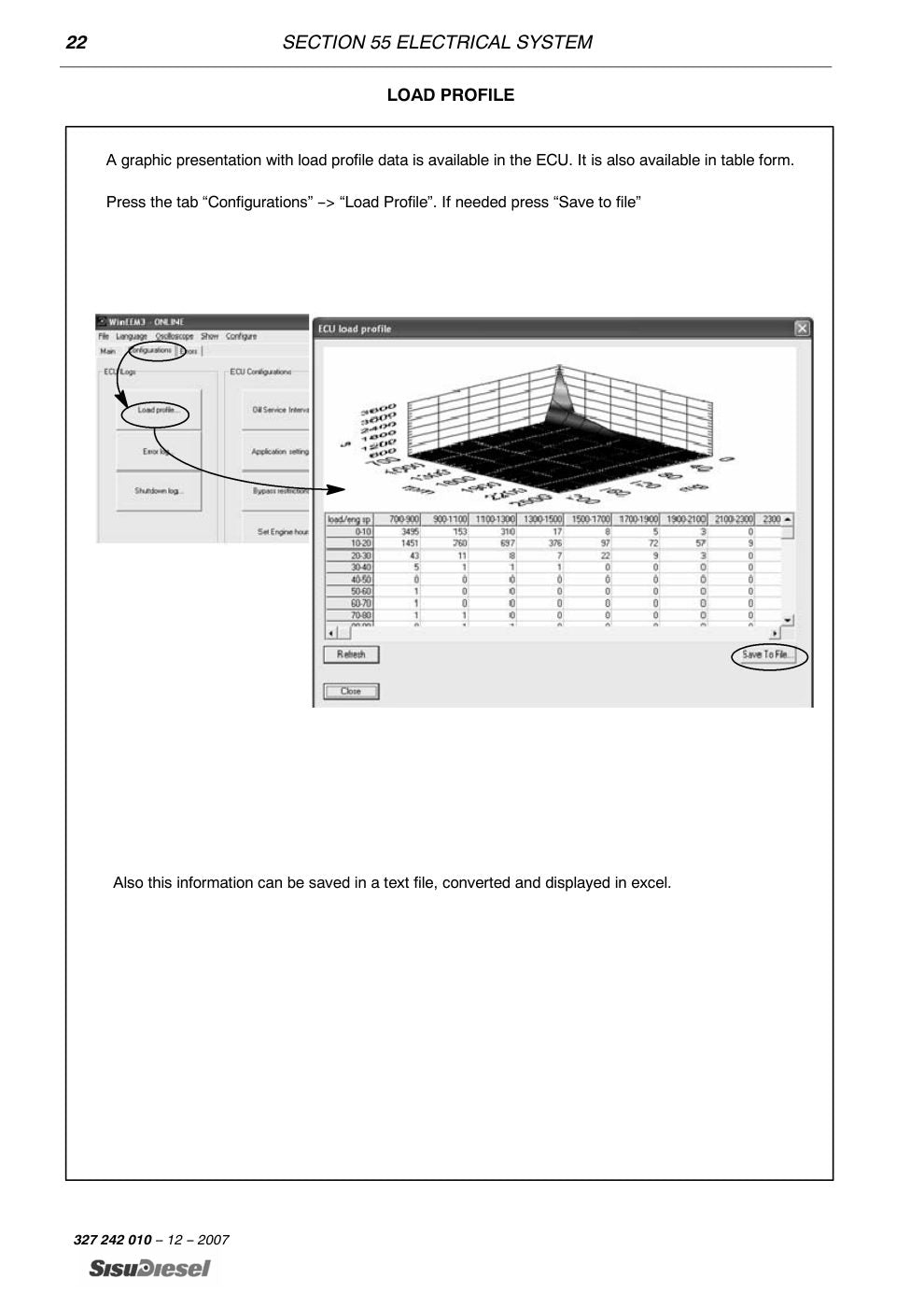

55 Engine electrical system and diagnosis – fault flash codes, WinMM3s diagnosis, ID module change, injector wiring, sensors and connections, alternator, 74 / 84 component location

DETAILS
Size: 5.2 MB
Format: PDF
Language: English
Brand: Laverda
number of pages:125
Type of document: Engine workshop manual
Laverda ref. no.: 327242010

Before you buy

Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
