Laverda M303, M304, M304 LS 4WD, M305, M306, M306 LS 4WD Combine Harvester Workshop Manual
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Laverda M303, M304, M304 LS 4WD, M305, M306, M306 LS 4WD Combine Harvester Workshop Manual – digital workshop manual (502 pages, language: English, format: PDF). The file is available to download after purchase; nothing is shipped.
Before ordering, compare the models in the title and the serial number range with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.
Original Laverda workshop manual (ref. 327142011, 2005) for the M300 series combine harvesters with IVECO NEF and Caterpillar 3126B / C9 engines (255–305 HP). It explains the combine identification number and gives detailed repair, adjustment and diagnostic information for every group of the machine.
Models covered: Laverda M303, M304, M304 LS 4WD, M305, M306, M306 LS 4WD
Highlights

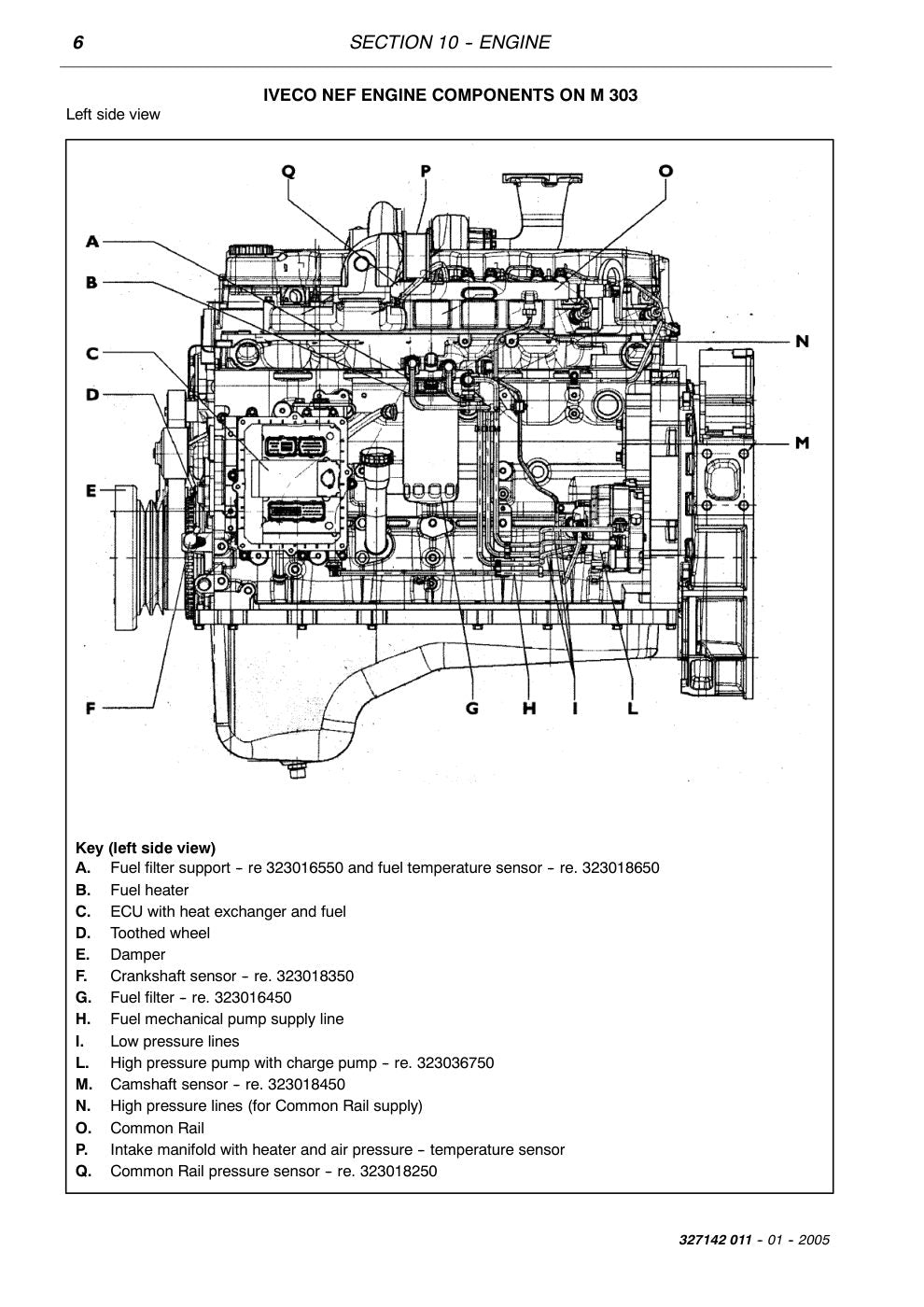

- IVECO NEF and Caterpillar engine data with self-diagnosis fault codes

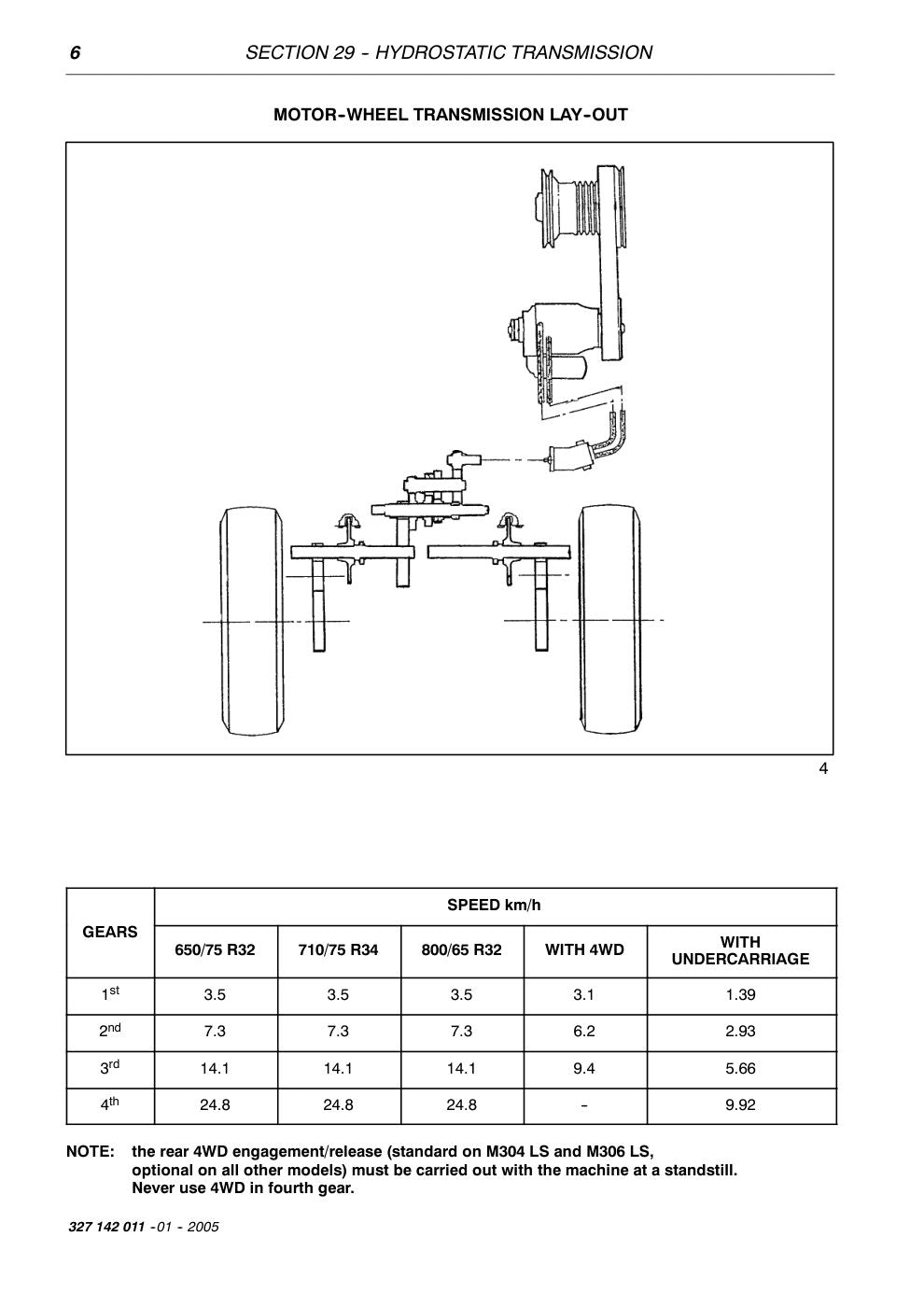

- Hydrostatic transmission diagram and servo control neutral position

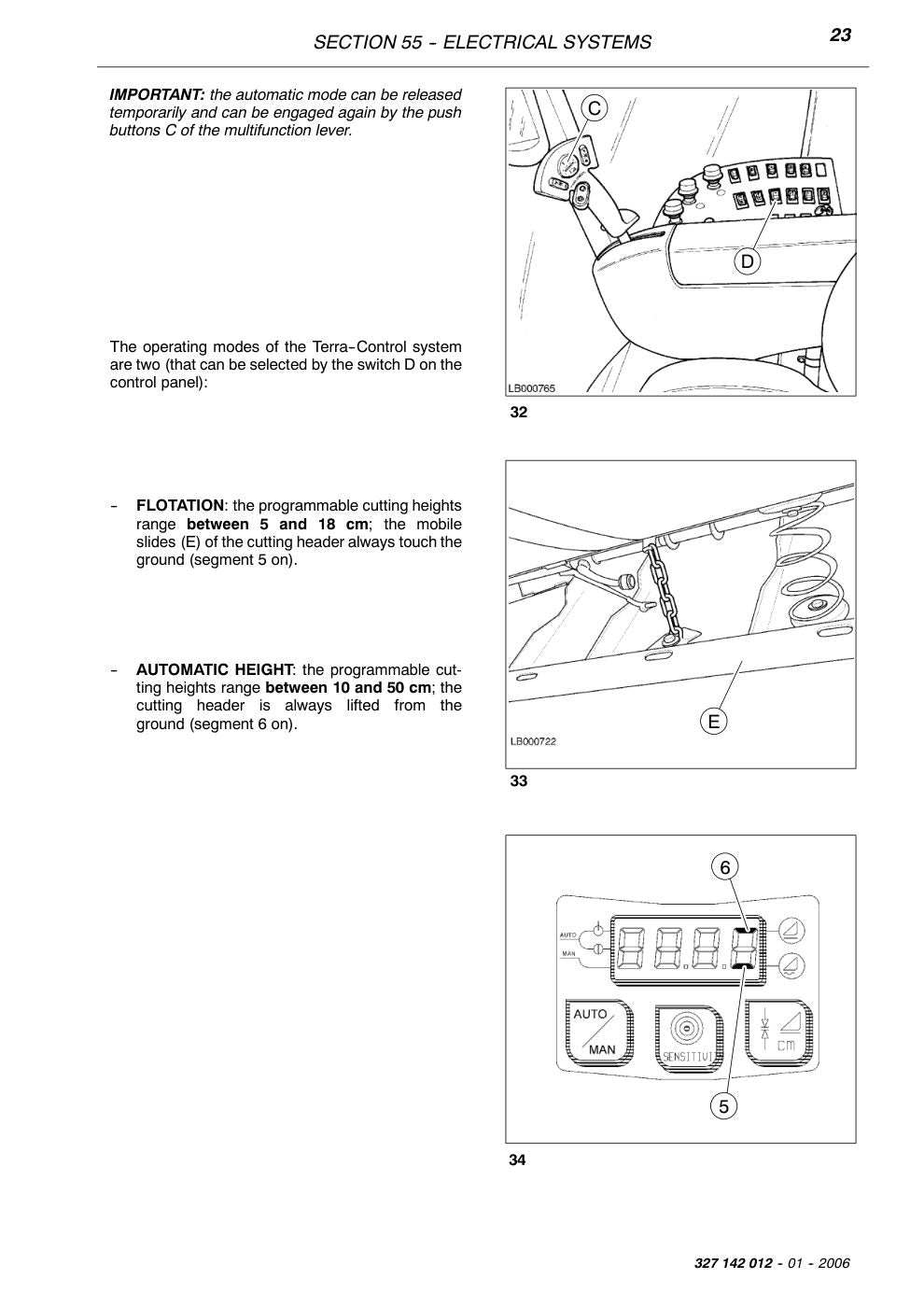

- Service control valve, electrohydraulic engagement, header side flotation, Terra Control and levelling valves
- Agritronic Plus, relays and fuses, multifunction lever, drum / reel / fan variator controls
- Manual and automatic climate control
- LS and LSI levelling, OPS, grain storage and unloading
Contents
- 00 General information (capacities, tyres, belt tension, rotation speeds)
- 10 Engine (specifications, service, self-diagnosis)
- 14 Live PTO
- 21 Transmission
- 25 Front drive axle
- 29 Hydrostatic transmission
- 33 Brakes and controls
- 35 Hydraulic systems
- 41 Steering
- 44 Axles and wheels
- 50 Cab conditioning / climate control
- 55 Electrical systems
- 58 Attachments / headers
- 60 Product feeding
- 66 Threshing
- 72 Separation
- 73 Straw chopper
- 74 Cleaning
- 80 Grain storage
- Grain / maize conversion
See also: Update appendix 327232011 for 2007–2008 SP models (available in our shop).
DETAILS
Size: 18.7 MB
Format: PDF
Language: English
Brand: Laverda
number of pages:502
Type of document: Workshop manual
Laverda ref. no.: 327142011
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
