Laverda 205 REV, 225 REV, 255 REV, 256 REV Combine Workshop Manual Update 327163011
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Laverda 205 REV, 225 REV, 255 REV, 256 REV Combine Workshop Manual Update 327163011 – digital workshop manual supplement (17 pages, language: English, format: PDF). The file is available to download after purchase; nothing is shipped.
Before ordering, compare the models in the title and the serial number range with the identification plate on your machine. Not sure this is the right manual? Contact us with your model and serial number.

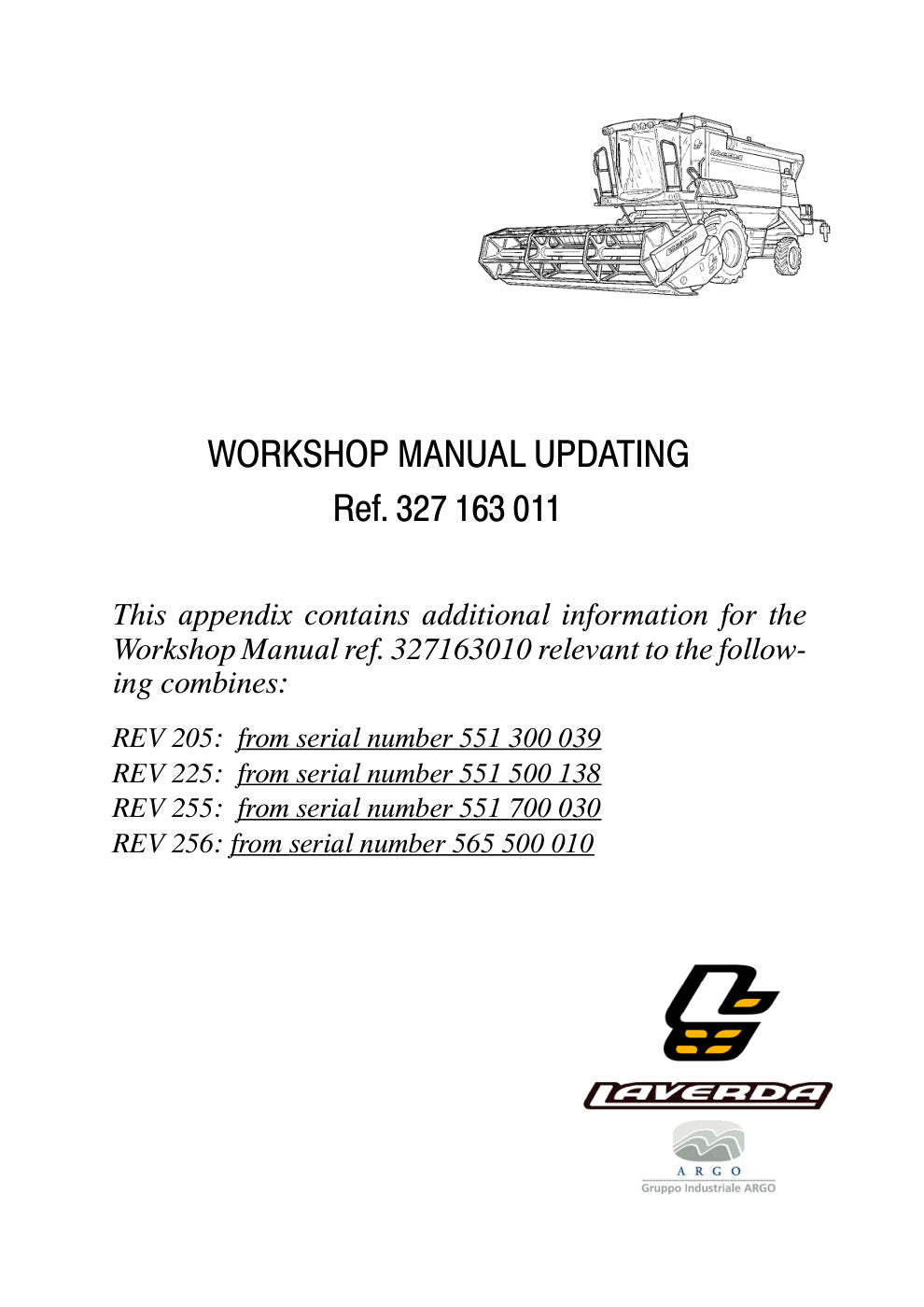

First update (appendix ref. 327163011, March 2006) to the Laverda REV workshop manual 327163010. It contains the revised hydraulic and electrical information for combines produced from the serial numbers below.
Models covered: Laverda 205 REV, 225 REV, 255 REV, 256 REV
Applies to
- REV 205 from serial number 551 300 039
- REV 225 from serial number 551 500 138
- REV 255 from serial number 551 700 030
- REV 256 from serial number 565 500 010
Contents

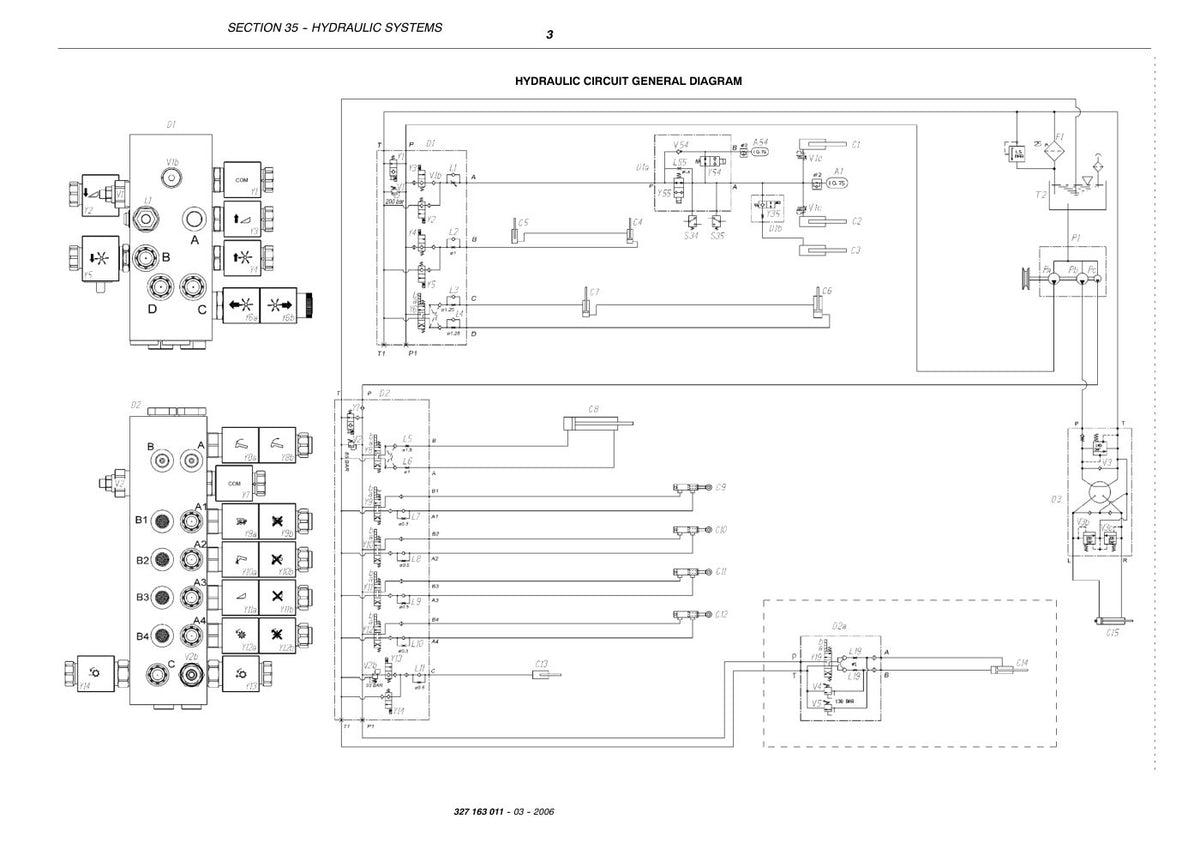

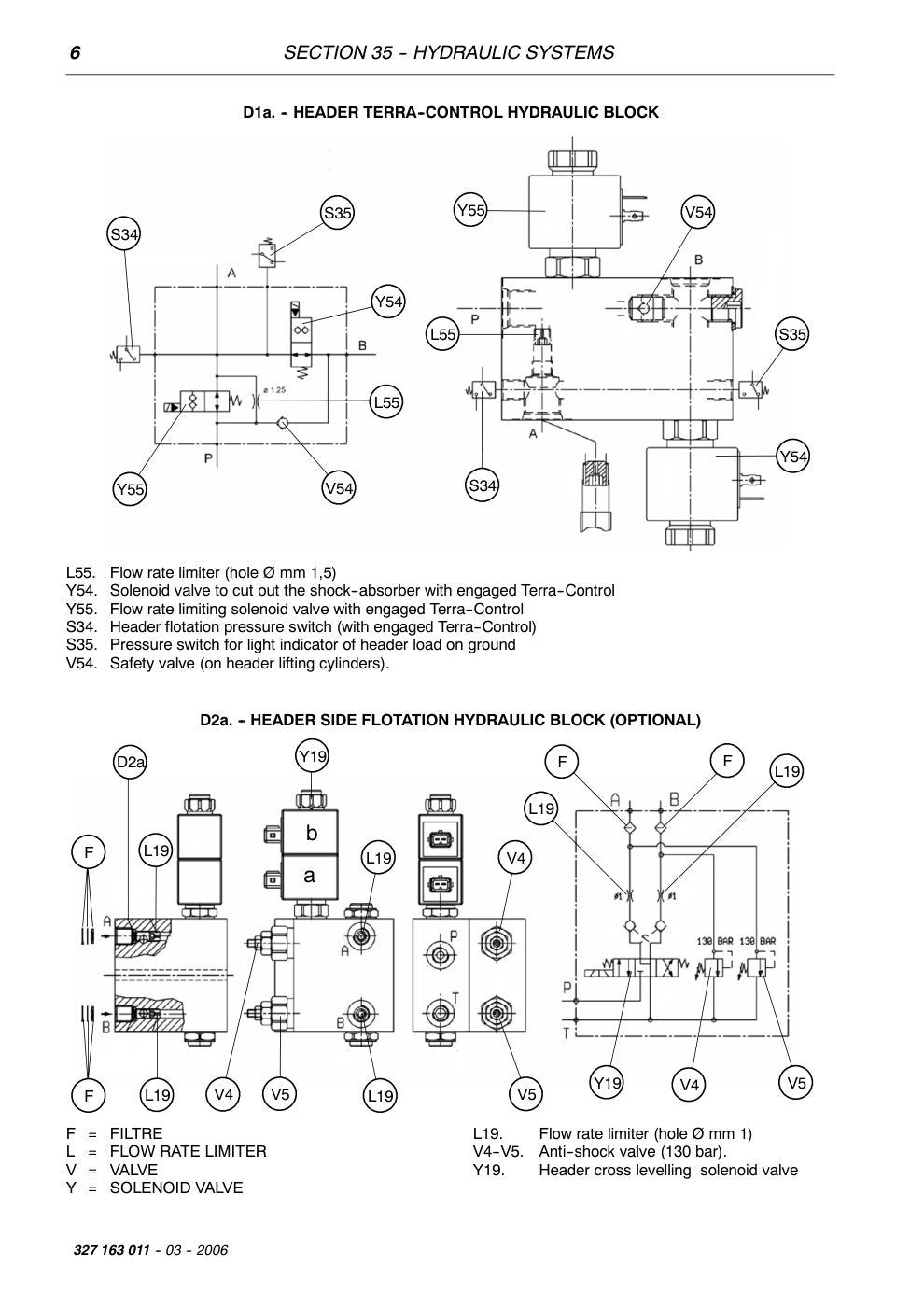

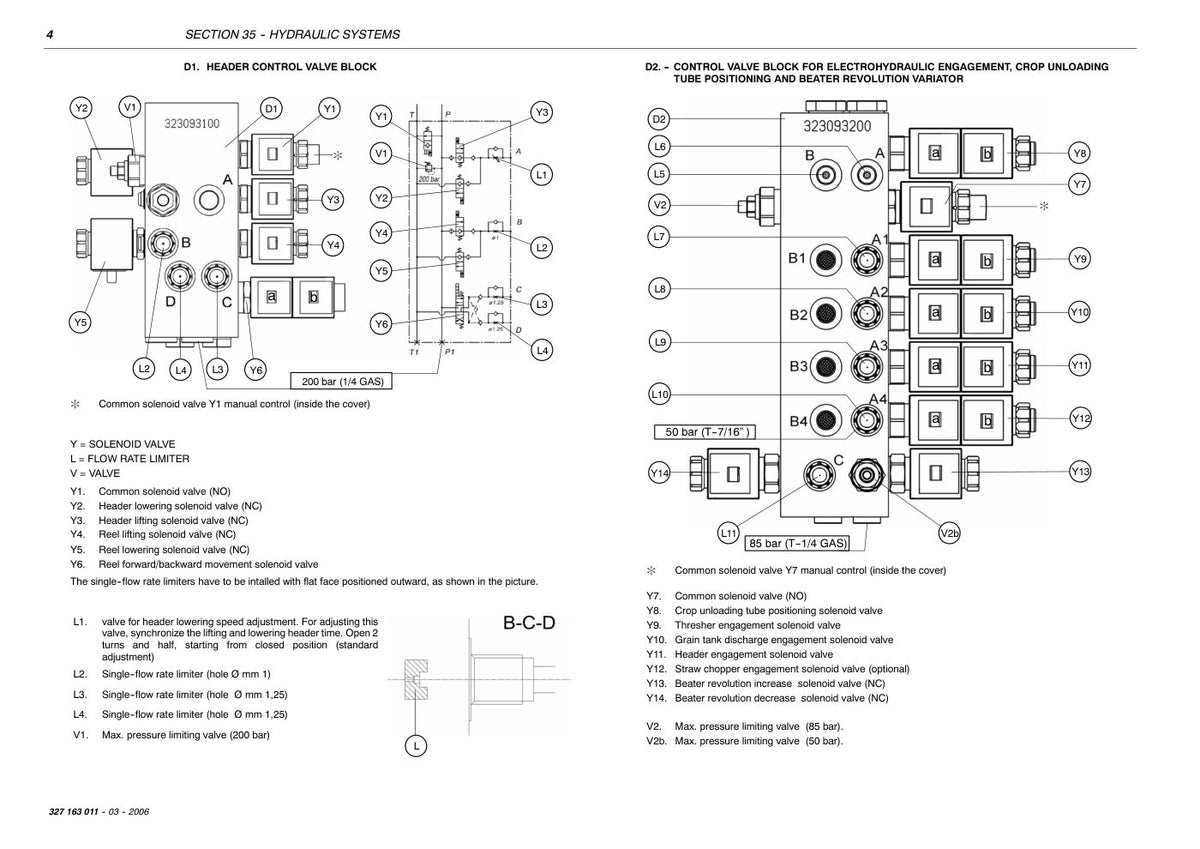

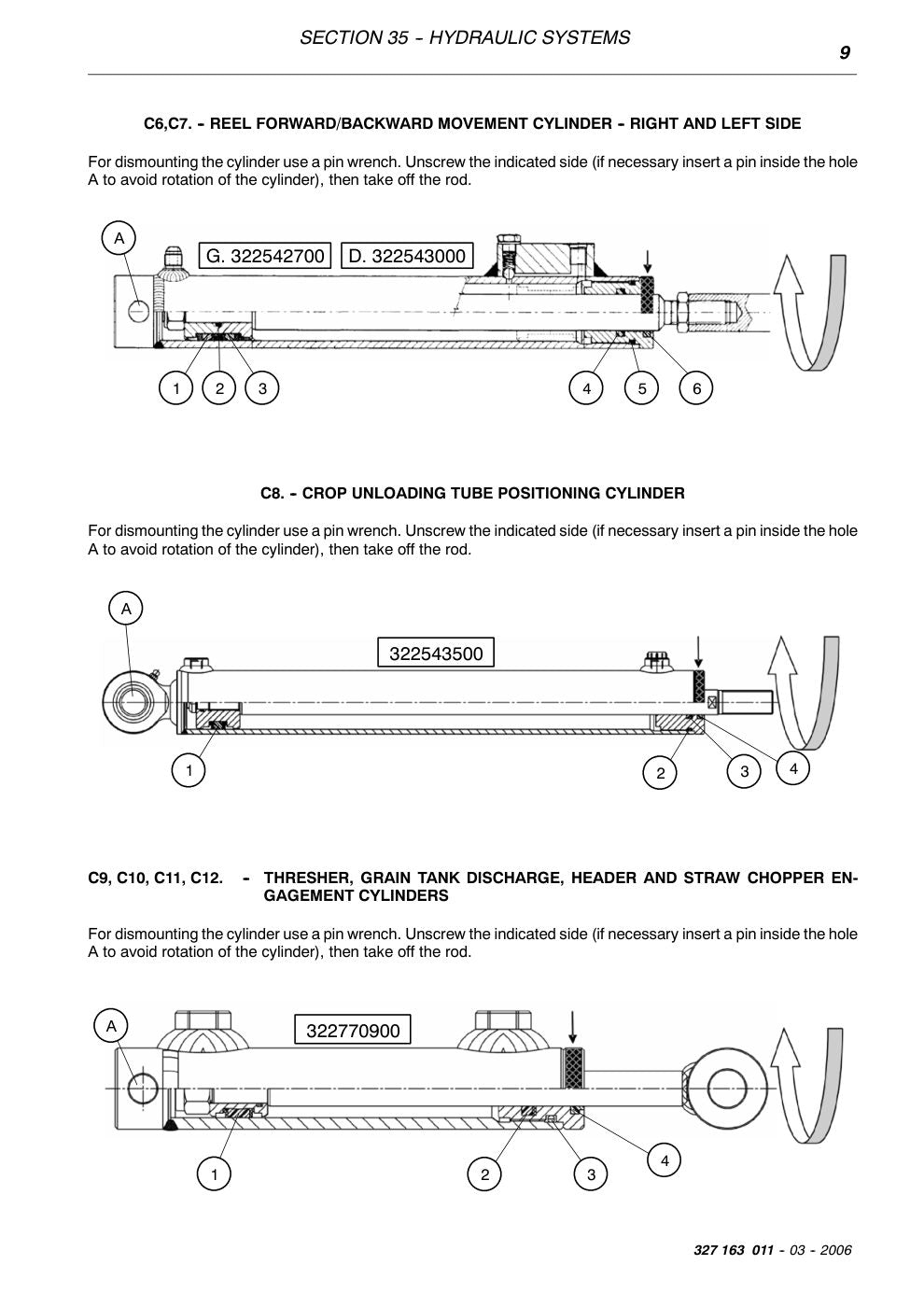

- 35 Hydraulic systems – component location, hydraulic circuit general diagram, cylinders and control valves

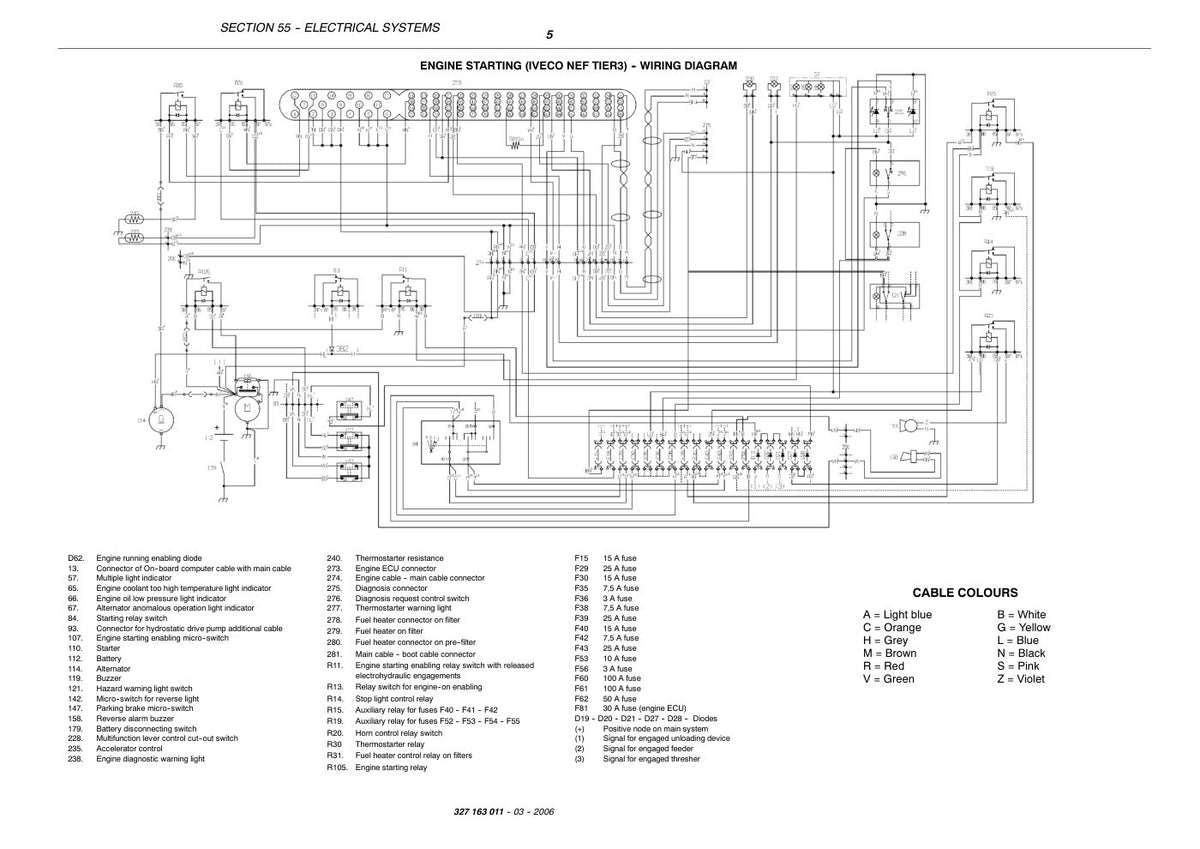

- 55 Electrical systems – updated wiring diagrams
See also: Use together with the main workshop manual 327163010 (available in our shop).
DETAILS
Size: 1.1 MB
Format: PDF
Language: English
Brand: Laverda
number of pages:17
Type of document: Workshop manual supplement
Laverda ref. no.: 327163011
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
