- Sku: DANA-603-211-094-SAEZ
- Vendor: Dana
Dana Spicer 603/211/094 Steering Axle with Drop Box Parts Catalog for Saez
Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.
Dana Spicer 603/211/094 Steering Axle with Drop Box Parts Catalog for Saez – digital parts catalog (30 pages, language: Italian, French, English, German, format: PDF). The file is available to download after purchase; nothing is shipped.
Before ordering, compare the Dana / Spicer type number in the title (for example 212/109) with the TYPE number on the identification plate of your axle. Not sure this is the right catalog? Contact us with the plate data and your machine model.

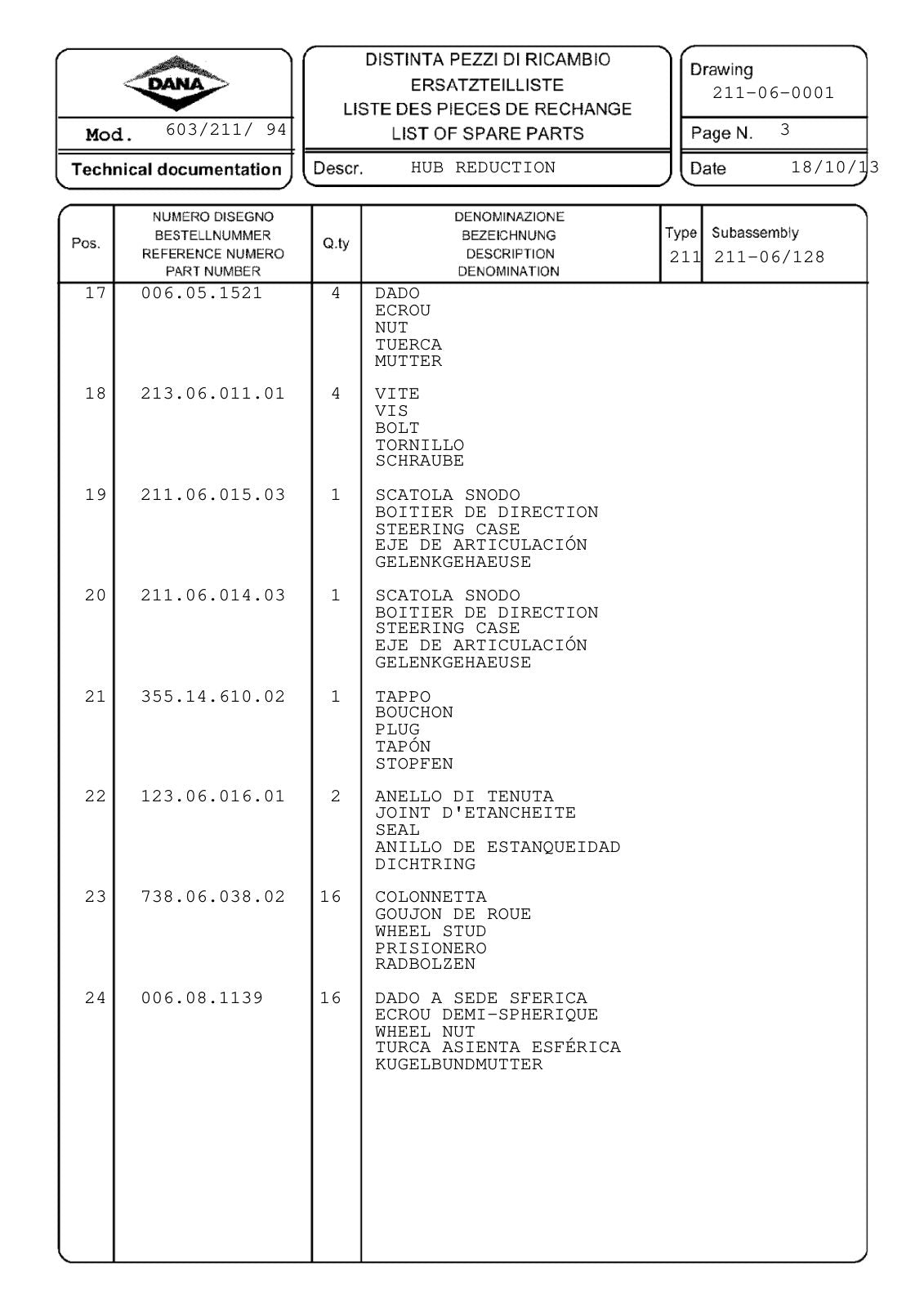

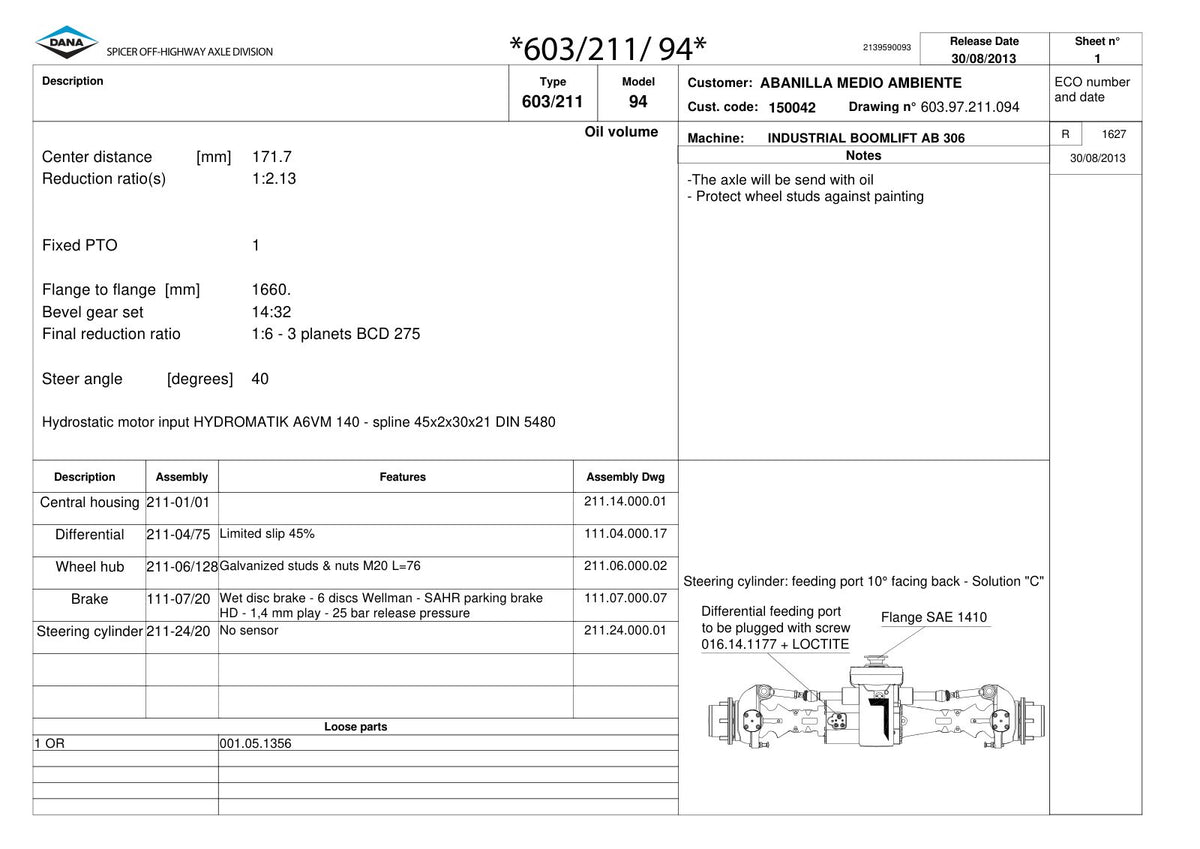

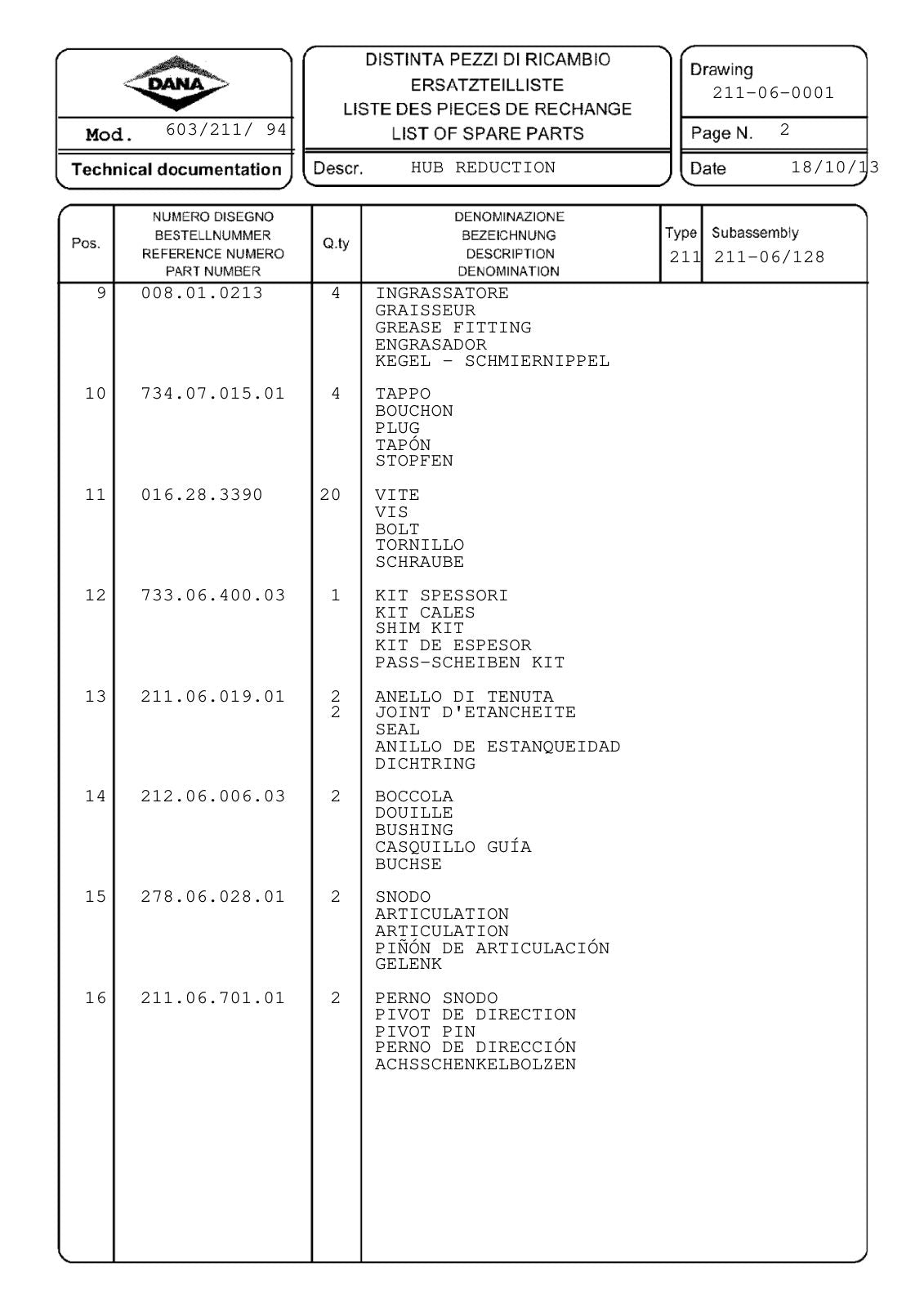

Original Dana (Spicer Off-Highway, formerly Clark-Hurth) spare parts list for the steering drive axle with drop box type 603/211/094, as built for Saez. Dana Spicer axles from Arco, Italy are fitted to telehandlers, tractors, wheeled excavators, backhoe loaders and other machines from many manufacturers; the type number on the axle identification plate tells you exactly which version you have. The catalog starts with the assembly sheet (ratios, brake, differential and steering data), followed by exploded-view drawings of each sub-assembly and parts lists with Dana part numbers, quantities and descriptions in Italian, French, English and German.
Dana / Spicer type: 603/211/094
Component: Steering drive axle with drop box
Customer: Saez
DETAILS
Size: 0.8 MB
Format: PDF
Language: Italian, French, English, German
Brand: Dana Spicer
number of pages:30
Type of document: Parts catalog
Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
