Dana Spicer 602/212/064 Steering Axle with Drop Box Parts Catalog for Italmacchine 327 Telehandler

Name: Dana Spicer 602/212/064 Steering Axle with Drop Box Parts Catalog for Italmacchine 327 Telehandler
Brand: Dana
SKU: DANA-602-212-064-ITALMACCHINE
Price: 15.0 EUR
Availability: InStock

€15,00 EUR

Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product variants

Quantity

I agree to the Terms of Service.

Product description

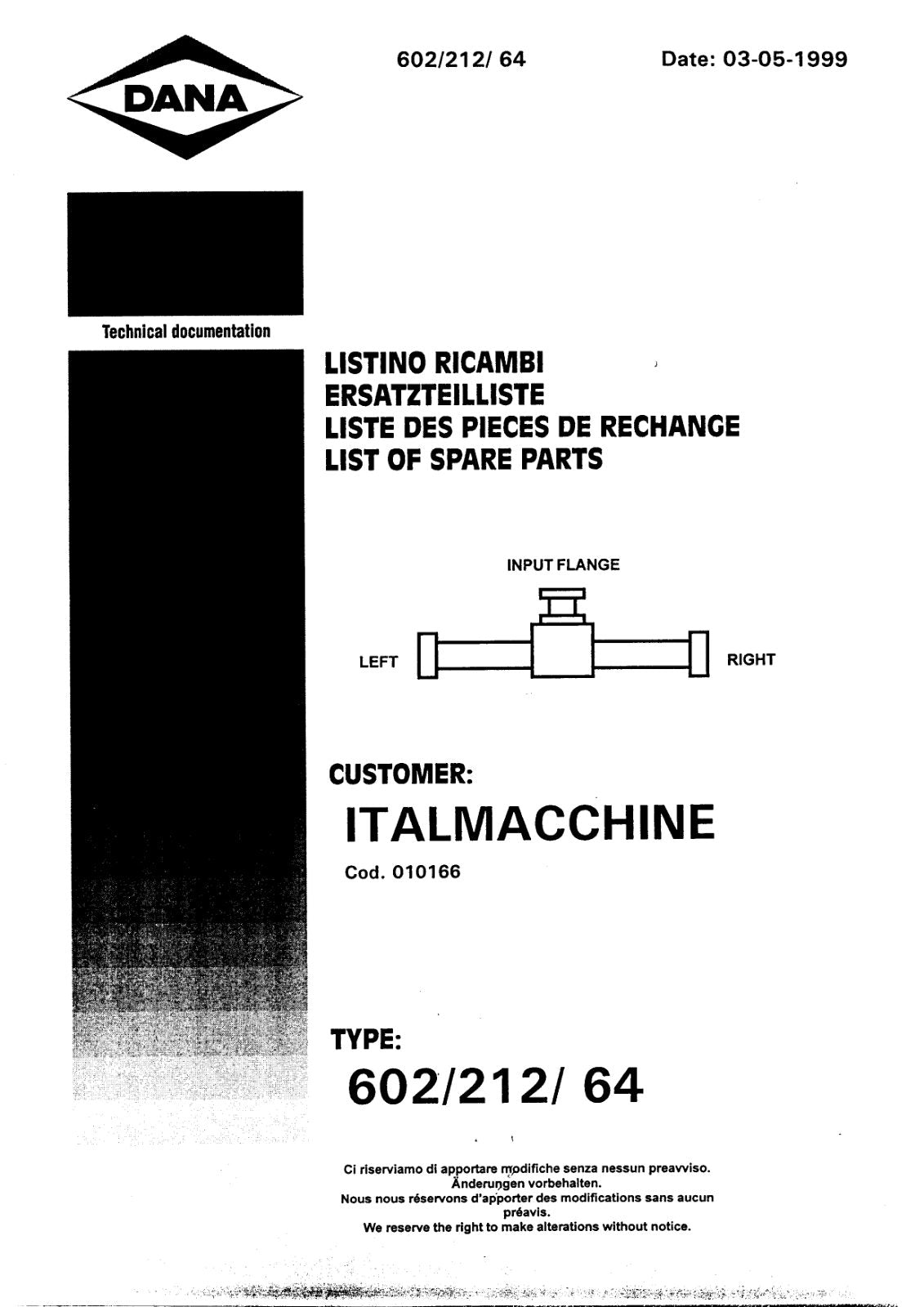

Dana Spicer 602/212/064 Steering Axle with Drop Box Parts Catalog for Italmacchine 327 Telehandler – digital parts catalog (22 pages, language: Italian, French, English, German, format: PDF). The file is available to download after purchase; nothing is shipped.

Before ordering, compare the Dana / Spicer type number in the title (for example 212/109) with the TYPE number on the identification plate of your axle. Not sure this is the right catalog? Contact us with the plate data and your machine model.

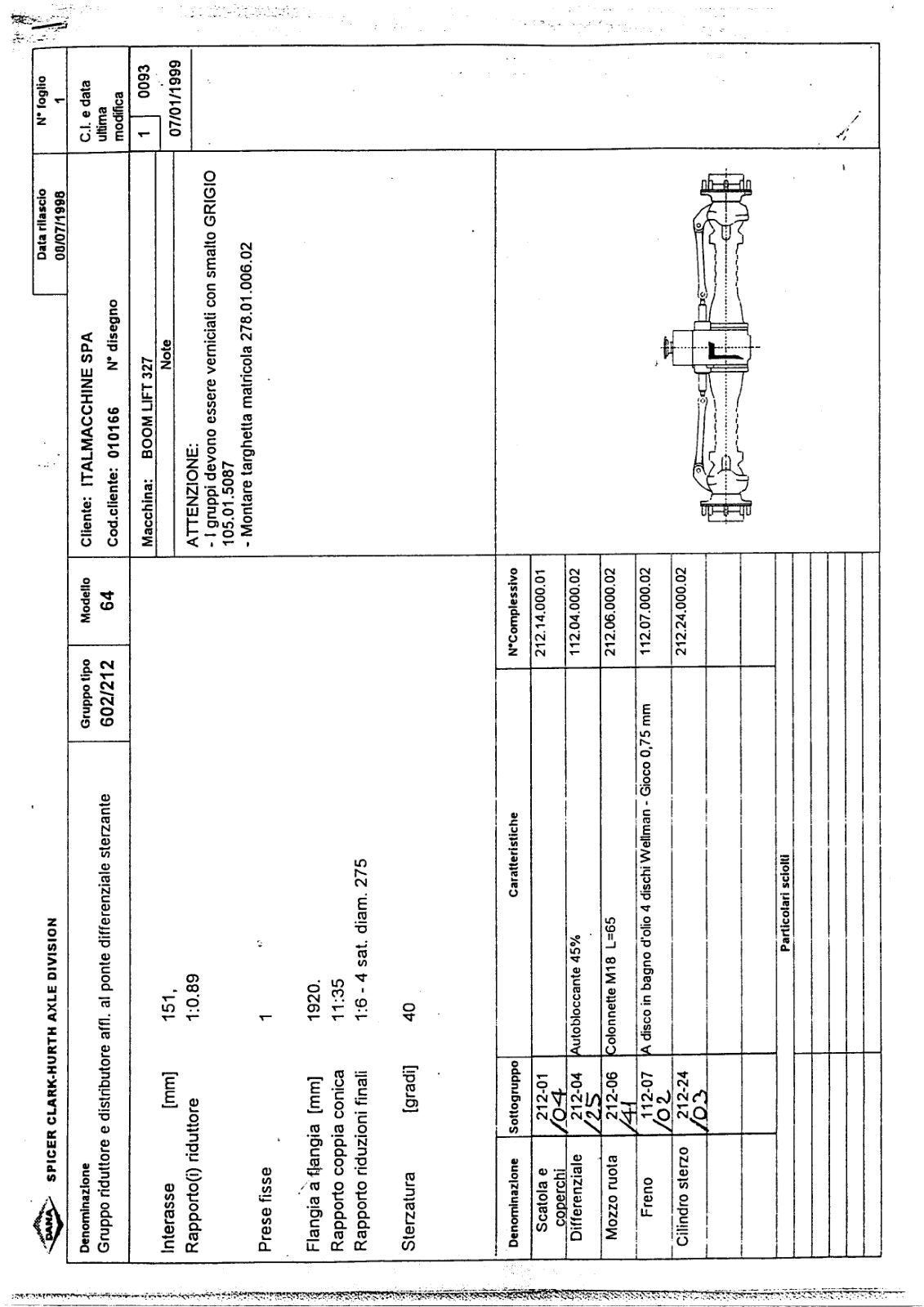

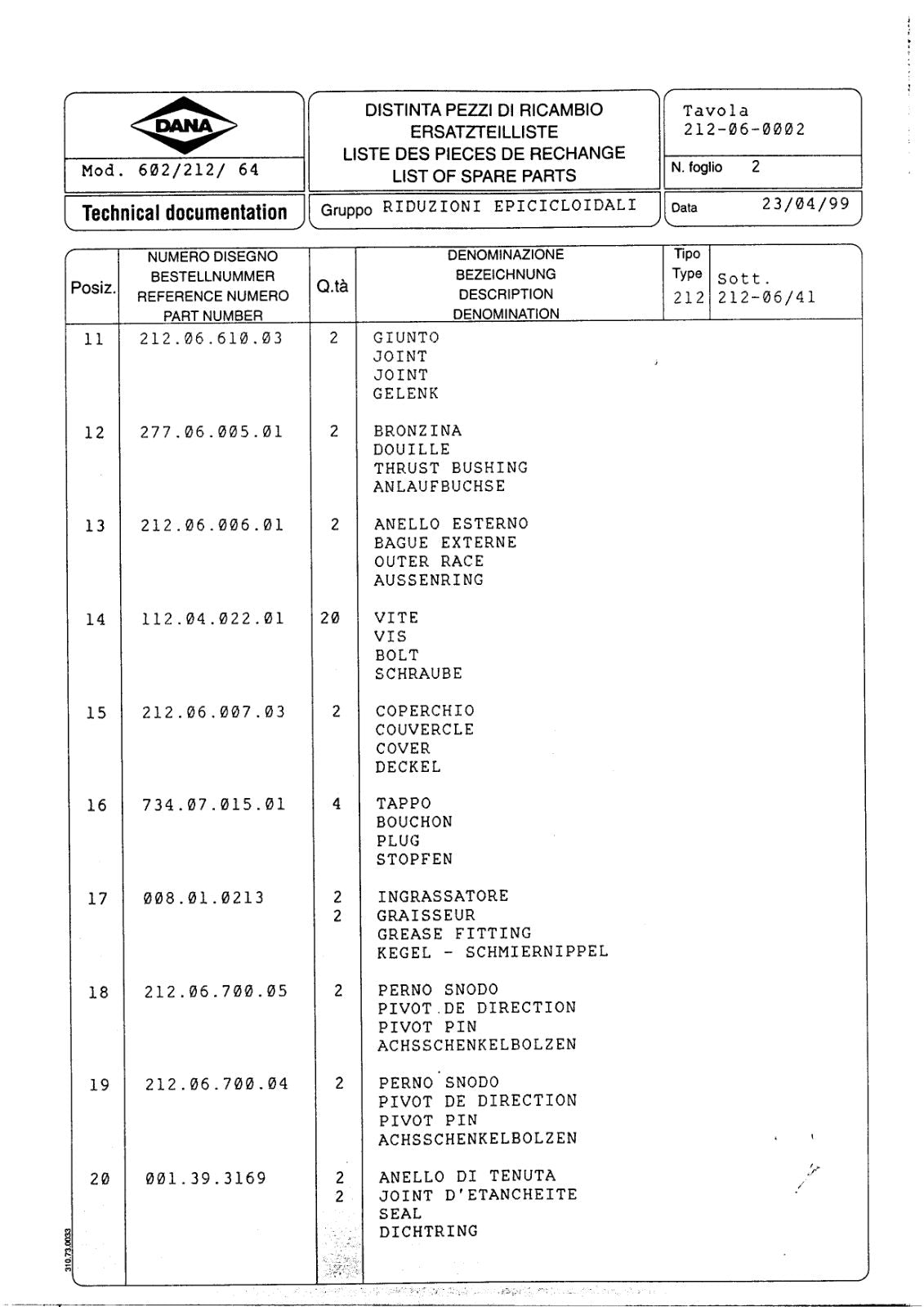

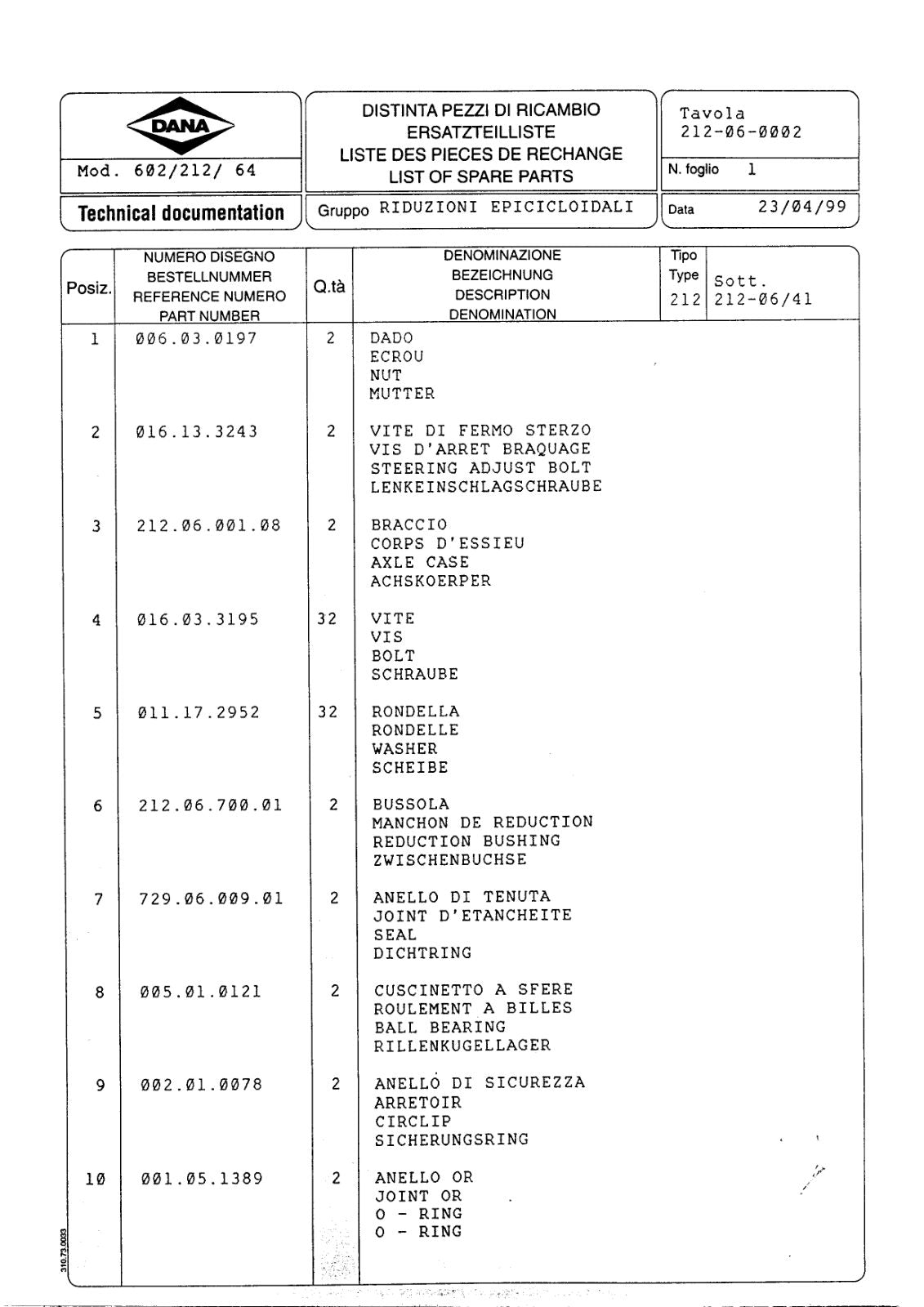

Original Dana (Spicer Off-Highway, formerly Clark-Hurth) spare parts list for the steering drive axle with drop box type 602/212/064, as built for Italmacchine 327 Telehandler. Dana Spicer axles from Arco, Italy are fitted to telehandlers, tractors, wheeled excavators, backhoe loaders and other machines from many manufacturers; the type number on the axle identification plate tells you exactly which version you have. The catalog starts with the assembly sheet (ratios, brake, differential and steering data), followed by exploded-view drawings of each sub-assembly and parts lists with Dana part numbers, quantities and descriptions in Italian, French, English and German.

Dana / Spicer type: 602/212/064
Component: Steering drive axle with drop box
Customer: Italmacchine
Machine: 327 Telehandler
Catalog date: 03.05.1999

Contents

Drop box / transfer gearbox
Loose parts
Bevel gear set
Wheel hub and epicyclic final drive
Steering cylinder
Axle housing and covers
Differential
Brakes

DETAILS
Size: 0.8 MB
Format: PDF
Language: Italian, French, English, German
Brand: Dana Spicer
number of pages:22
Type of document: Parts catalog

Before you buy

Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
