Dana Spicer 602/212/062 Steering Axle with Drop Box Parts Catalog for Manitou P 0170PS Telehandler

Name: Dana Spicer 602/212/062 Steering Axle with Drop Box Parts Catalog for Manitou P 0170PS Telehandler
Brand: Dana
SKU: DANA-602-212-062
Price: 15.0 EUR
Availability: InStock

€15,00 EUR

Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product variants

Quantity

I agree to the Terms of Service.

Product description

Dana Spicer 602/212/062 Steering Axle with Drop Box Parts Catalog for Manitou P 0170PS Telehandler – digital parts catalog (24 pages, language: Italian, French, English, German, format: PDF). The file is available to download after purchase; nothing is shipped.

Before ordering, compare the Dana / Spicer type number in the title (for example 212/109) with the TYPE number on the identification plate of your axle. Not sure this is the right catalog? Contact us with the plate data and your machine model.

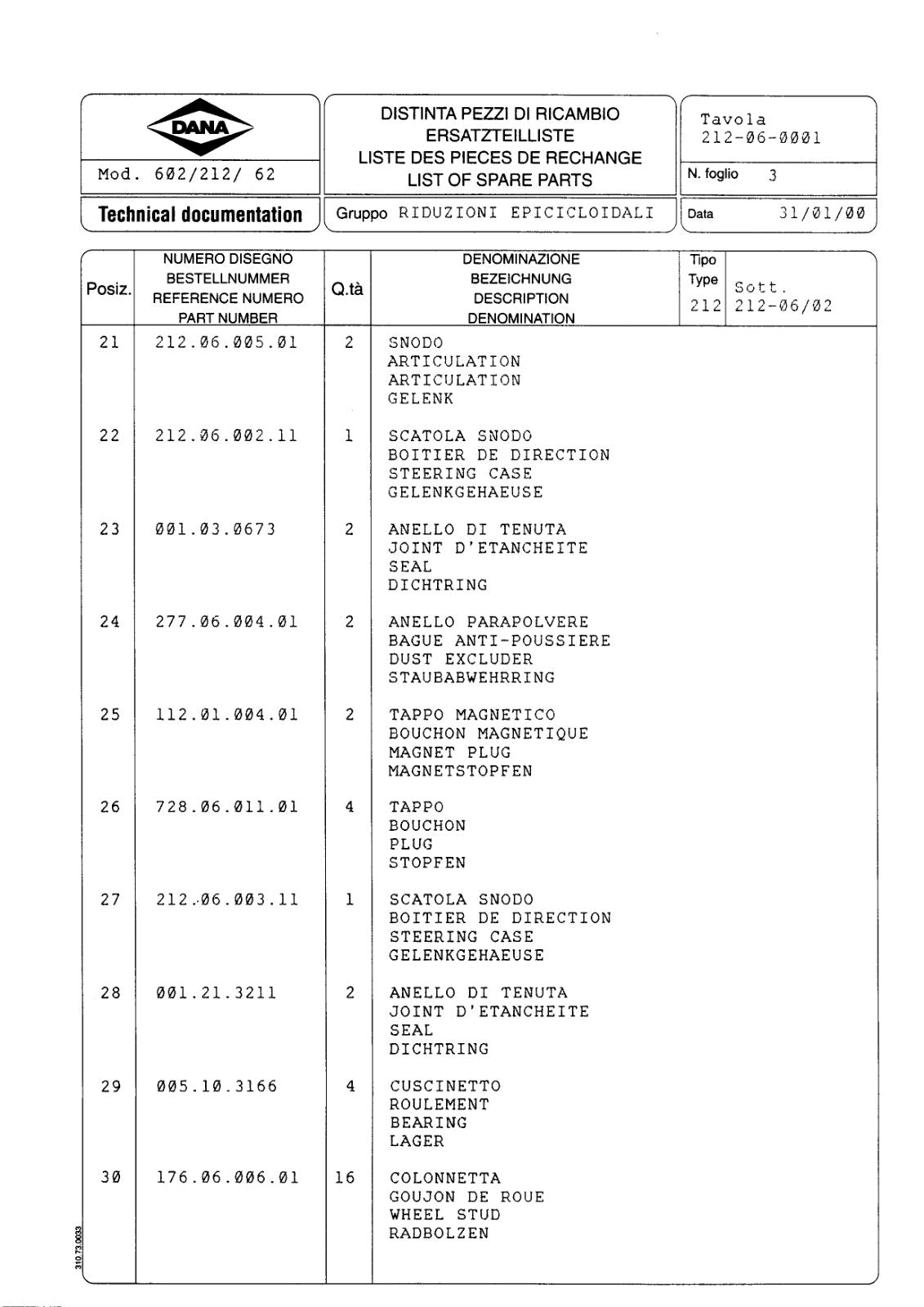

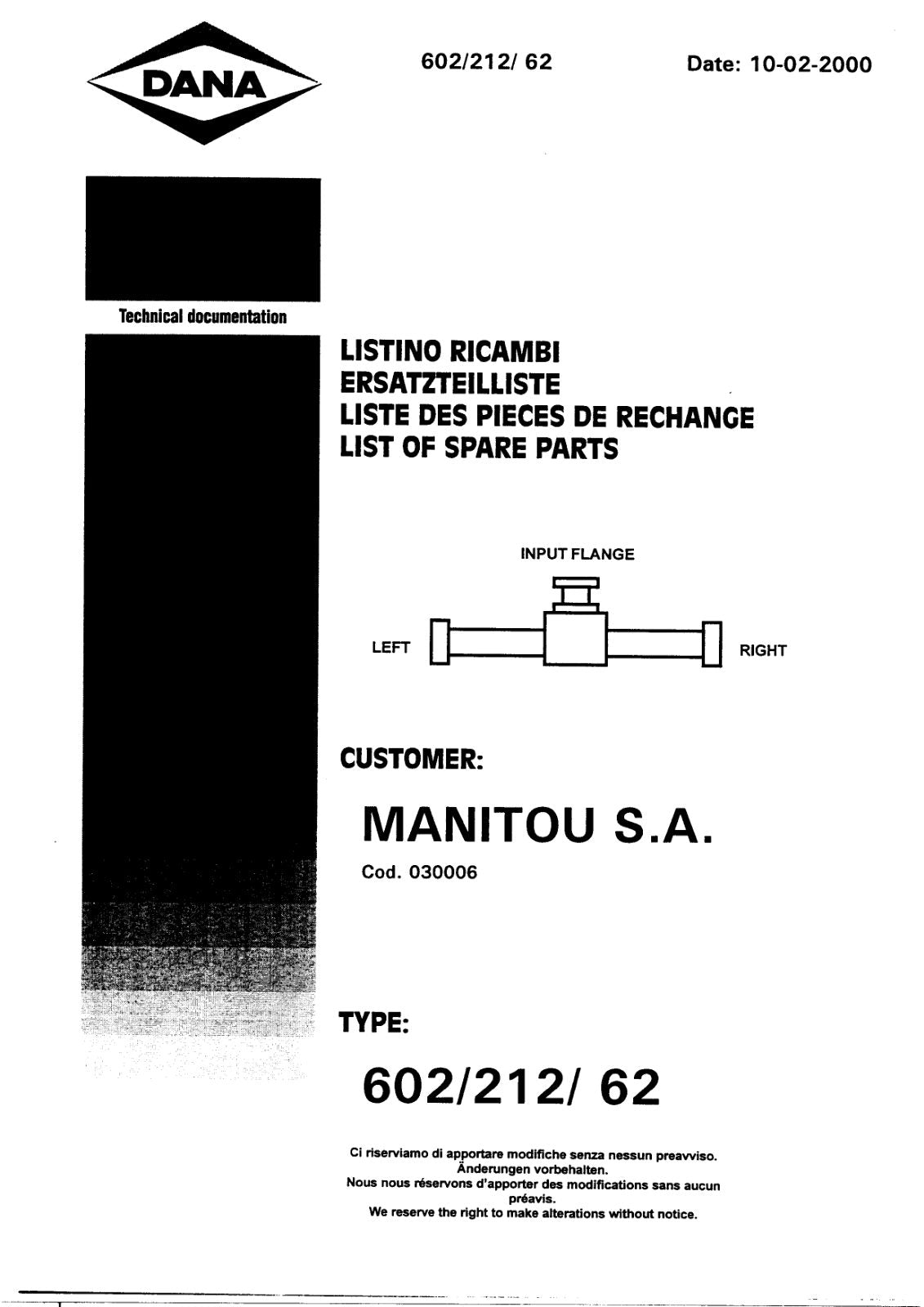

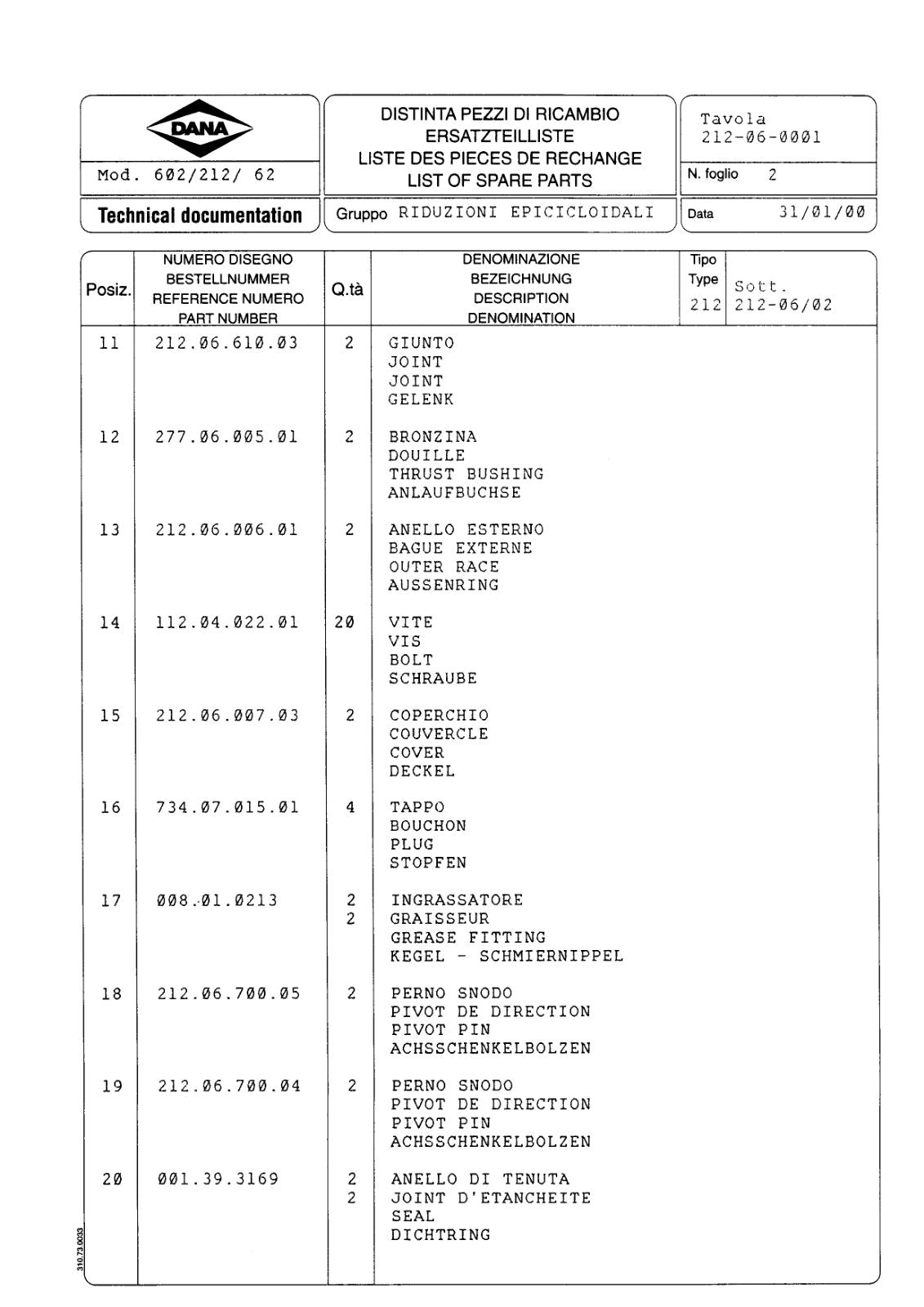

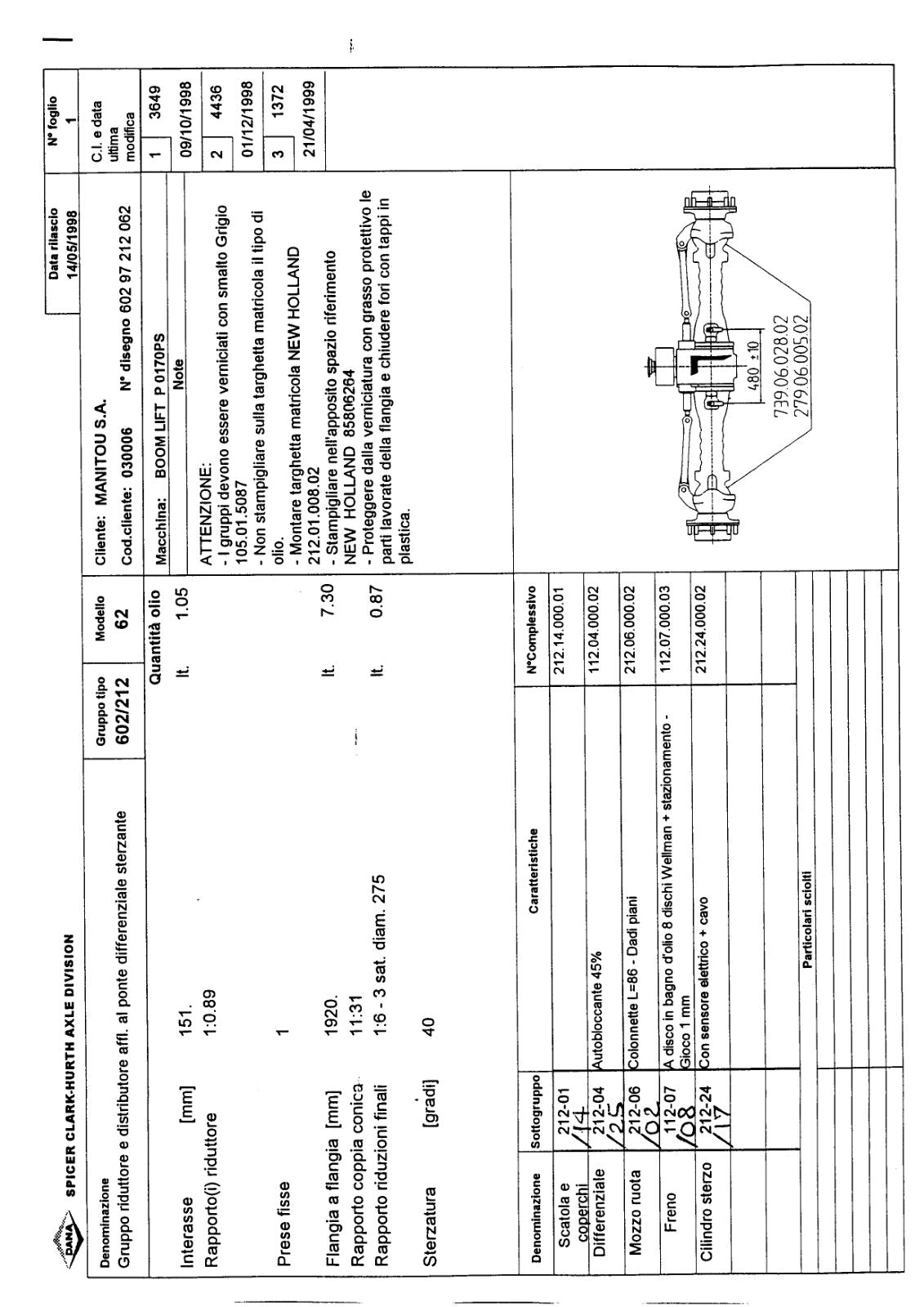

Original Dana (Spicer Off-Highway, formerly Clark-Hurth) spare parts list for the steering drive axle with drop box type 602/212/062, as built for Manitou P 0170PS Telehandler. Dana Spicer axles from Arco, Italy are fitted to telehandlers, tractors, wheeled excavators, backhoe loaders and other machines from many manufacturers; the type number on the axle identification plate tells you exactly which version you have. The catalog starts with the assembly sheet (ratios, brake, differential and steering data), followed by exploded-view drawings of each sub-assembly and parts lists with Dana part numbers, quantities and descriptions in Italian, French, English and German.

Dana / Spicer type: 602/212/062
Component: Steering drive axle with drop box
Customer: Manitou
Machine: P 0170PS Telehandler
Catalog date: 10.02.2000

Contents

Parking brake
Drop box / transfer gearbox
Loose parts
Bevel gear set
Wheel hub and epicyclic final drive
Axle housing and covers
Differential
Brakes
Steering cylinder

DETAILS
Size: 0.9 MB
Format: PDF
Language: Italian, French, English, German
Brand: Dana Spicer
number of pages:24
Type of document: Parts catalog

Before you buy

Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.
