Dana Spicer 212/604 Steering Axle Parts Catalog for Kramer 3006-3207-4107 20KM/H Telehandler

Name: Dana Spicer 212/604 Steering Axle Parts Catalog for Kramer 3006-3207-4107 20KM/H Telehandler
Brand: Dana
SKU: DANA-212-604-KRAMER
Price: 15.0 EUR
Availability: InStock

€15,00 EUR

Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product variants

Quantity

I agree to the Terms of Service.

Product description

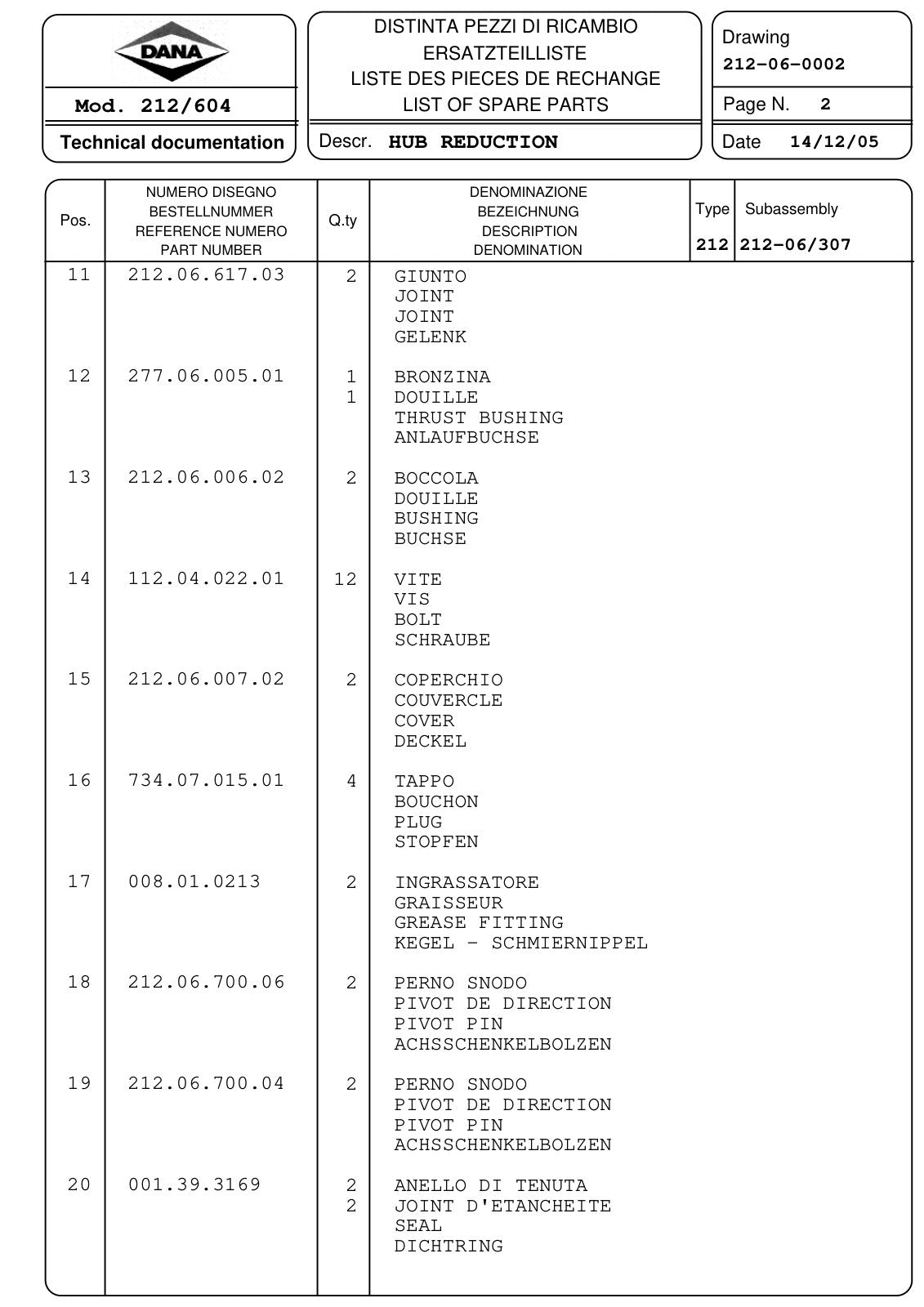

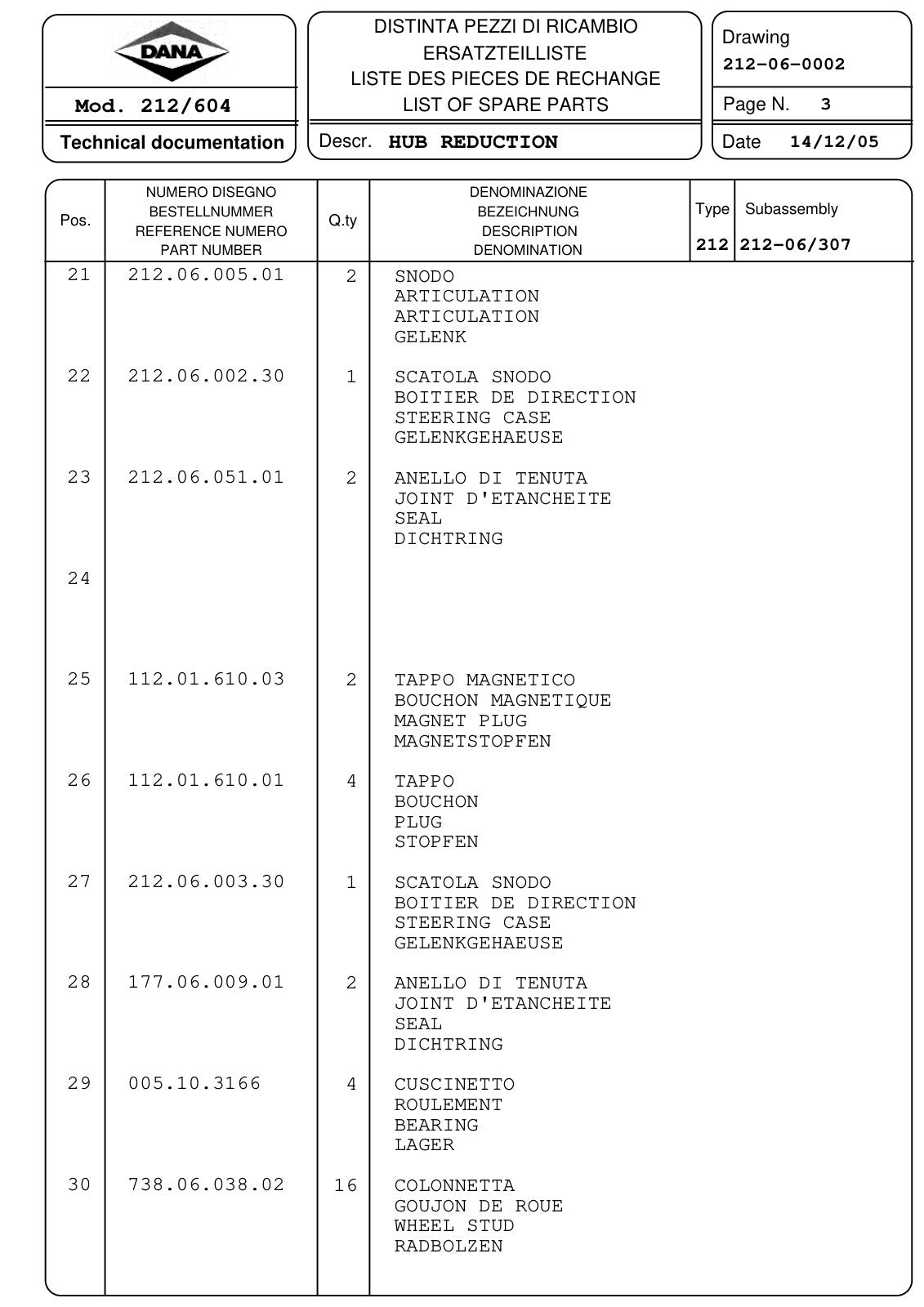

Dana Spicer 212/604 Steering Axle Parts Catalog for Kramer 3006-3207-4107 20KM/H Telehandler – digital parts catalog (25 pages, language: Italian, French, English, German, format: PDF). The file is available to download after purchase; nothing is shipped.

Before ordering, compare the Dana / Spicer type number in the title (for example 212/109) with the TYPE number on the identification plate of your axle. Not sure this is the right catalog? Contact us with the plate data and your machine model.

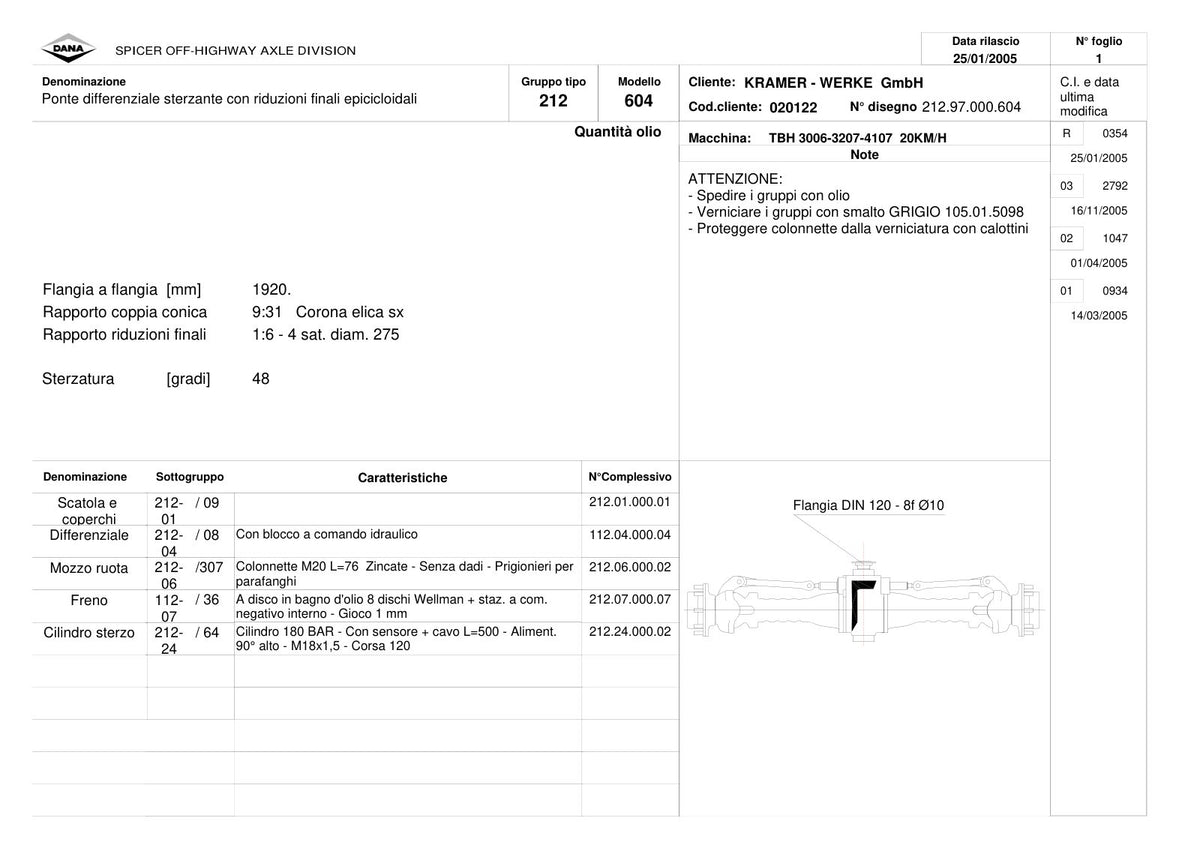

Original Dana (Spicer Off-Highway, formerly Clark-Hurth) spare parts list for the steering drive axle type 212/604, as built for Kramer 3006-3207-4107 20KM/H Telehandler. Dana Spicer axles from Arco, Italy are fitted to telehandlers, tractors, wheeled excavators, backhoe loaders and other machines from many manufacturers; the type number on the axle identification plate tells you exactly which version you have. The catalog starts with the assembly sheet (ratios, brake, differential and steering data), followed by exploded-view drawings of each sub-assembly and parts lists with Dana part numbers, quantities and descriptions in Italian, French, English and German.

Dana / Spicer type: 212/604
Component: Steering drive axle
Customer: Kramer
Machine: 3006-3207-4107 20KM/H Telehandler
Catalog date: 14.12.2005

Contents

Wheel hub and epicyclic final drive
Axle housing and covers
Differential
Brakes
Steering cylinder
Bevel gear set

DETAILS
Size: 0.9 MB
Format: PDF
Language: Italian, French, English, German
Brand: Dana Spicer
number of pages:25
Type of document: Parts catalog

Before you buy

Contents vary by manual. Check the product description for the models covered, document sections, language and file format. If you need a specific diagram or procedure, contact us before purchasing.

View full details
