Dana Spicer 212/263 Steering Axle Parts Catalog for Manitou Telehandler

Name: Dana Spicer 212/263 Steering Axle Parts Catalog for Manitou Telehandler
Brand: Dana
SKU: DANA-212-263-MANITOU
Price: 15.0 EUR
Availability: InStock

€15,00 EUR

Tax included.

Digital download. Your access link is provided after payment on the order confirmation page and/or by email. No physical item is shipped.

Product variants

Quantity

I agree to the Terms of Service.

Product description

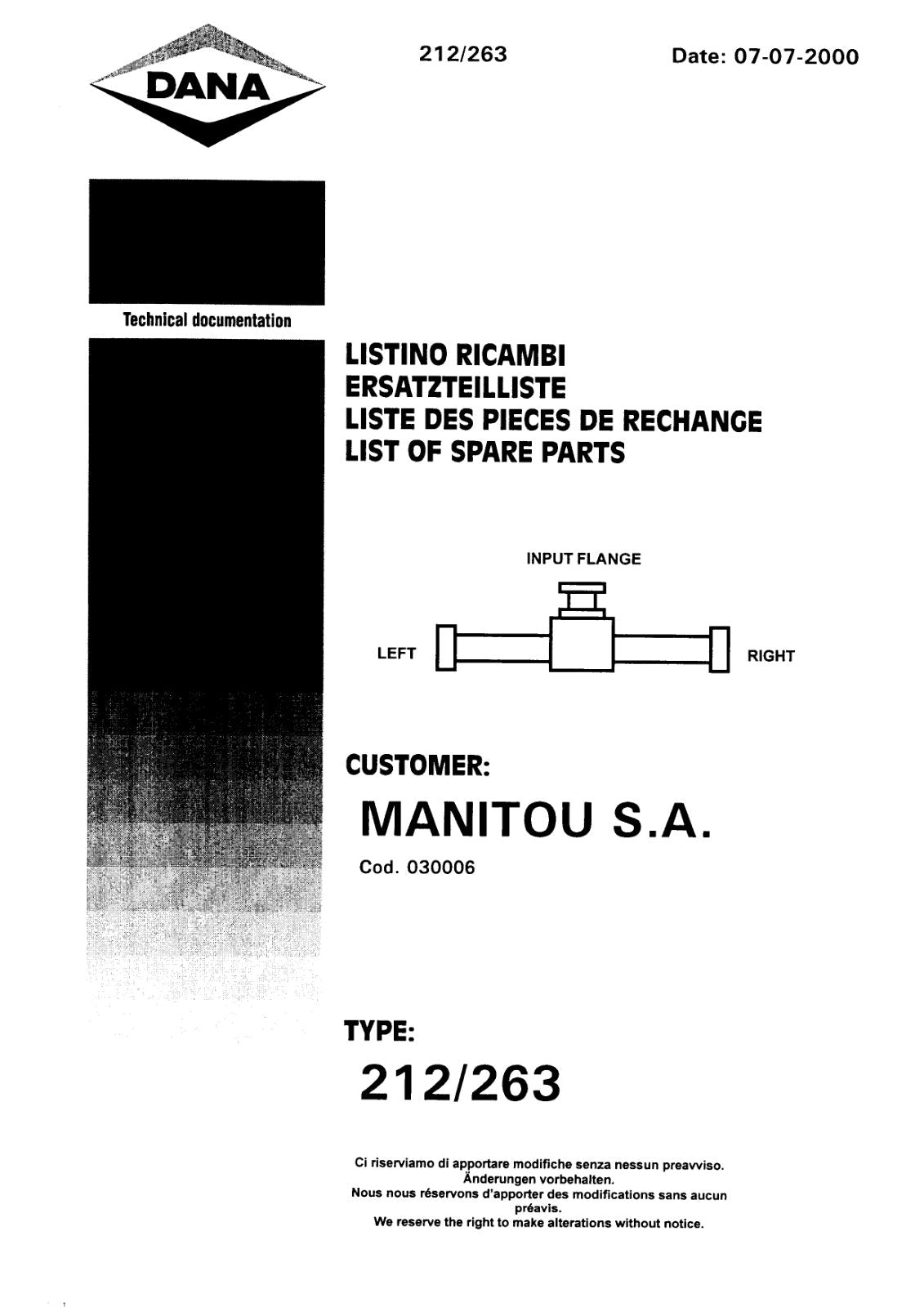

Dana Spicer 212/263 Steering Axle Parts Catalog for Manitou Telehandler – digital parts catalog (22 pages, language: Italian, French, English, German, format: PDF). The file is available to download after purchase; nothing is shipped.

Before ordering, compare the Dana / Spicer type number in the title (for example 212/109) with the TYPE number on the identification plate of your axle. Not sure this is the right catalog? Contact us with the plate data and your machine model.

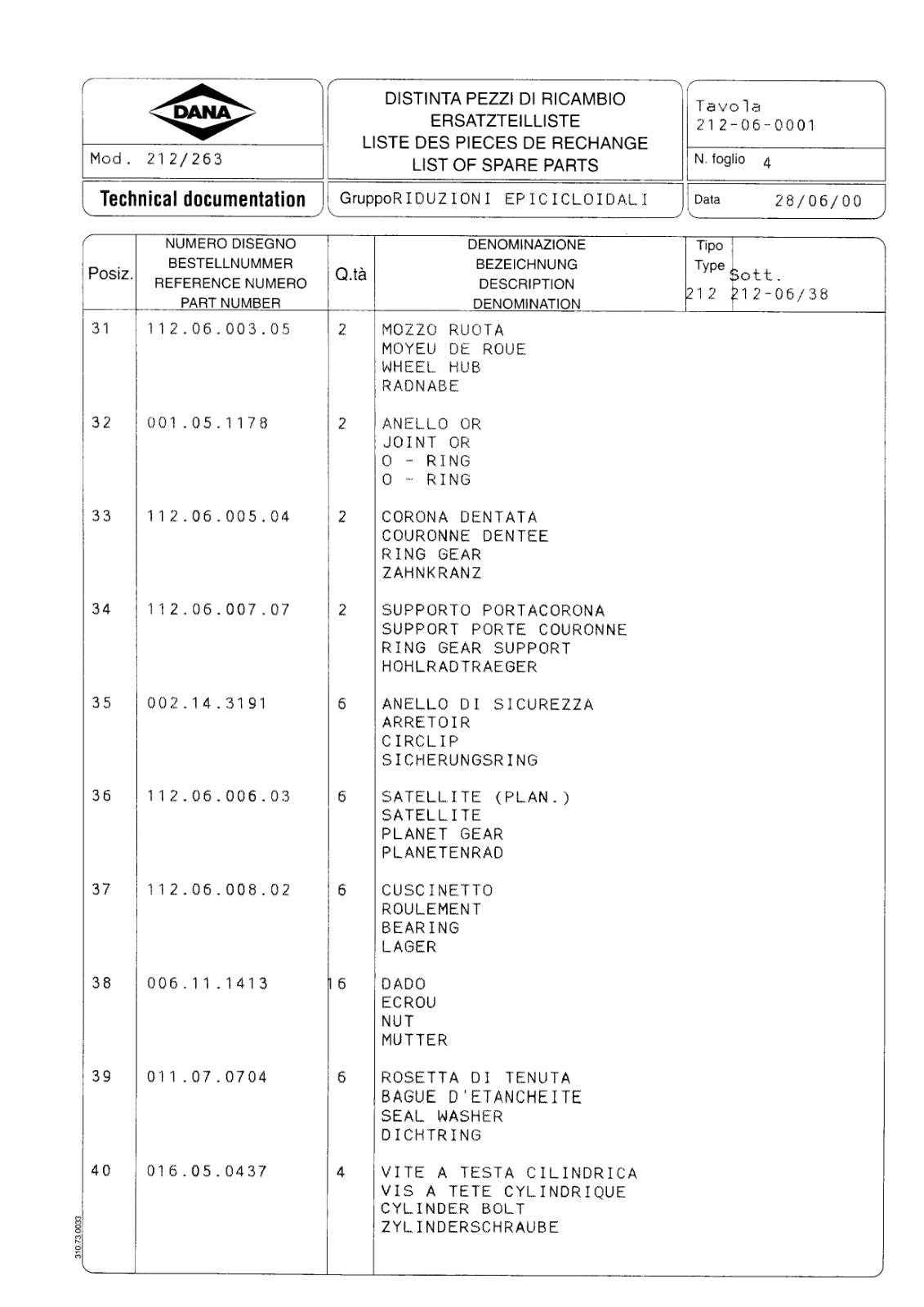

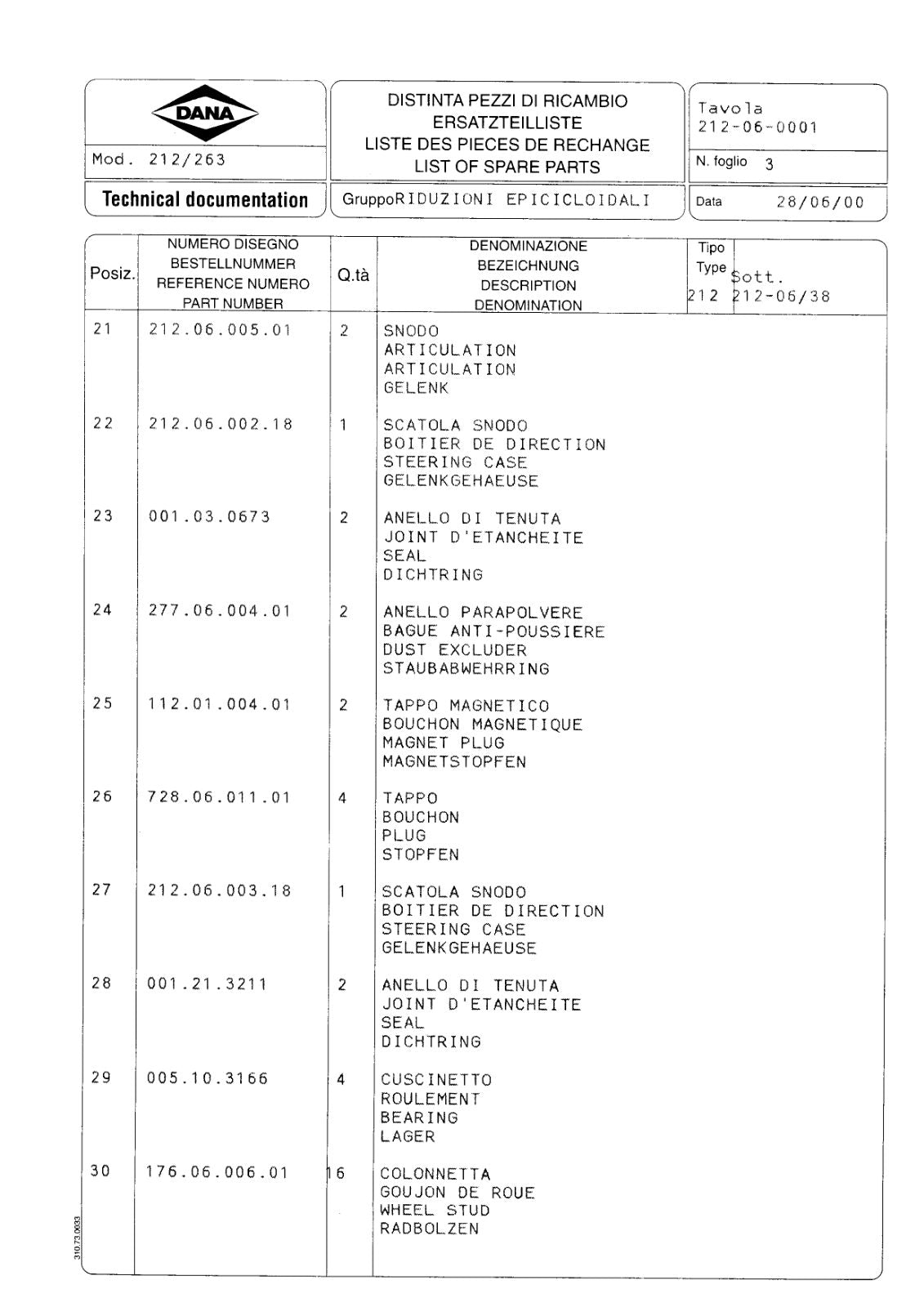

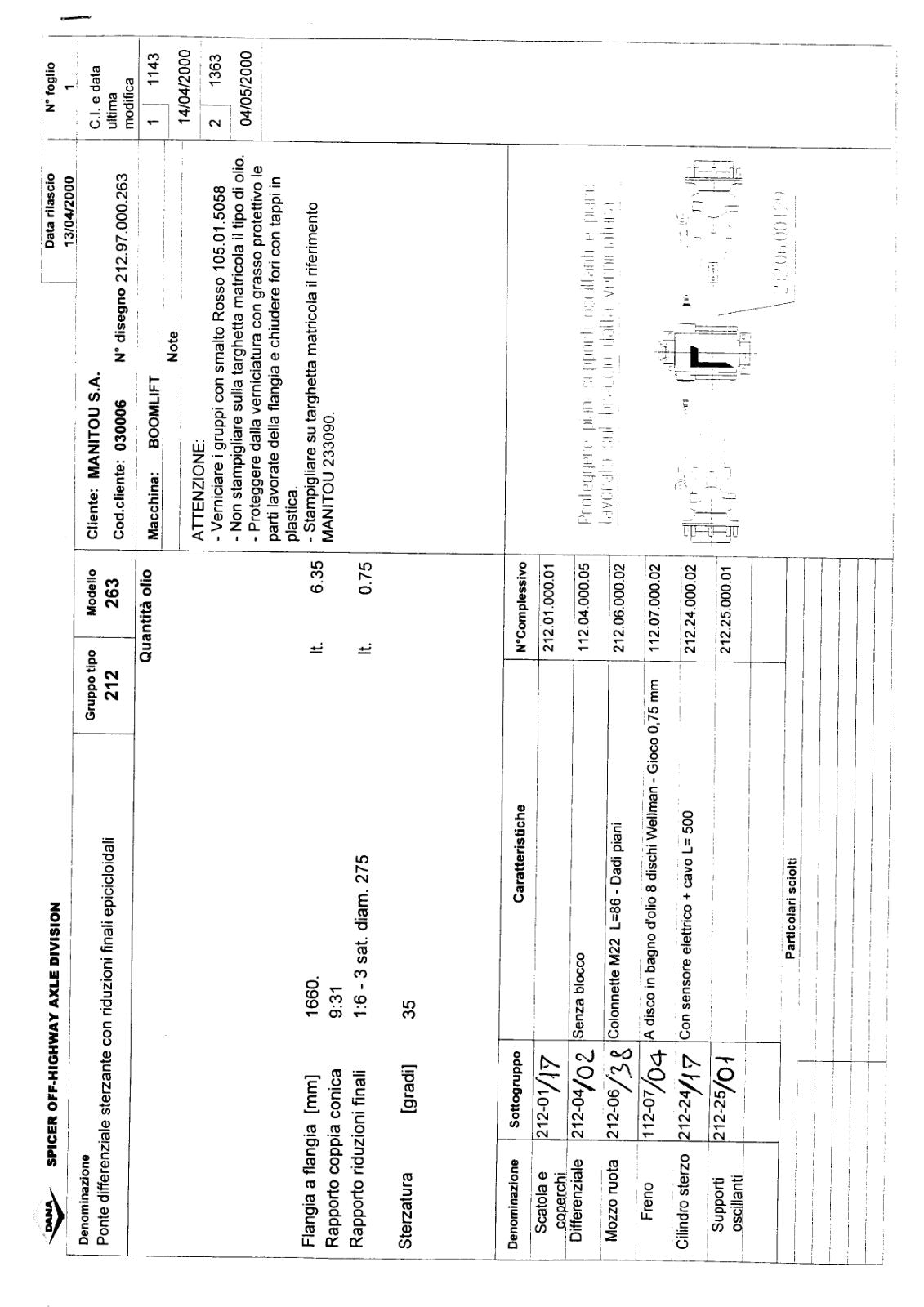

Original Dana (Spicer Off-Highway, formerly Clark-Hurth) spare parts list for the steering drive axle type 212/263, as built for Manitou Telehandler. Dana Spicer axles from Arco, Italy are fitted to telehandlers, tractors, wheeled excavators, backhoe loaders and other machines from many manufacturers; the type number on the axle identification plate tells you exactly which version you have. The catalog starts with the assembly sheet (ratios, brake, differential and steering data), followed by exploded-view drawings of each sub-assembly and parts lists with Dana part numbers, quantities and descriptions in Italian, French, English and German.

Dana / Spicer type: 212/263
Component: Steering drive axle
Customer: Manitou
Machine: Telehandler
Catalog date: 07.07.2000

Contents

Wheel hub and epicyclic final drive
Loose parts
Bevel gear set
Differential
Steering cylinder
Axle housing and covers
Brakes
Oscillating supports

DETAILS
Size: 0.8 MB
Format: PDF
Language: Italian, French, English, German
Brand: Dana Spicer
number of pages:22
Type of document: Parts catalog
