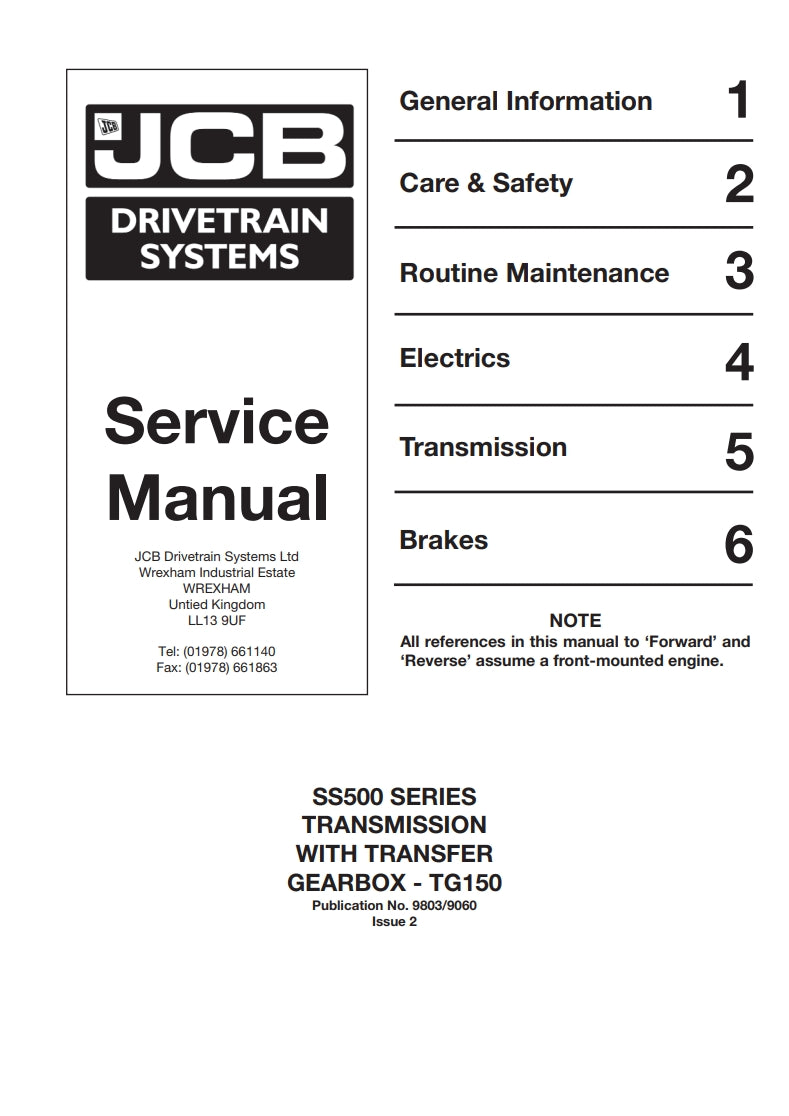

JCB DRIVETRAIN SYSTEM Service Manual

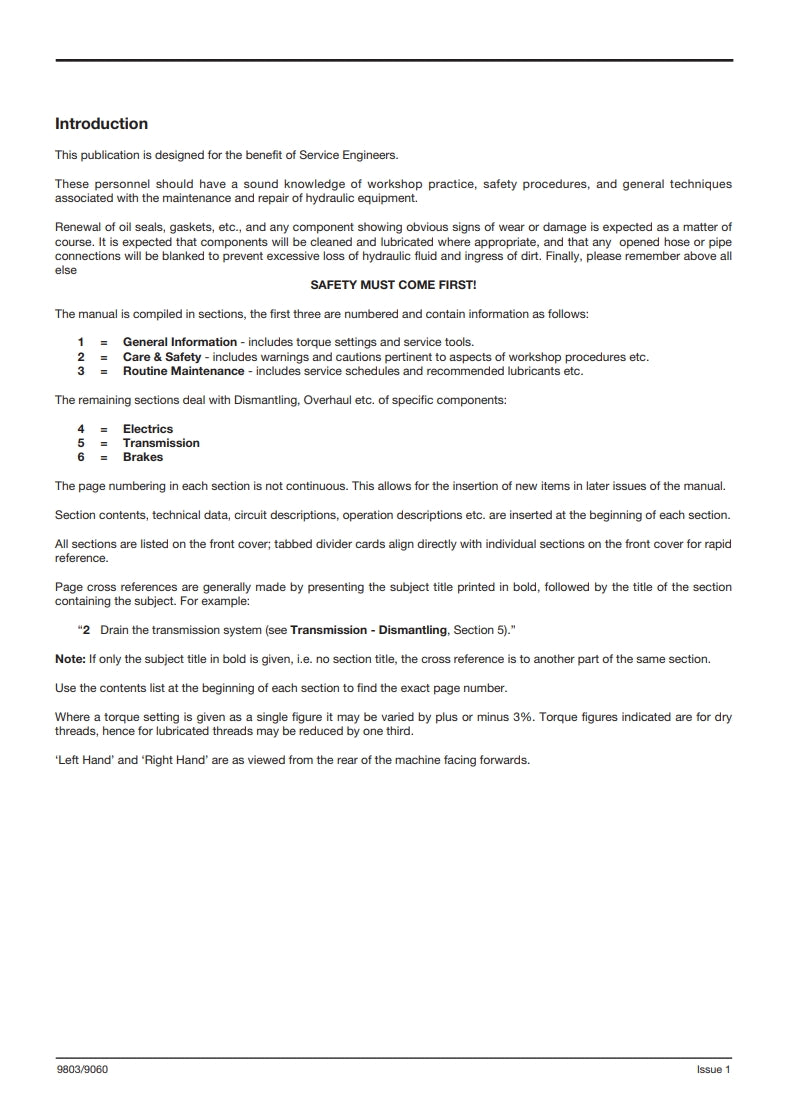

Introduction
This publication is designed for the benefit of Service Engineers.
These personnel should have a sound knowledge of workshop practice, safety procedures, and general techniques
associated with the maintenance and repair of hydraulic equipment.
Renewal of oil seals, gaskets, etc., and any component showing obvious signs of wear or damage is expected as a matter of
course. It is expected that components will be cleaned and lubricated where appropriate, and that any opened hose or pipe
connections will be blanked to prevent excessive loss of hydraulic fluid and ingress of dirt. Finally, please remember above all
else
SAFETY MUST COME FIRST!
The manual is compiled in sections, the first three are numbered and contain information as follows:

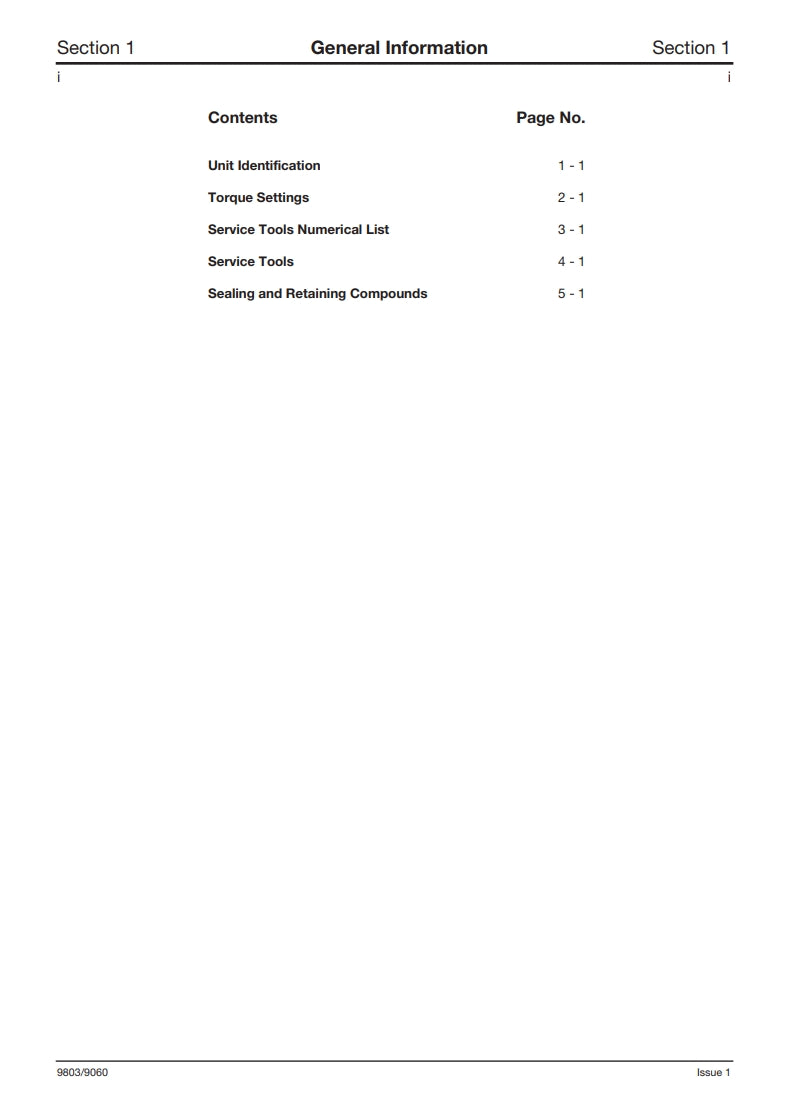

1 = General Information - includes torque settings and service tools.
2 = Care & Safety - includes warnings and cautions pertinent to aspects of workshop procedures etc.
3 = Routine Maintenance - includes service schedules and recommended lubricants etc.
The remaining sections deal with Dismantling, Overhaul etc. of specific components:
4 = Electrics
5 = Transmission
6 = Brakes
The page numbering in each section is not continuous. This allows for the insertion of new items in later issues of the manual.
Section contents, technical data, circuit descriptions, operation descriptions etc. are inserted at the beginning of each section.
All sections are listed on the front cover; tabbed divider cards align directly with individual sections on the front cover for rapid
reference.

DETAILS
Size: 3.9MB
Format: PDF
Language: English
Brand: JCB
number of pages:116
Type of document: Workshop manual

Comprehensive step-by-step repair guides
Wiring diagrams & schematics for easy troubleshooting
Expert maintenance tips to extend equipment lifespan
Clear illustrations for better understanding
Save time and money with DIY repairs
